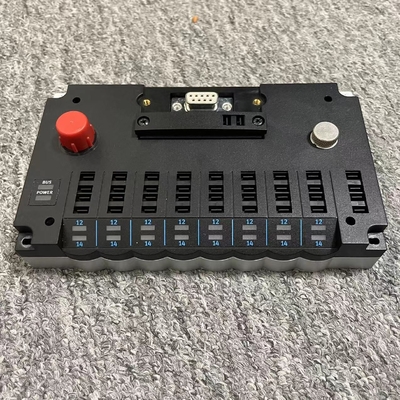

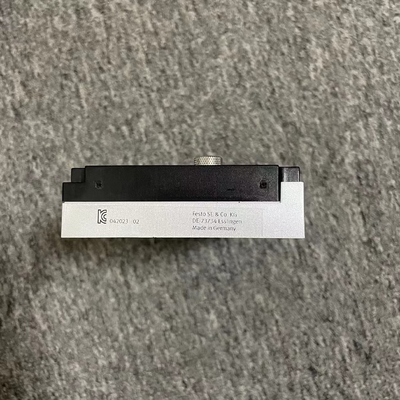

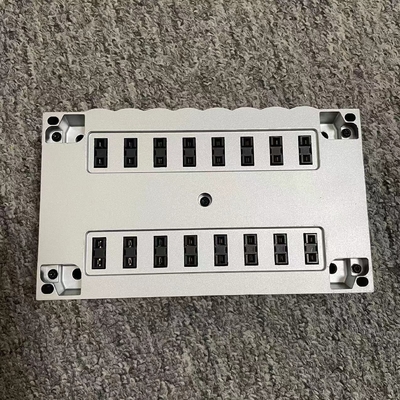

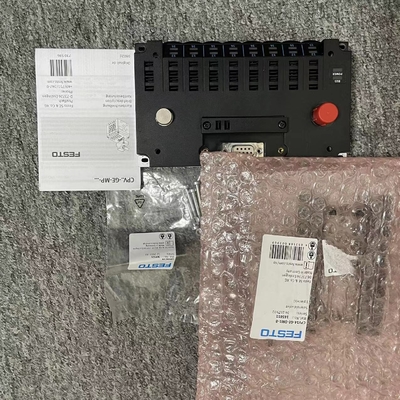

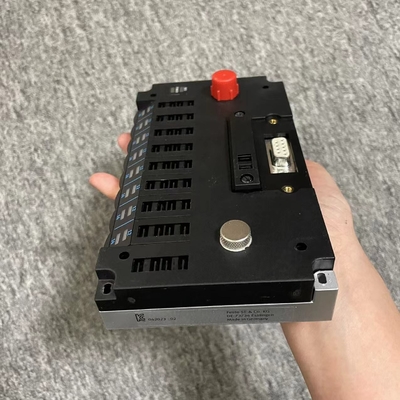

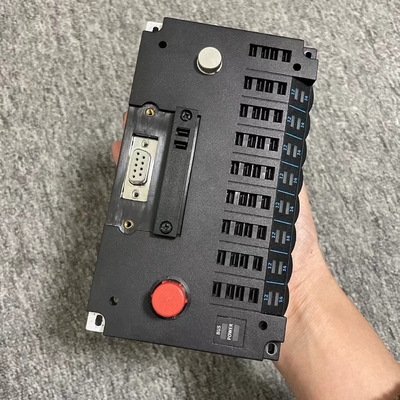

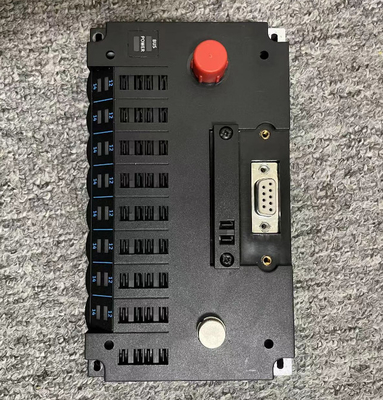

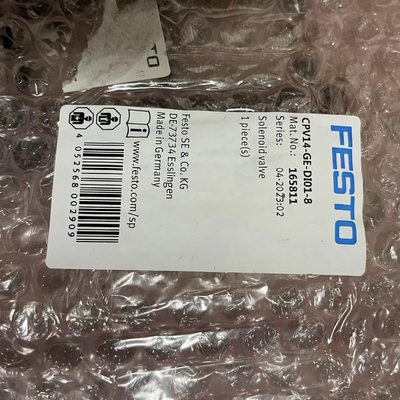

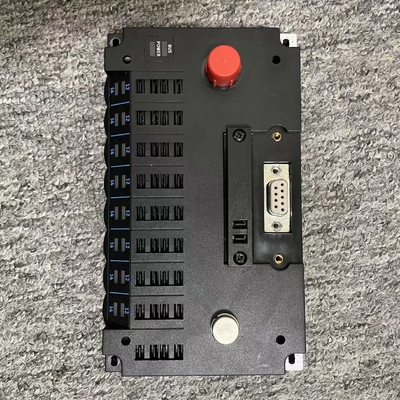

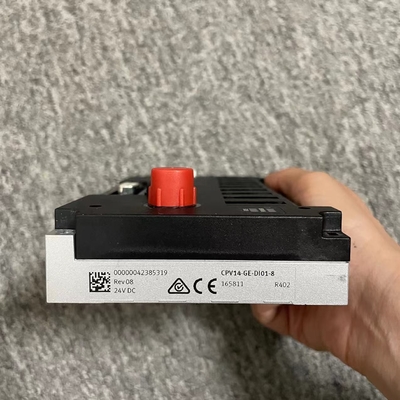

High Quality Original Electrical Interface Festor CPV14-GE-DI01-8 165811 Stock

CP string expansion yes 16 inputs 8 outputs (or 16 pneumatic valves) Fieldbus interface Optionally: Socket and plug, M12x1, 5-pin, B-coded Sub-D, 9-pin, socket Device-specific diagnostics Via device-specific diagnostics (DPV0) Missing module on CP string extension Short circuit/overload of outputs Undervoltage of outputs Sensor power undervoltage Undervoltage of pneumatic valves Communication types Cyclic communication Configuration support GSD file and bitmaps Max. no. of solenoid coils with string expansion 32 Max. no. of solenoid coils 16 Reverse polarity protection for all electrical connections Baud rate 9.6 kBd ... 12 MBaud Automatic detection DC operating voltage range 20.4 V ... 26.4 V Max. no. of outputs (16 valve coils omitted) 8 Max. number of inputs 16 Nominal operating voltage DC 24 V Power failure buffering 10 ms Residual ripple 4 Vss Current consumption at load nominal operating voltage Depends on pneumatic valve type Current consumption at nominal operating voltage Electronics: <= 100 mA Sensor supply: depends on sensor LABS (PWIS) conformity VDMA24364-B1/B2-L Storage temperature -20 °C ... 70 °C Degree of protection IP65 Ambient temperature -5 °C ... 50 °C Certification c UL us - Recognized (OL) Product weight 351 g Addressing range 1 ... 125 Setting via switch module Fieldbus certification PNO Galvanic isolation fieldbus interface Optocouple

LED display (bus-specific) BUS: communication and configuration error LED display (product-specific) 12/14: switching status of pneumatic valves POWER: operating voltage for electronics and load supply Product identification Product line: 4: pneumatic valves Cover material PA-reinforced Seals material CR NBR Housing material Die-cast aluminum Note on materials RoHS-compliant
