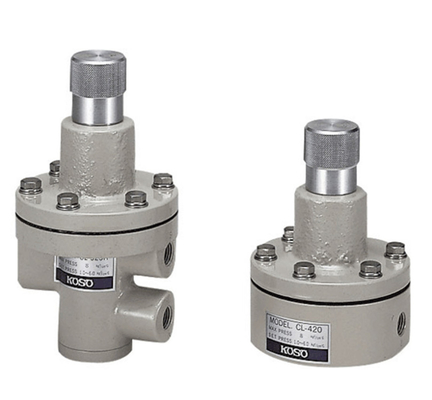

Aluminum Control Valve Positioner
|Place of Origin
|CCC CE ISO
|Minimum Order Quantity
|Strong carton Packing with export standard. If each model more than 300PCS can make colored strong carton
|14 work days
|L/C, T/T, Western Union, D/P
|1000Piece/Pieces per Month
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|For Single Acting Actuator
|Repeatability : 0.2% Of FS.
|Explosion Type : -20 To 60°
|500Ω At 20mA (Input Voltage Less Than 10V)
|Linear (Desired Characteristic Settable)
|140 To 700kPa
Aluminum control valve Positioner,
control valve Positioner 20mA,
20mA smart valve positioner
|Output air pressure 50%
|5Nl/min at 140kPa air supply
|15Nl/min at 400kPa air supply
|apacity when output is atmospheric venting
|175Nl/min at 140kPa air supply
|400Nl/min at 400kPa air supply
This is an intelligent electropneumatic positioner that conforms to field equipment communication standard HART, which is a world standard.
It permits easy and positive digital adjustment of positioner response characteristics and zero and span from a host equipment mounting DDL or from an HHC (Hand Held Communicator). Furthermore, with 3-key calibration executed by a pushbutton built in the positioner, it is possible to set principal items by unit positioner, without need for HHC or the like.
It can be mounted to an actuator of any of single action type, double action type, rotary type and linear type, and it operates with a 4-20mA instrumentation signal and compressed air. Therefore, it is a positioner of broad universality, and it is capable of transmitting self-diagnosis information and others besides valve opening and open/close limit signals to a host equipment that conforms to HART.
KOSO is now developing FF dealing equipment, which digitalizes up to control signals and conforms to Fieldbus Foundation Standards.
|Single and double acting actuators
|4 to 20mA DC (adjustable to 1/4 split range)
|500Ω at 20mA (Input voltage less than 10V)
|Linear (Desired characteristic settable)
Single acting and double acting types are available
|140 to 700kPa
|Output air pressure 50%
5Nl/min at 140kPa air supply
15Nl/min at 400kPa air supply
|Capacity when output is atmospheric venting
175Nl/min at 140kPa air supply
400Nl/min at 400kPa air supply
|For single acting actuator
Linearity : +/-1.0% of FS.
Hysteresis : 0.5% of FS.
Response level : 0.1% of FS.
Repeatability : 0.2% of FS.
|For double acting actuator
Linearity : +/-1.5% of FS.
Hysteresis : 0.8% of FS.
Response level : 0.2% of FS.
Repeatability : 0.3% of FS.
|The above represents the performance of the positioner on an actuator without a valve. For the performance of the complete unit with a valve and an actuator, see KOSO STANDARD SPECIFICATION.
|1 button calibration
Calibration by positioner alone.
with Note PC or Disktop PC
|Self diagnosis items
|Air supply check/Eath unit's function check/Over load check
Fail position for breakdown selectable
|Standard type : -20 to 80°, Explosion type : -20 to 60°
|Ambient humidity range
|10 to 90% RH
|Weather proof type (IP65), Explosion proof type (ExdCT6)
|Epoxy resin group paint
|Body : Dark green, Cover : Light gray
|Available upon request
|4 to 20mA 2-Wire type
Power source required in addition to input signal.
Open collector type
|Self diagnosis indication
|diagnosis result on LED
Separate power supply required
