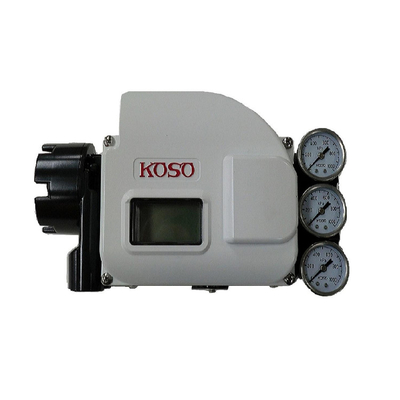

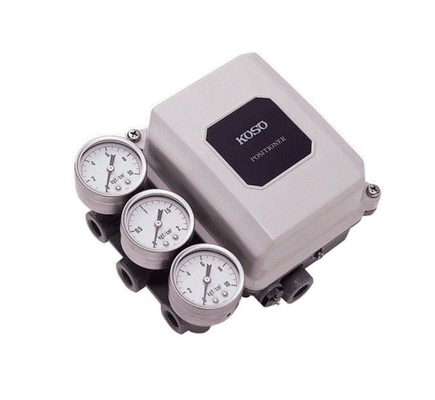

KGP5000 Pneumatic Valve Positioner

Place of Origin Japan
Brand Name koso
Certification CCC CE ISO
Model Number KGP5000 SERIES
Minimum Order Quantity 1
Price $1000 - $1560/pc
Packaging Details Strong carton Packing with export standard. If each model more than 300PCS can make colored strong carton
Delivery Time 10 work days
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 500/PCS/Mouth

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name KOSO KGP5000 SERIES Smart Valve Positioner Input Signal 4~20mA Analog Signal Or Digit Signal
Travel 10~100mm(60~90°) Air Supply 0.2MPa~0.55MPa
Wiring Connection G 1/2 Air Connection Rc 1/4
High Light

KGP5000 Pneumatic Valve Positioner


Pneumatic Valve Positioner 0.2MPa


0.2MPa smart valve positioner

You can tick the products you need and communicate with us in the message board.
Warranty: 1 YEAR
Customized support: OEM
Limit of intrinsic error: ±1.0%
Air consumption: ≤0.6NL/min
Input resistance: 380
Ambient humidity range 10 90% RH
Leave a Message
Warranty: 1 YEAR
Product Description

KGP5000 series smart valve positioner is a control device mounted on the pneumatic actuator for control valve, which positions a control valve according to a 4 to 20mA electric input signal from a higher-level control system or a control device.

Position feedback control system which receives feedback signal mapped to the desired valve travel and compares both input signal and feedback signal enables accurate positioning of a control valve.

In addition, it is possible to use this positioner in order to operate various types of pneumatic actuator such as single and double acting, linear and rotary motion actuators.

Furthermore, the positioner utilizing digital techniques performs the functions of advanced PID controller, local user interface using LCD, diagnostics utilizing sensing techniques with potentiometers and internal pressure sensors.

Such features enable an easy installation and calibration, an effective monitoring and an efficient process management relevant to operations and maintenance.


KGP5000 Pneumatic Valve Positioner 0


  Large-screen LCD & easy configuration by 'Full autotune'
    * Local user interface with large graphic LCD by itself enables performing all the operations such as setup, adjustment, status monitoring, execution of diagnostics, etc.


KGP5000 Pneumatic Valve Positioner 1

KGP5000 Pneumatic Valve Positioner 2

Attachment to several kinds and types of actuators

KGP5000 Pneumatic Valve Positioner 3

Input signal 4~20mADC Compliance voltage@20mA
Model KGP5000:8.6VDC(Input impedance 430Ohm)
Model KGP5003:9.6VDC(Input impedance 480Ohm)
Split range available
Linear / EQ / QO / User custom setup (19 points)
Position transmitter
4~20mADC Power supply 17~31VDC
Alarm output *according to NAMUR043
Attachment Linear / Rotary / actuators according to IEC60534-6 VDI/VDE3845
Travel range Linear 12~250mm *Strokes above 250mm with special kits
Rotary 40~100deg
Action Single / Double *Pilot relay is available on direct acting only
Supply pressure 140~800kPa (1.4~8bar , 20~116psi)
Enclosure Housing
Protection code
Pneumatic connection
Electrical connection
Mounting threads
Aluminum die-casting with baked acrylic painting
IP66 (Common structure)
Rc1/4 or 1/4NPT
G1/2 , 1/2NPT or M20x1.5
4xM8, 4xM6
Weight 3.0kg(without pressure gauge block), 3.3kg(with pressure gauge block)
Non-explosion type
Explosion type
-40~80degC (-40~176degF)
According to each explosion standard
-20~70degC (-4~158degF)
Operating humidity
Air consumption Single acting type 6Nl/min or less@140kPa, 9Nl/min or less@300kPa
*at 50% position of full travel
Double acting type 16Nl/min or less@400kPa, 20Nl/min or less@550kPa
*at balance pressure
Maximum output
165Nl/min@140kPa, 290Nl/min@300kPa
370Nl/min@400kPa, 500Nl/min@550kPa
Accuracy   Position control Position transmitter output
Certificates and approvals Explosion protection Ex d IIC T6 Gb:TIIS(JIS), CCC(NEPSI)
Ex db IIC T6 Gb:IECEx
II 2 G Ex db IIC T6 Gb:ATEX
CE marking EMC directive(2014/30/EU)
RoHS directive(2011/65/EU)
HART communication approval HART7 *Model KGP5003 only
