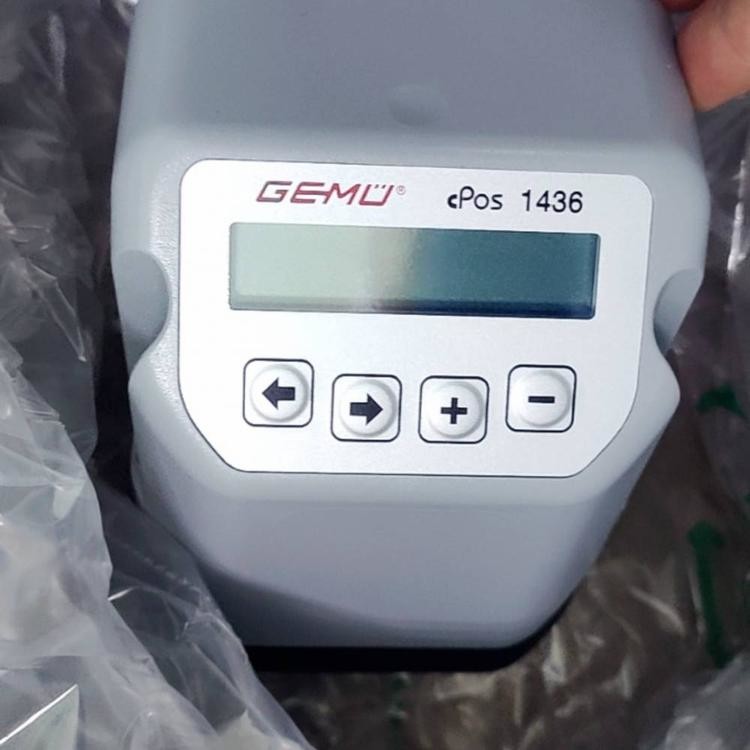

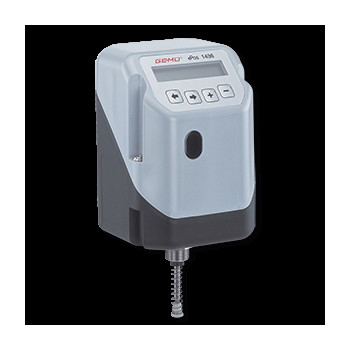

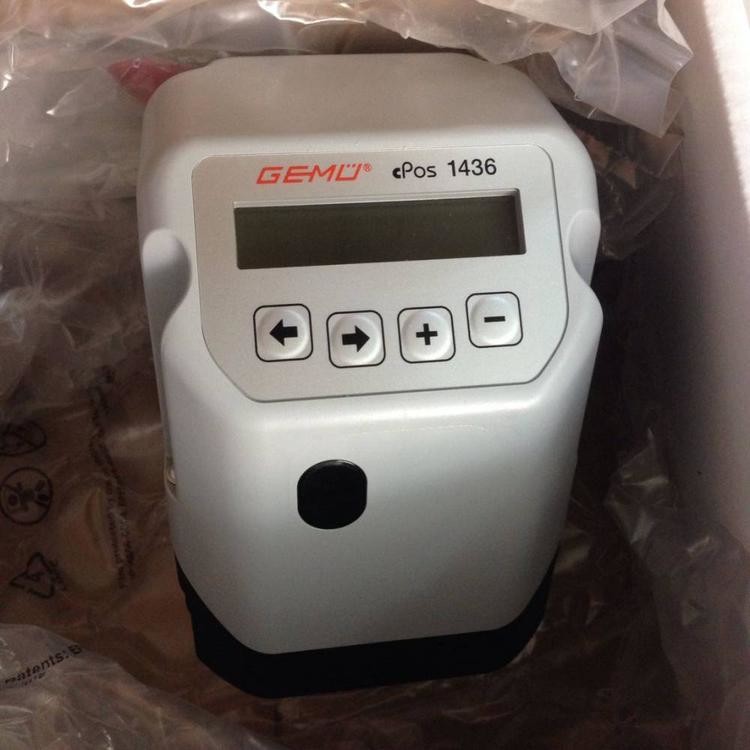

1436 CPOS Pneumatic Valve Positioner Intelligent Digital PP PSU

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xBody Material | PP; PSU | Ambient Temperature | 0 To 60 DegC |
---|---|---|---|
Addition | NAMUR | Air Supply | 1.4-7bar(20-105psig) |
Straight Stroke Range | 8-260mm(0.3-10.2in) | Angular Range | Up To 95 Degrees, Up To 300 Degrees When Optional |
Display | Multi - Language Graphics Full Text LCD Display, Led Display | Communication | FoxCom Digital Communications |
Highlight | 1436 CPOS Pneumatic Valve Positioner,Pneumatic Valve Positioner PP PSU,1436 Intelligent Digital Positioner |
1436 CPos digital electro-pneumatic positioner has an optional integrated process controller to control process valves
The intelligent valve actuator is controlled by microprocessor and receives the analog or digital signals of the control system to control the pneumatic control valve to achieve rapid positioning. The system, computer or handheld terminal can be used for configuration debugging, or the button on the panel can be used for field configuration. LCD display and LED display can provide valve operating status. It provides an effective means for predictive maintenance using valves. It has a high technology content and uses a number of technologies, including infrared function for wireless operation and configuration, LCD display that supports multi-language full text graphical display, and communication protocol for optional and automatic application of all processes. It also has the ability to record travel data and analyze it in powerful ways. All diagnostic features can be easily organized and displayed using valve positioner DTM (VALcare) software. In addition, the valve positioner DTM software uses all configuration and diagnostic data to edit and generate a "health" report for the valve.
Body material | PP; PSU |
Ambient temperature | 0 to 60 degC |
Addition | NAMUR |
The e 1436 cPos is a digital electro-pneumatic positioner with optionally integrated process controller for the control of pneumatically operated process valves. When using the optional process controller the signals from a process sensor (e.g. flow, level, pressure, temperature) are detected and the media adjusted according to the specified set value. The positioner has a solid housing with protected operating buttons and a LC display.
- Digital inputs (option) for variable function control for automation
- Fieldbus interfaces e.g. Profibus DP, DeviceNet (option)
- No air consumption when idle
- Simple mounting to various valve actuators
- Access rights via different user levels
- Our products are packed according to the international export packing standards for seaworthy packing: carton box, plastic bag, wooden or iron/steel pallet or container.
- We can also deliver our products carefully packed according to customer requirement. Please contact us for getting further details.
- Packaging includes the full set of documents and (if necessary) operate maintenance and engine operate manual, spare parts list and set of inspection certificate issued by manufacturer.
