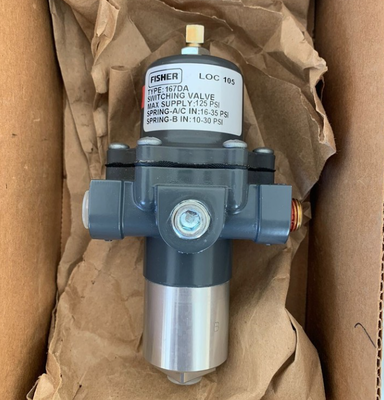

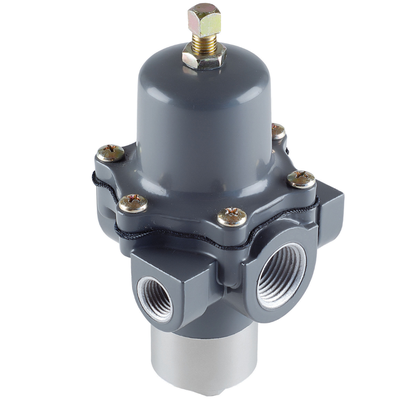

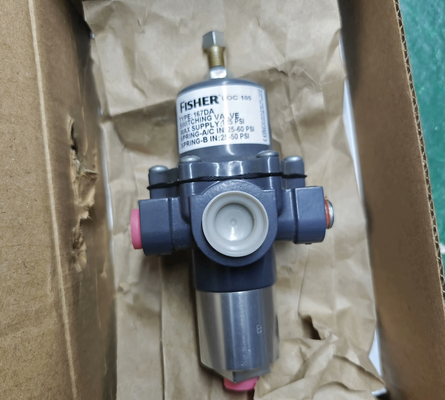

Fisher 167DA Three-Way Pneumatic Switching Valve with 400 psig Maximum Inlet Pressure and Stainless Steel Bolting

  • Fisher 167DA Three-Way Pneumatic Switching Valve with 400 psig Maximum Inlet Pressure and Stainless Steel Bolting
  • Fisher 167DA Three-Way Pneumatic Switching Valve with 400 psig Maximum Inlet Pressure and Stainless Steel Bolting
  • Fisher 167DA Three-Way Pneumatic Switching Valve with 400 psig Maximum Inlet Pressure and Stainless Steel Bolting
  • Fisher 167DA Three-Way Pneumatic Switching Valve with 400 psig Maximum Inlet Pressure and Stainless Steel Bolting
Place of Origin China
Model Number 167DA 15/T2
Minimum Order Quantity 2
Price USD＄405
Packaging Details Original packaging
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 10PC
Product Details
Highlight

Fisherr 167DA pneumatic switching valve

,

original hold position valve

,

Fisherr 167DA control valve with warranty
Leave a Message
Product Description

Specifications

Available Constructions

167D and 167DS: two-way switching valves
167DA and 167DAS: three-way switching valves

Body Size and End Connection Style

Ports A and C: 1/4 or 1/2 NPT
Vent and Control Pressure Connections (Port D) and Port B: 1/4 NPT

Maximum Inlet Pressure (Body Rating)

400 psig / 27,6 bar?

Temperature Capabilities

Standard Bolting: -20 to 180°F / -29 to 82°C
Stainless Steel Bolting: -40 to 180°F / -40 to 82°C
FKM Trim: 0 to 300°F / -18 to 149°C

Pressure Registration

Internal

Approximate Weights

Types 167D and 167DA: 1.2 Pounds / 0,5 kg
Types 167DS and 167DAS: 2.8 Pounds / 1 kg

Additional Technical Data

For additional technical information, contact your local Sales Office or refer to technical documentation.
