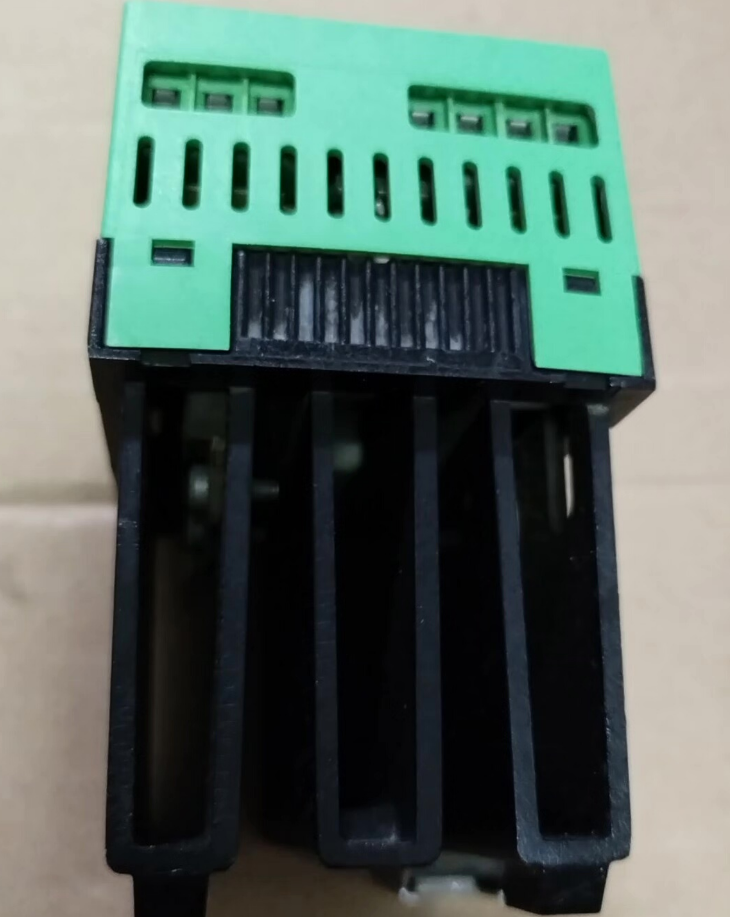

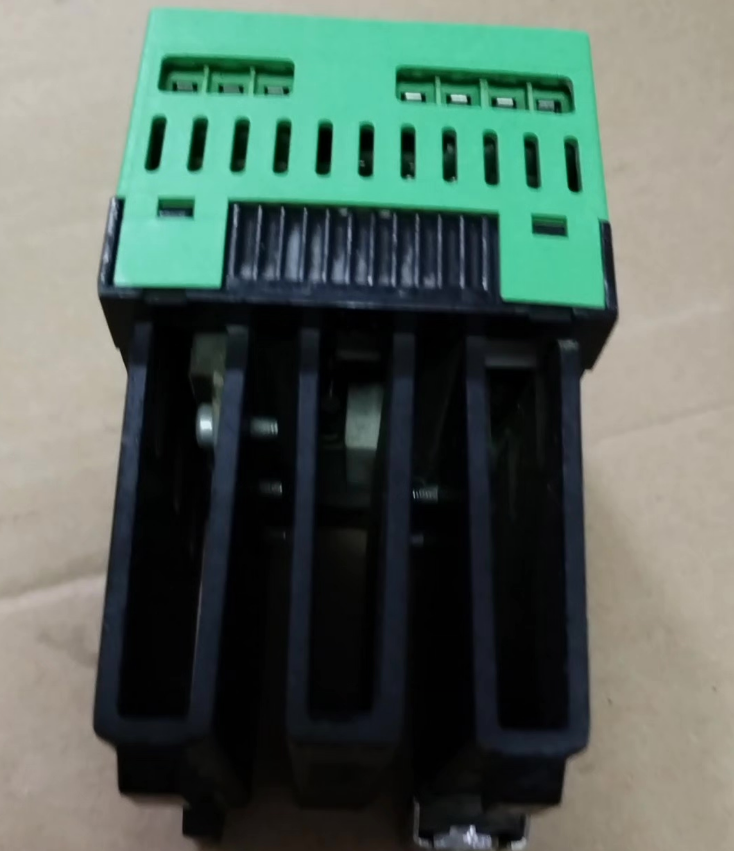

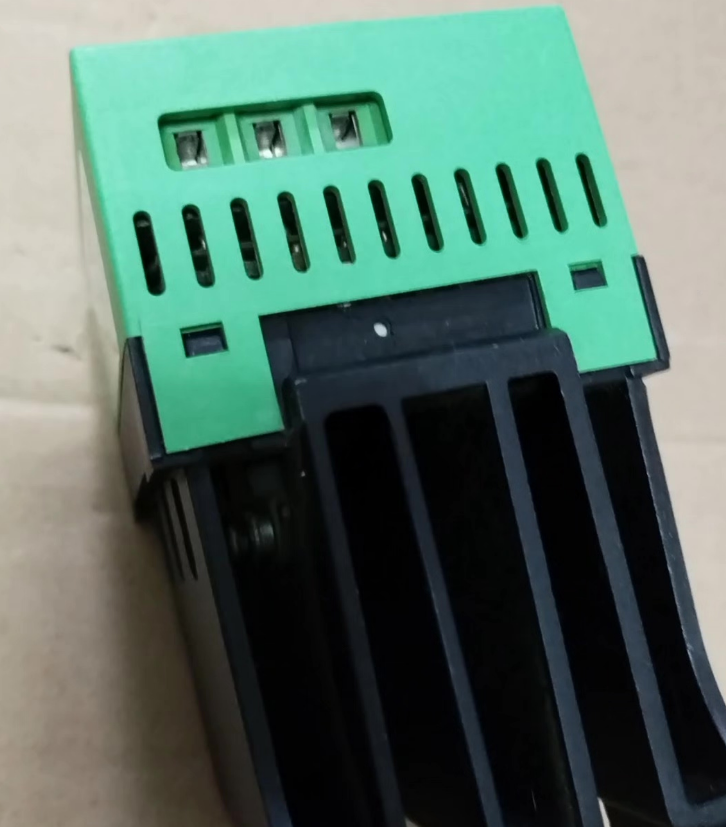

New Original Solid State Relay Phoenix 2964186 - In Stock

  • New Original Solid State Relay Phoenix 2964186 - In Stock
  • New Original Solid State Relay Phoenix 2964186 - In Stock
  • New Original Solid State Relay Phoenix 2964186 - In Stock
  • New Original Solid State Relay Phoenix 2964186 - In Stock
  • New Original Solid State Relay Phoenix 2964186 - In Stock
Place of Origin Germany
Brand Name Phoenix
Model Number 2964186
Minimum Order Quantity 2
Price USD＄1530
Packaging Details Original packaging
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 10PC
Product Details
Leave a Message
Product Description
Number of phases 3
Maximum power dissipation for nominal condition 13.5 W
Mains type 3-phase
Test voltage (Input/output) 2.5 kV (50 Hz, 60 s)
Reversing frequency ≤ 10 Hz (at cos φ = 0.5)
Control
Input name Control input right/left
Quiescent current 40 mA
Rated actuating voltage UC 24 V DC
Triggering voltage range 19.2 V DC ... 30 V DC
Voltage range with reference to UC 0.8 ... 1.25
0.8 ... 1.25
Rated actuating current IC 7.5 mA
Reaction time in normal load operation 50 ms
50 ms
Protective circuit Reverse polarity protection; Polarity protection diode
Surge protection
Operating voltage display Green LED
Error indication Red LED
Status display LED (yellow)
Switch-over frequency < 10 Hz (at cos φ > 0.5)
Switchover time RL/LL (turn-on time) 20 ms
