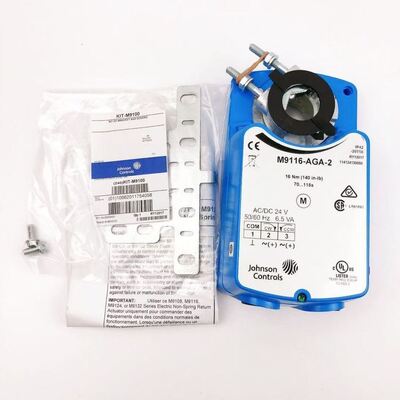

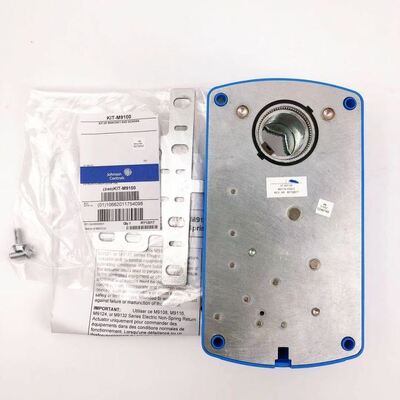

Original Johnson valve actuator M9116-GGA-2 for switch type with spring reset. Affordable and in stock.

Technical Specifications Product M9108, M9116, M9124, and M9132 Series Electric Non-Spring Return Actuators Power Requirements M9108-, M9116-AGx: 20 to 30 VAC at 50/60 Hz or 24 VDC ±10%; 6.5 VA supply, Class 2 All Other Models: 20 to 30 VAC at 50/60 Hz or 24 VDC ±10%; 7.5 VA supply, Class 2 Input Signal AGx: 24 VAC at 50/60 Hz or 24 VDC GGx, HGx: 0 (2) to 10 VDC, 0 (4) to 20 VDC, or 0 (4) to 20 mA JGx: Potentiometer value is 100 ohms minimum to 10,000 ohms maximum Input Signal Adjustments AGx: Factory Setting: Terminals 1 and 2, CW rotation Terminals 1 and 3, CCW rotation GGx, HGx (Voltage Input or Current Input): Factory Setting: 0 to 10 VDC, 0 to 20 mA, CW rotation with signal increase Jumper Selectable: 0 (2) to 10 VDC, 0 (4) to 20 VDC, or 0 (4) to 20 mA HGx Adjustable Zero: 0 to 6 VDC, 0 to 12 VDC, or 0 to 12 mA Adjustable Span: 2 to 10 VDC, 4 to 20 VDC, or 4 to 20 mA GGx, HGx, JGx: Action is jumper selectable Direct (CW) or Reverse (CCW) with signal increase. Input Impedance GGx, HGx: Voltage Input: 205,000 ohms for 0 (2) to 10 V and 410,000 ohms for 0 (4) to 20 V Current Input: 500 ohms JGx: Potentiometer Input: 1.8 megohms Feedback Signal AGD: 135 ohm feedback potentiometer AGE: 1,000 ohm feedback potentiometer GGx, HGx: 0 to 10 VDC or 2 to 10 VDC for 90° (10 VDC at 1 mA) Corresponds to input signal span selection. JGx: 0 to 10 VDC for 90° (10 VDC at 1 mA) Auxiliary Switch Rating xGC: Two Single-Pole, Double-Throw (SPDT) switches rated at 24 VAC 1.5 A inductive, 3.0 A resistive; 35.0 VA maximum per switch, Class 2 Mechanical Output (Running Torque) M9108 Series: 70 lb∙in (8 N∙m) for one unit; not intended for tandem use M9116 Series: 140 lb∙in (16 N∙m) for one unit M9116 (in tandem) 280 lb∙in (32 N∙m) for two units (GGx, HGx) M9124 Series: 210 lb∙in (24 N∙m) for one unit M9124 (in tandem) 420 lb∙in (48 N∙m) for two units (AGx, GGx, HGx) M9132 Series: 280 lb∙in (32 N∙m) for one unit, M9132 (in tandem) 560 lb∙in (64 N∙m) for two units (AGx, GGx) Audible Noise Rating 45 dBA at 1 m Rotation Range 0 to 90° in 5-degree increments, mechanically limited to 93° Rotation Time M9108: 30 seconds at 50% rated load, 25 to 50 seconds for 0 to 70 lb∙in (0 to 8 N∙m) M9116: 80 seconds at 50% rated load 70 to 115 seconds for 0 to 140 lb∙in (0 to 16 N∙m) M9124: 130 seconds at 50% rated load 115 to 175 seconds for 0 to 210 lb∙in (0 to 24 N∙m) M9132: 140 seconds at 50% rated load 115 to 205 seconds for 0 to 280 lb∙in (0 to 32 N∙m)
