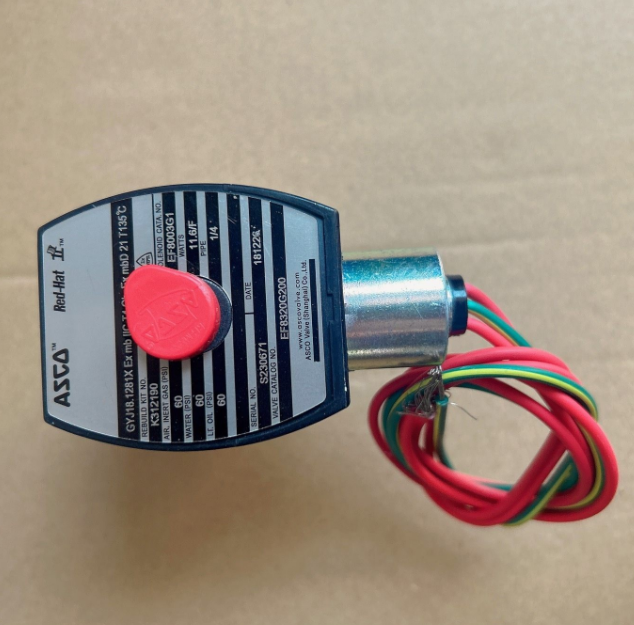

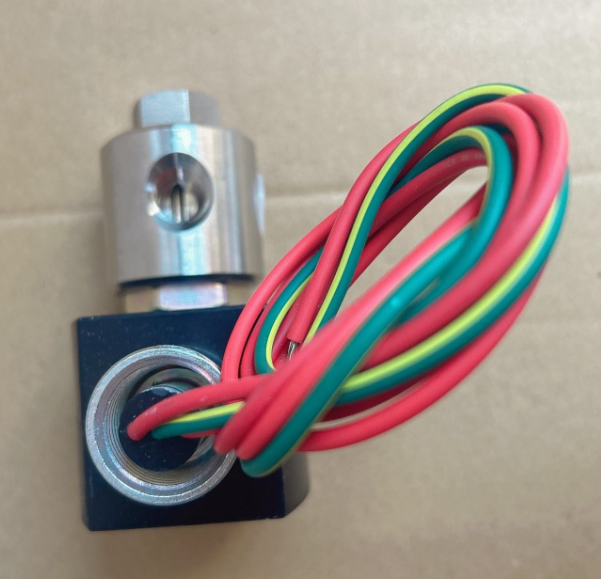

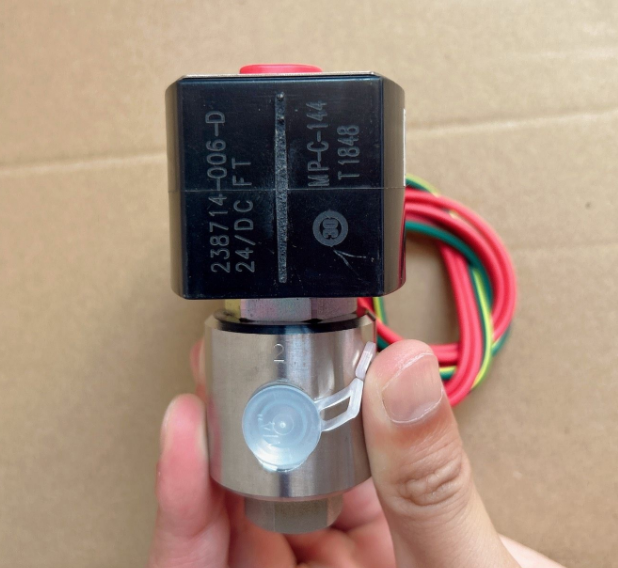

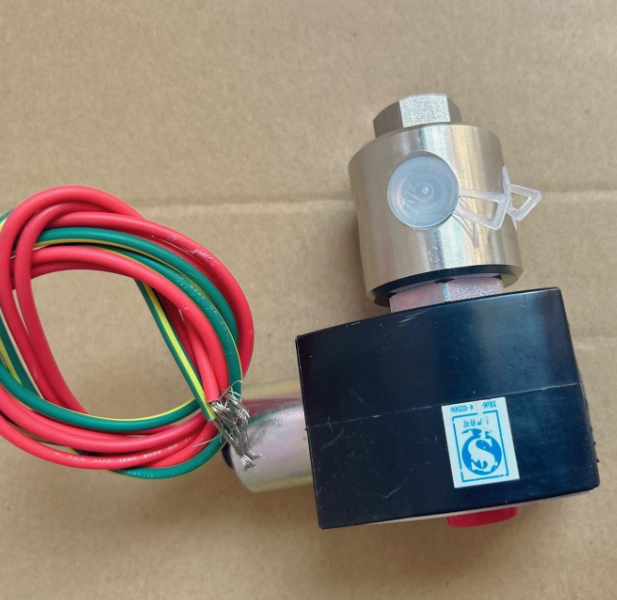

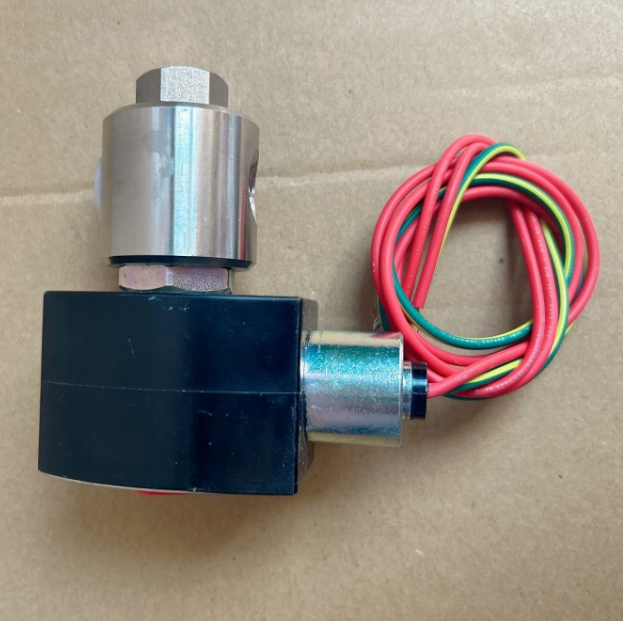

New, Original, Electromagnetic Valve ASCO EF8320G200, 24VDC, Valve Accessories, In Stock
| Place of Origin | China |
|---|---|
| Brand Name | ASCO |
| Model Number | EF8320G200 |
| Minimum Order Quantity | 2 |
| Price | USD＄175 |
| Packaging Details | original packing |
| Delivery Time | in stock |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10PC |
Product Details
Product Description
Specifications
| Body Material | Stainless Steel |
| Flow (Cv) / Flow (Kv) | 0.12 / 0.10 |
| Function | 3 way - 3/2 Universal |
| Pipe/Port Type & Size | NPT 1/4 |
| Valve Actuation | Solenoid - Direct Acting |
| Media | Air, Inert Gas, Water, Light Oil |
| Product Weight | 1.61 lbs |
| Order Code | 20946 |
| Kit Number | 312190 |
| Coil Class | FT |
| Coil Number | 238714-006-D |
| Min to Max Ambient Temperature | -40 - 104 °F |
| Min to Max Fluid Temperature | -40 - 150 °F |
| Orifice Size | 3/32 in |
| Voltage | 24 Volts DC |
| Watt Rating | 11.6 W |
| Item Status | Active |
| Lead Length | 18 inch |
| Carton Note | 1/4 X 3/32 3U S.S. 11.6/F DC |
| Seating Elastomer | NBR |
| Mounting Direction | Any |
