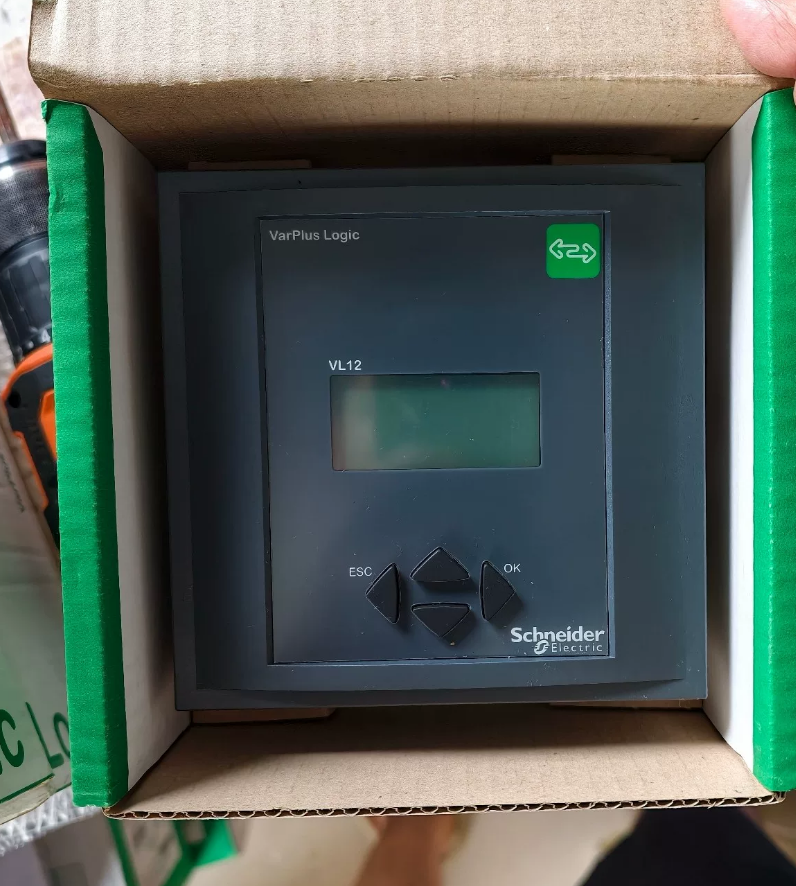

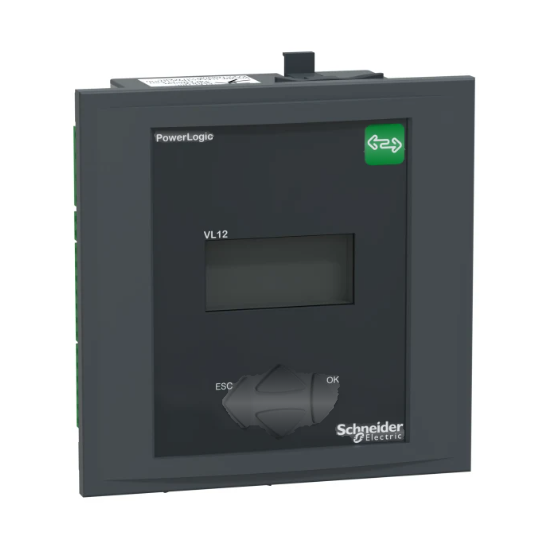

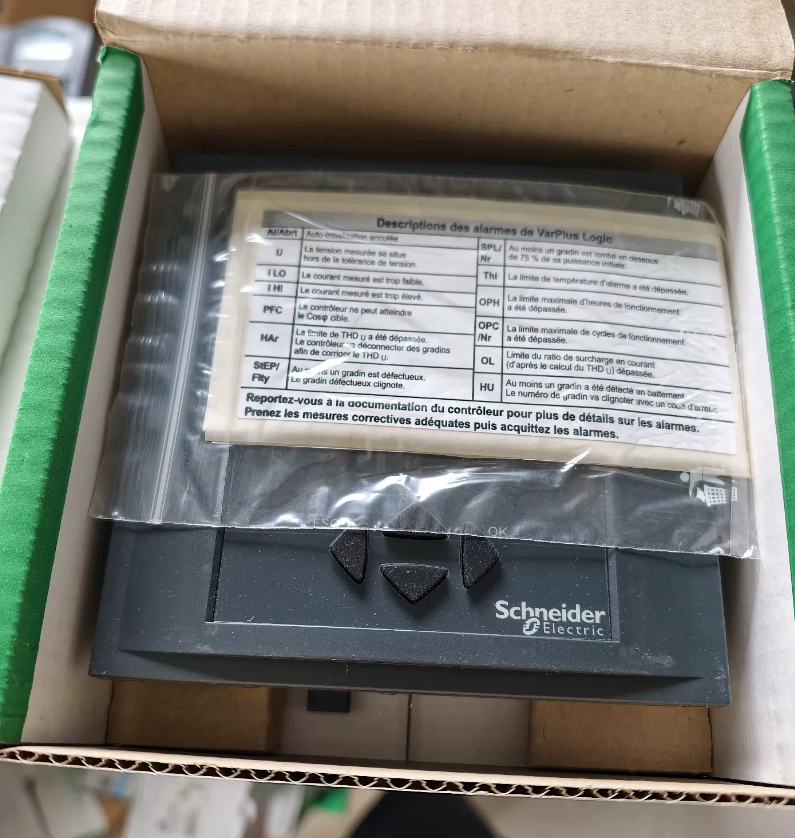

New original power factor controller SCHNEIDER VPL12N is in stock.

  • New original power factor controller SCHNEIDER VPL12N is in stock.
  • New original power factor controller SCHNEIDER VPL12N is in stock.
  • New original power factor controller SCHNEIDER VPL12N is in stock.
  • New original power factor controller SCHNEIDER VPL12N is in stock.
  • New original power factor controller SCHNEIDER VPL12N is in stock.
Place of Origin Germany
Brand Name SCHNEIDER
Model Number VPL12N
Minimum Order Quantity 2
Price USD＄520
Packaging Details original packing
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 10PC
Product Details
Leave a Message
Product Description



Specifications

Main
Range PowerLogic
Product name PowerLogic PFC Controller
Product or Component Type Power factor controller
Device short name VPL12
Complementary
Number of step output contacts 12
[Us] rated supply voltage 90...550 V AC
<= 999 kV AC with external VT
Measurement current 0…5 A
Measurement voltage 90…550 V AC 50/60 Hz
Operating Mode Manual or automatic
Number of quadrant operation for generator application 4
Device connection Communication Modbus RS485
Input function Switch 1 x dry contact
Colour code Front dark grey RAL 7016
Display Type Backlit LCD
Display size 56 x 25 mm
Function Available Manual programming
Automatic initialisation
Automatic detection
Advanced programming (expert)
Any step sequence
Metering type Power factor and displacement PF (signed, four quadrant)
Total current harmonic distortion THD (I)
Power factor average over lifetime
Temperature maximum
Phase current I1, I2, I3 RMS on load
Active power P, P1, P2, P3 on load
Reactive power Q, Q1, Q2, Q3 on load
Apparent power S, S1, S2, S3 on load
Voltage U21, U32, U13, V1, V2, V3 on load
Type of Measurement Capacitor current overload Irms/I1
Individual voltage harmonic
Power factor
Operating time
Cos φ
Ambient temperature inside the cubicle
Tan φ
Information Displayed Number of switching cycles per step
Individual step size in kVAr
Remaining step capacity in %
Type of alarms Step power loss < 75 %)message and alarm contact + step blocked
Step faultymessage and alarm contact + step blocked
High current > 6 A CT)message and alarm contact
Hunting (unstable regulation)message and alarm contact + step blocked
Low current < 15 mA CT)message and alarm contact
Overcompensationmessage and alarm contact
Capacitor current overload (Irms/I1) > 130 % I1)message and alarm contact + step switched off
Over Temperature 50 °C)message and alarm contact + step switched off
Over Temperature 30 °C)fan switch
Over Voltage +/- 10 %)message and alarm contact + control stopped
Total harmonic distortion > 7 %)message and alarm contact + step switched off
Data recording 5 alarms
Operational Hours alarm 100000 h without maintenance
Operational counter alarm 65000 cycles without maintenance
Input type Phase to phase
Phase to neutral
Insensitive to CT polarity
Insensitive to phase rotation polarity
Current input CT...X/5 A and X/1 A
Output type Control relay 0.2 A 110 V DC
Control relay 1 A 48 V DC
Control relay 2 A 400 V AC 50/60 Hz
Control relay 1 A 24 V DC
Control relay 5 A 250 V AC 50/60 Hz
Control relay 5 A 120 V AC 50/60 Hz
Fan 5 A 250 V AC 50/60 Hz
Fan 1 A 48 V DC
Alarm relay 5 A 250 V AC 50/60 Hz
Alarm relay 1 A 48 V DC
Maximum at the common terminal 10 A
Settings operating mode Automatic
Manual
Type of setting Choice of stepping programs auto
Choice of stepping programs LIFO
Choice of stepping programs linear
Delay between 2 successive switch on the same step 5...1200 s
Step configuration programming auto
Step configuration programming off
Step configuration programming fixed
Target cos phi 0.7 inductive...0.7 capacitive
Target cos phi dual cos φ
Measurement accuracy Voltage +/- 1 %
Current +/- 1 %
Frequency +/- 1 %
Energy (P,Q,S) +/- 2 %
Cos φ +/- 2 %
Total voltage harmonic distortion THD (U) +/- 2 %
Individual voltage harmonic +/- 3 %
Temperature +/- 3 °C
Time delay range 1...6500 s on reconnection)
1...6500 s on response)
Provided Equipment User Manual
Mounting Mode Flush-mounted
Mounting support Panel 0.04…0.1 in (1…3 mm)
Mounting Location In cabinet
Cut-out dimensions 138 x 138 mm
Height 5.7 in (144 mm)
Width 5.7 in (144 mm)
Depth 2.3 in (58 mm)
Product Weight 1.3 lb(US) (0.6 kg)
Compatibility code VPL 12
Environment
Standards IEC 61000-6-4
UL 61010-1
EN 61010-1
IEC 61000-6-2
IEC 61326-1
Product Certifications EAC
NRTL
cNRTL
CE
IP degree of protection Front face IP41
Rear face IP20
Operating altitude <= 6561.68 ft (2000 m)
Ambient Air Temperature for Operation -4…140 °F (-20…60 °C)
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Ordering and shipping details
Category US1DE2C00050
Discount Schedule DE2C
GTIN 3606480800115
Returnability Yes
Country of origin DE
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 3.622 in (9.200 cm)
Package 1 Width 6.969 in (17.700 cm)
Package 1 Length 7.244 in (18.400 cm)
Package weight(Lbs) 25.644 oz (727.000 g)
Unit Type of Package 2 S03
Number of Units in Package 2 8
Package 2 Height 11.811 in (30.000 cm)
Package 2 Width 11.811 in (30.000 cm)
Package 2 Length 15.748 in (40.000 cm)
Package 2 Weight 13.569 lb(US) (6.155 kg)
Unit Type of Package 3 P06
Number of Units in Package 3 64
Package 3 Height 29.528 in (75.000 cm)
Package 3 Width 23.622 in (60.000 cm)
Package 3 Length 31.496 in (80.000 cm)
Package 3 Weight 128.768 lb(US) (58.408 kg)
