New original laser alignment instrument SKF TKSA 20 has been upgraded to TKSA 31. In stock.

  • New original laser alignment instrument SKF TKSA 20 has been upgraded to TKSA 31. In stock.
  • New original laser alignment instrument SKF TKSA 20 has been upgraded to TKSA 31. In stock.
  • New original laser alignment instrument SKF TKSA 20 has been upgraded to TKSA 31. In stock.
  • New original laser alignment instrument SKF TKSA 20 has been upgraded to TKSA 31. In stock.
Place of Origin Germany
Brand Name SKF
Model Number TKSA 31
Minimum Order Quantity 2
Price USD＄5760
Packaging Details original packing
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 10PC
Product Details
Leave a Message
Product Description

Properties

Alignment methods
3 position measurement 9 -12 -3 (140° shaft rotation needed)
Automatic measurement
Recommended applications
Horizontal shafts
Soft foot
Live correction values Vertical and horizontal
Special features
Machine library
Automatic .pdf report
Sensors
29 mm CCD
Inclinometer ±0.5°
Communications Wired with USB cables
Measurement distance 0.07 to 2 m (up to 4 m with USB extension cables)
Measuring error (percent) 0.5 %
Material
Display unit: High impact PC/ABS plastic with over mould
Measurement units: glassfiber filled PC
Battery
Measuring units: no batteries
Display unit: rechargeable 5000 mAh LiPo battery
Battery life 7 h
Operating temperature range 0 – 45 °C
Display 5.6" colour resistive touchscreen LCD display
Software update Via USB stick
Laser type Red line
Mounting 2x V-brackets (width 21 mm) with chains
Shaft diameter 20 to 150 mm
Shaft diameter (with extension chains) Up to 300 mm with optional extension chains (not included)
Maximum coupling height 105 mm
Maximum coupling height with extension 195 mm
Power adapter
Input: 100V-240V, 50/60Hz AC with country adpaters for EU, US, UK, AUS included
Output: DC 12V 3A
Degree of protection (IP) IP 54
Certifications Calibration certificate (2 years validity)
Part of a kit no
Case dimensions (l x h x w) 530 x 110 x 360 mm

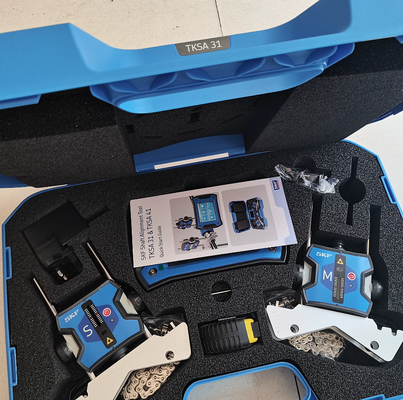

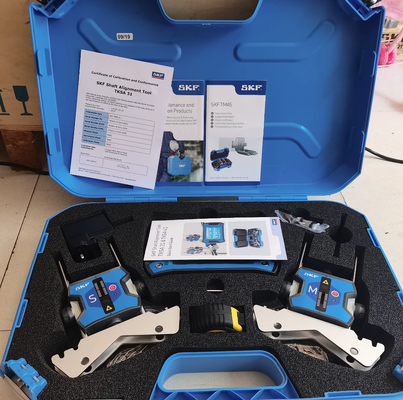

Content
Set of 2 Measuring units (M and S)
Display unit
Set of 2 shaft brackets with chains 400 mm (15.8 in) and threaded rods 150 mm (5.9 in)
Chain tightening rod
Power supply with various country adapters
Set of 2 USB cables
Measuring tape
Certificate of calibration and conformance
Quick start guide

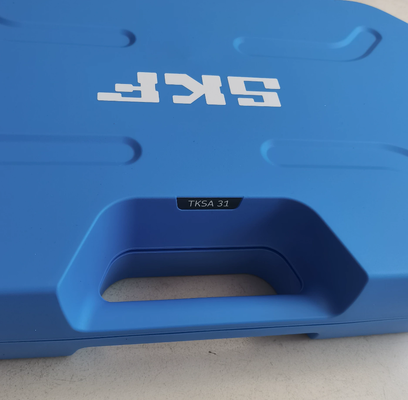

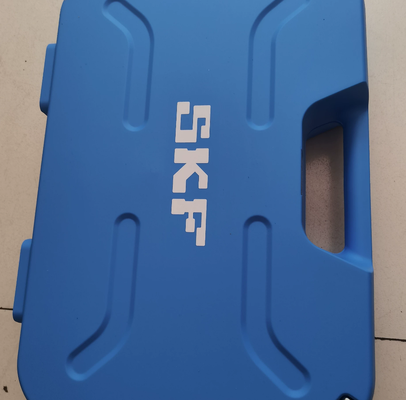

SKF carrying case
