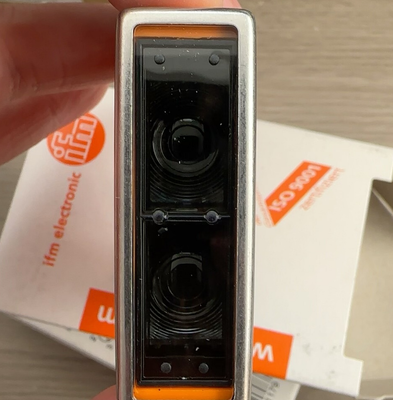

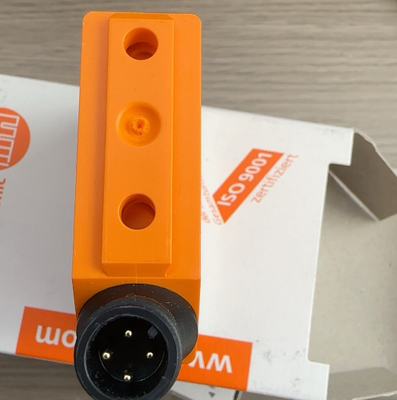

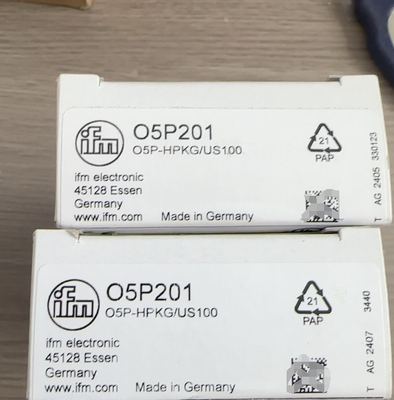

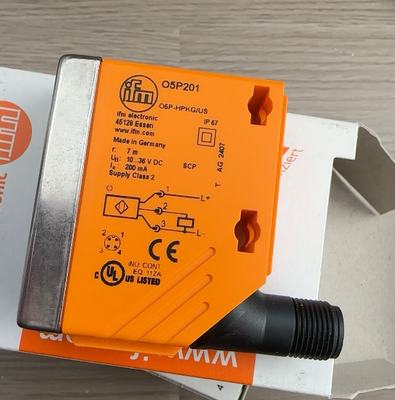

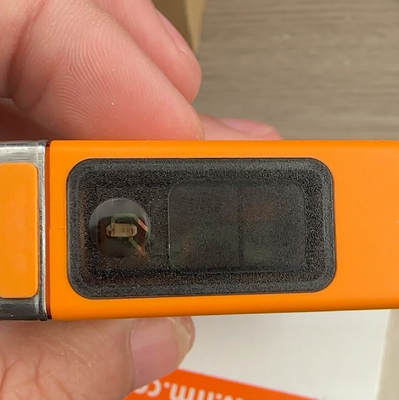

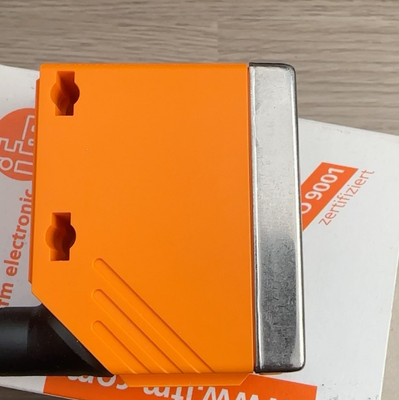

New original German IFM O5P201 photoelectric switch, induction switch, with short delivery period
| Place of Origin | Germany |
|---|---|
| Brand Name | IFM |
| Model Number | O5P201 |
| Minimum Order Quantity | 2 |
| Price | USD＄143 |
| Packaging Details | original packing |
| Delivery Time | in stock |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20PC |
Product Details
Product Description
Product characteristics
| Type of light | red light |
| Housing | rectangular |
Application
| Special feature | polarization filter |
| Function principle | Retro-reflective sensor |
| Application | Industrial applications |
Electrical data
| Operating voltage[V] | 10...36 DC |
| Current consumption[mA] | 20 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 624 |
Outputs
| Electrical design | PNP |
| Output function | light-on mode |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 200 |
| Switching frequency DC[Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Range referred to prismatic reflector[m] | 0.1...7; (Prismatic reflector Ø 80 E20005) |
| Range adjustable | no |
| Max. light spot diameter[mm] | 175 |
| Light spot dimensions refer to | at maximum range |
| Polarization filter available | yes |
Operating conditions
| Ambient temperature[°C] | -25...60 |
| Protection | IP 67 |
