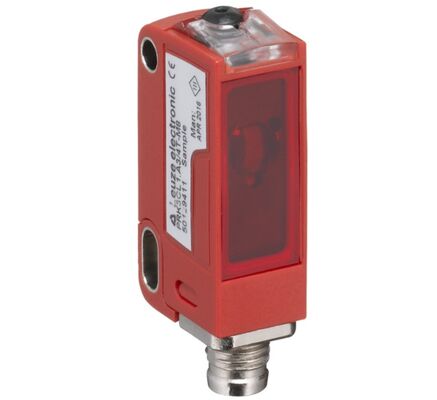

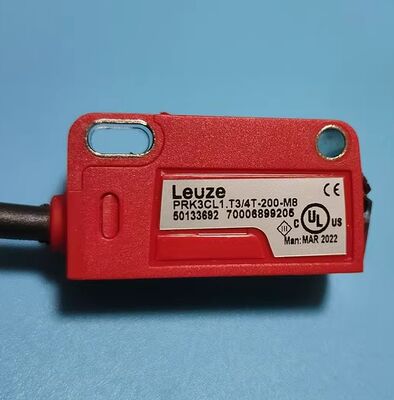

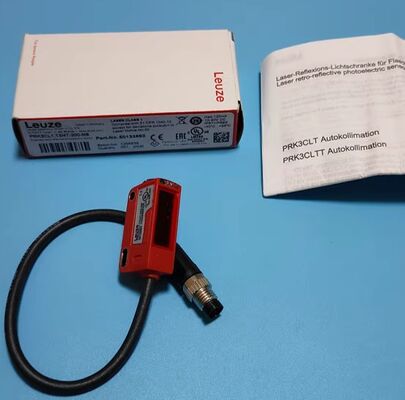

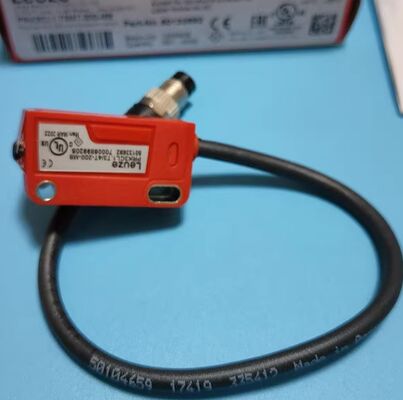

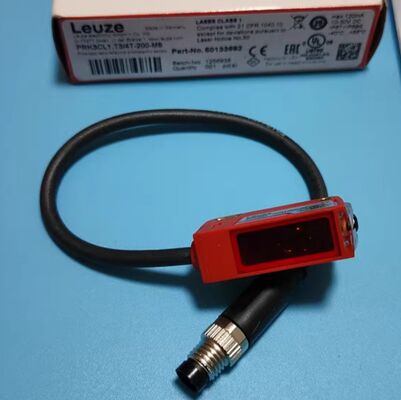

New and original Leuze PRK3CL1.T3/4T-200-M8 photoelectric sensor 50133692 - In stock

  • New and original Leuze PRK3CL1.T3/4T-200-M8 photoelectric sensor 50133692 - In stock
  • New and original Leuze PRK3CL1.T3/4T-200-M8 photoelectric sensor 50133692 - In stock
  • New and original Leuze PRK3CL1.T3/4T-200-M8 photoelectric sensor 50133692 - In stock
  • New and original Leuze PRK3CL1.T3/4T-200-M8 photoelectric sensor 50133692 - In stock
  • New and original Leuze PRK3CL1.T3/4T-200-M8 photoelectric sensor 50133692 - In stock
  • New and original Leuze PRK3CL1.T3/4T-200-M8 photoelectric sensor 50133692 - In stock
Place of Origin China
Brand Name Leuze
Model Number PRK3CL1.T3/4T-200-M8
Minimum Order Quantity 2
Price USD＄56
Packaging Details original packing
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20PC
Product Details
Highlight

Leuze PRK3CL1.T3 photoelectric sensor M8 connector

,

original Leuze photoelectric sensor 200mm range

,

Leuze PRK3CL1.T3 PLC sensor with warranty
Leave a Message
Product Description
Series 3C
Operating principle Reflection principle
Application Detection of highly transparent bottles
Detection of transparent films
Special version Autocollimation
Teach input
Operating range 0 ... 0.4 m (guaranteed operating range)
Operating range limit 0 ... 0.5 m (typical operating range)
Beam path Collimated
Light source Laser, Red
Wavelength 655 nm
Laser class 1, in accordance with IEC 60825-1:2014 (EN 60825-1:2014)
Max. laser power 0.0017 W
Transmitted-signal shape Pulsed
Pulse duration 5.3 µs
Light spot size [at sensor distance] 1 mm [500 mm]
Type of light spot geometry Round
Shift angle Typ. ± 2°
Protective circuit Polarity reversal protection
Short circuit protected
Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 15 mA
Number of teach inputs 1 Piece(s)
Type Teach input
Function Keyboard lockout
Light/dark switching
Sensitivity adjustment
