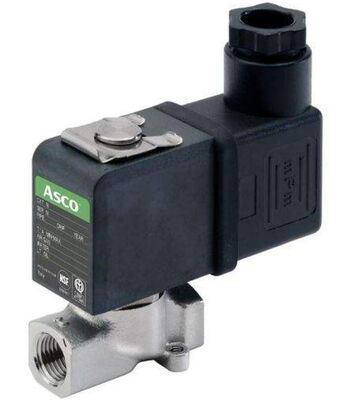

Pilot External Control Valve with 24V Rated Voltage 10L/min Maximum Flow Rate for Industrial Fluid Handling Systems

Product Description:

The Control Valves, including models SCG238F017, SCE238D003, and the widely sought-after SCE238D003 variant, represent the pinnacle of precision and reliability in fluid control technology. Designed to operate efficiently across a broad temperature spectrum from -40° to +65°C, these valves are engineered to perform consistently in demanding environments, ensuring seamless operation whether in extreme cold or elevated heat conditions. This wide operational temperature range makes them ideal for a variety of industrial applications where temperature fluctuations are common.

One of the standout features of these Control Valves is their versatility in handling different medium types. Specifically, they are suitable for use with water, steam, and air, making them highly adaptable to various process requirements. Whether controlling the flow of steam in heating systems, regulating air in pneumatic setups, or managing water flow in municipal or industrial processes, these valves deliver precise control and dependable performance.

Safety and durability are paramount in the design of these valves. They come with an IP54 rating, ensuring that the internal components are well-protected against dust ingress and splashing water. This rating guarantees that the valves can withstand challenging environmental conditions without compromising their integrity or functionality. For industries where exposure to dust and moisture is a concern, these Control Valves offer peace of mind and long service life.

The electrical aspect of the Control Valves is equally robust. They operate on a rated voltage of 24V, a common and safe voltage level that facilitates easy integration with existing control systems. This rated voltage ensures reliable actuation and precise control signals, making the valves highly responsive to system demands. The 24V operation also contributes to energy efficiency, reducing operational costs and enhancing overall system sustainability.

Additionally, for applications requiring enhanced actuation methods, the Control Valves offer an optional pneumatic cylinder. This feature allows for pneumatic actuation, which can be advantageous in situations where electrical actuation is not feasible or where faster response times and higher actuation forces are necessary. The pneumatic cylinder option expands the versatility of models such as the SCG238F017 and SCE238D003, enabling them to meet specialized industrial needs.

Models like the SCG238F017 and SCE238D003 have been rigorously tested and certified to meet stringent industry standards, underscoring their operational reliability and safety. These certifications confirm that the valves adhere to quality benchmarks, assuring users of their performance consistency and compliance with regulatory requirements. Such certification is crucial for industries where valve failure can lead to costly downtime or safety hazards.

In summary, the Control Valves SCG238F017, SCE238D003, and SCE238D003 are expertly engineered solutions designed to provide precise and reliable control over water, steam, and air flow in a wide range of industrial applications. Their ability to operate within a challenging temperature range of -40° to +65°C, combined with their IP54 protection rating, 24V rated voltage, and optional pneumatic cylinder, makes them highly adaptable and robust components in fluid control systems. Whether you require dependable performance in harsh environments or flexible actuation options, these Control Valves deliver exceptional value and operational excellence.

Features:

• Product Name: Control Valves
• Rated Voltage: 24V
• Power Consumption: Approx. 3VA
• Ambient Temperature Range: -10 to 50°C
• Payment Method: T/T
• Maximum Regulation Range: 8.6 Bar
• Compatible Models: SCE238D003, SCG238F017
• Part of ASCO Series 238 Solenoid Valve

Technical Parameters:

Applications:

The ASCO Control Valves, specifically the model SCG238F017, are engineered to deliver exceptional performance across a wide range of industrial applications. Originating from Germany, these valves are designed to operate reliably within a temperature range of -40° to +65°C, making them suitable for harsh and varying environmental conditions. Their robust construction and advanced throttle module structure ensure precise flow control, vital for maintaining system efficiency and safety.

One of the primary application occasions for the ASCO SCG238F017 control valves is in the management of fluids such as water, steam, and air. These mediums are commonly found in industries like HVAC, chemical processing, and manufacturing, where precise control of flow and pressure is critical. The valve’s maximum flow rate of 10L/min allows it to handle moderate flow requirements efficiently, making it ideal for both small-scale and large-scale systems.

In scenarios requiring enhanced control, an optional hydraulic cylinder can be integrated, providing greater operational flexibility and responsiveness. This feature is particularly beneficial in automated systems where rapid and accurate valve adjustments are necessary. For instance, in steam regulation within power plants or air control in pneumatic systems, the ASCO SCG238F017 control valve ensures optimal performance and safety standards are met.

Moreover, the ASCO SCG238F017 complements other products like the SCE238D003 Solenoid Valve. The SCE238D003 Solenoid Valve is often used in conjunction with throttle modules to achieve precise fluid control in complex systems. Together, these components form a reliable solution for controlling flow rates and pressures in various industrial settings.

Overall, the ASCO SCG238F017 control valve is highly versatile and suited for diverse operational scenarios. Whether it’s regulating water flow in municipal water treatment plants, controlling steam in heating systems, or managing air in pneumatic applications, this valve delivers consistent performance. Its German engineering pedigree, combined with certified operational capabilities, ensures that it meets stringent industry requirements, providing users with confidence in its durability and effectiveness.

Customization:

Our Control Valves product, specifically the ASCO Series 238 Solenoid Valve, model SCG238F017, offers exceptional customization services to meet your precise needs. Manufactured in Germany, this valve is designed to operate efficiently within a temperature range of -40° to +65°C, ensuring reliable performance in various environments.

With a power consumption of approximately 3VA and a maximum flow rate of 10L/min, the SCG238F017 is ideal for controlling water, steam, and air mediums. We also support customization options that align with the specifications of similar models like the SCE238D003, allowing you to select features that best suit your application.

Our payment terms are flexible with T/T accepted, making it easy to procure the ASCO Series 238 Solenoid Valve tailored to your requirements. Trust us to deliver high-quality, certified control valves that enhance your system's efficiency and reliability.

Support and Services:

Our Control Valves product is backed by comprehensive technical support and services to ensure optimal performance and reliability. Our team of experts is available to assist with installation guidance, troubleshooting, maintenance procedures, and performance optimization. We provide detailed product documentation, including manuals, datasheets, and application notes to help you maximize the value of your control valves.

In addition, we offer customized training sessions and workshops to equip your personnel with the necessary skills to operate and maintain the valves effectively. Our service programs include routine inspections, calibration, repair, and replacement parts supply to minimize downtime and extend the lifespan of your equipment.

We are committed to delivering timely and efficient support to address any technical challenges you may encounter, ensuring your control valve systems operate smoothly and efficiently in all applications.

Packing and Shipping:

Our Control Valves are carefully packaged to ensure maximum protection during transit. Each valve is securely wrapped in anti-corrosion material and cushioned with high-density foam to prevent damage from shocks and vibrations. The packaged valves are then placed in sturdy, double-walled cardboard boxes that are labeled with handling instructions and product details.

For shipping, we use reliable carriers that offer tracking and timely delivery services. Depending on the destination and order size, shipments can be sent via air, sea, or land freight. All packages are inspected before dispatch to guarantee the products arrive in perfect condition and meet customer specifications.

FAQ:

Q1: What is the brand and model number of this control valve?

A1: The control valve is manufactured by ASCO and the model number is SCG238F017.

Q2: Where is the ASCO SCG238F017 control valve made?

A2: This control valve is made in Germany.

Q3: What applications is the ASCO SCG238F017 control valve suitable for?

A3: The ASCO SCG238F017 control valve is typically used in industrial automation, fluid control systems, and various process control applications.

Q4: What type of fluids can the ASCO SCG238F017 control valve handle?

A4: This control valve is designed to handle a variety of fluids including gases, liquids, and steam, depending on the specific system requirements.

Q5: How do I ensure proper installation of the ASCO SCG238F017 control valve?

A5: It is recommended to follow the manufacturer’s installation guidelines provided with the product, ensuring correct orientation, secure connections, and compatibility with your system’s pressure and temperature specifications.
