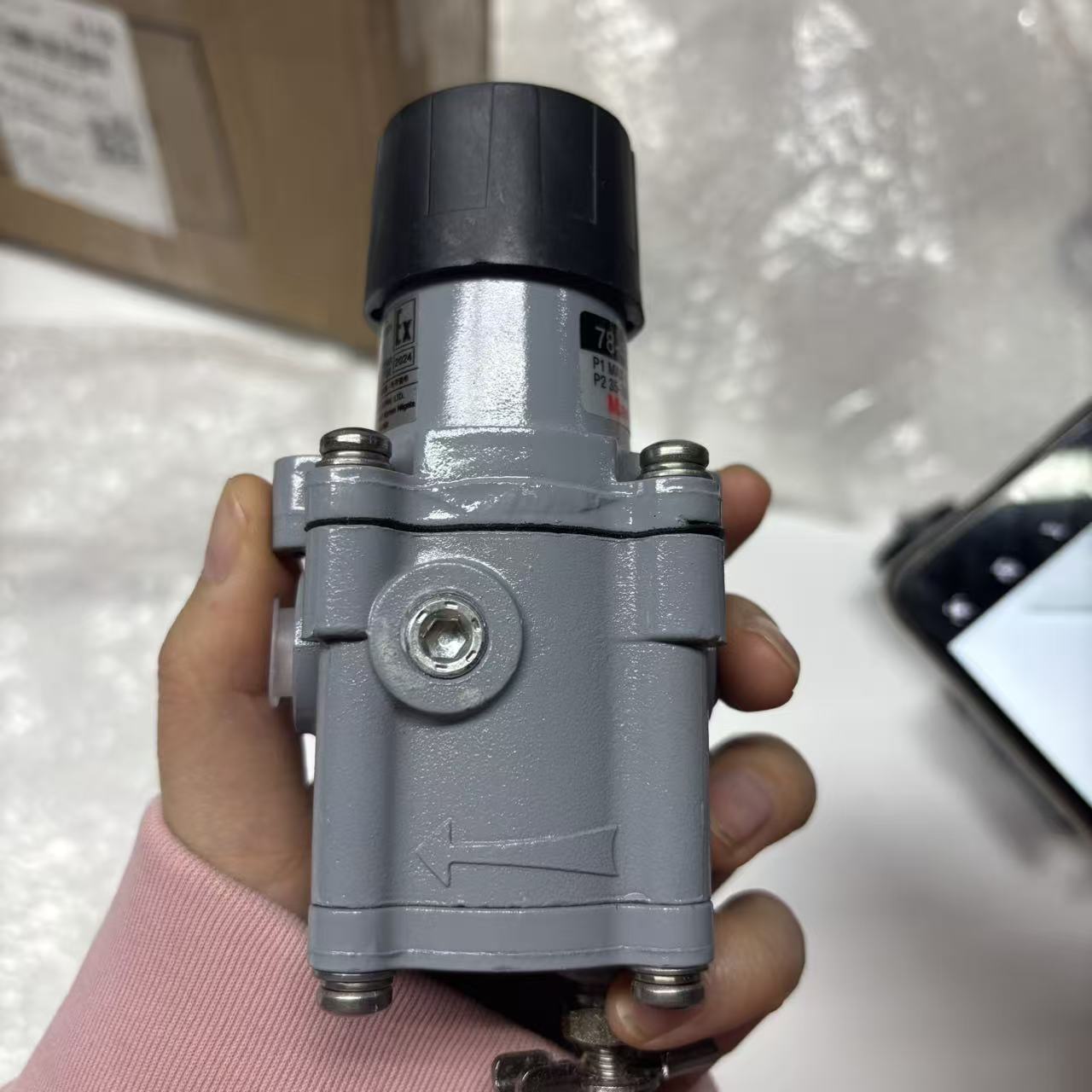

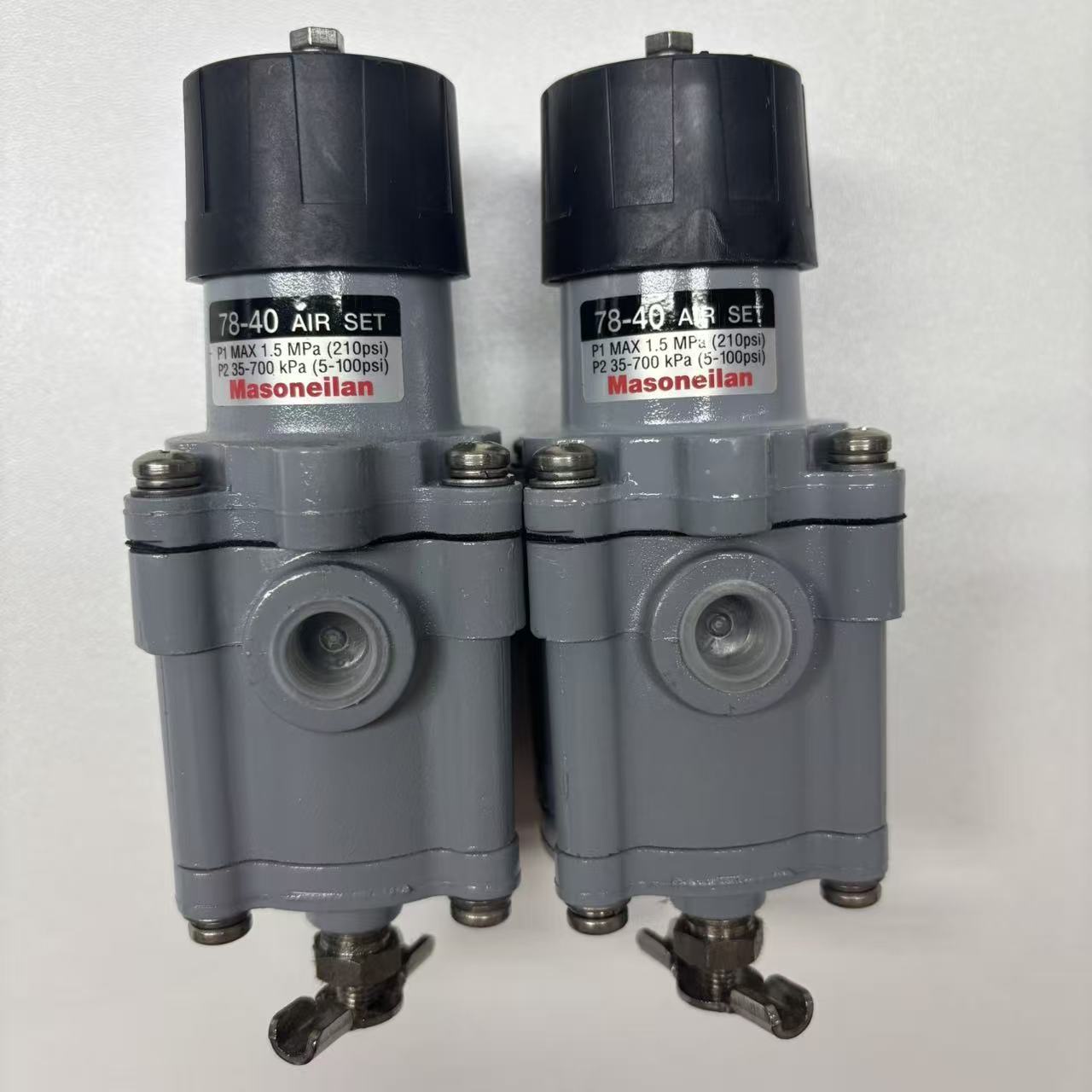

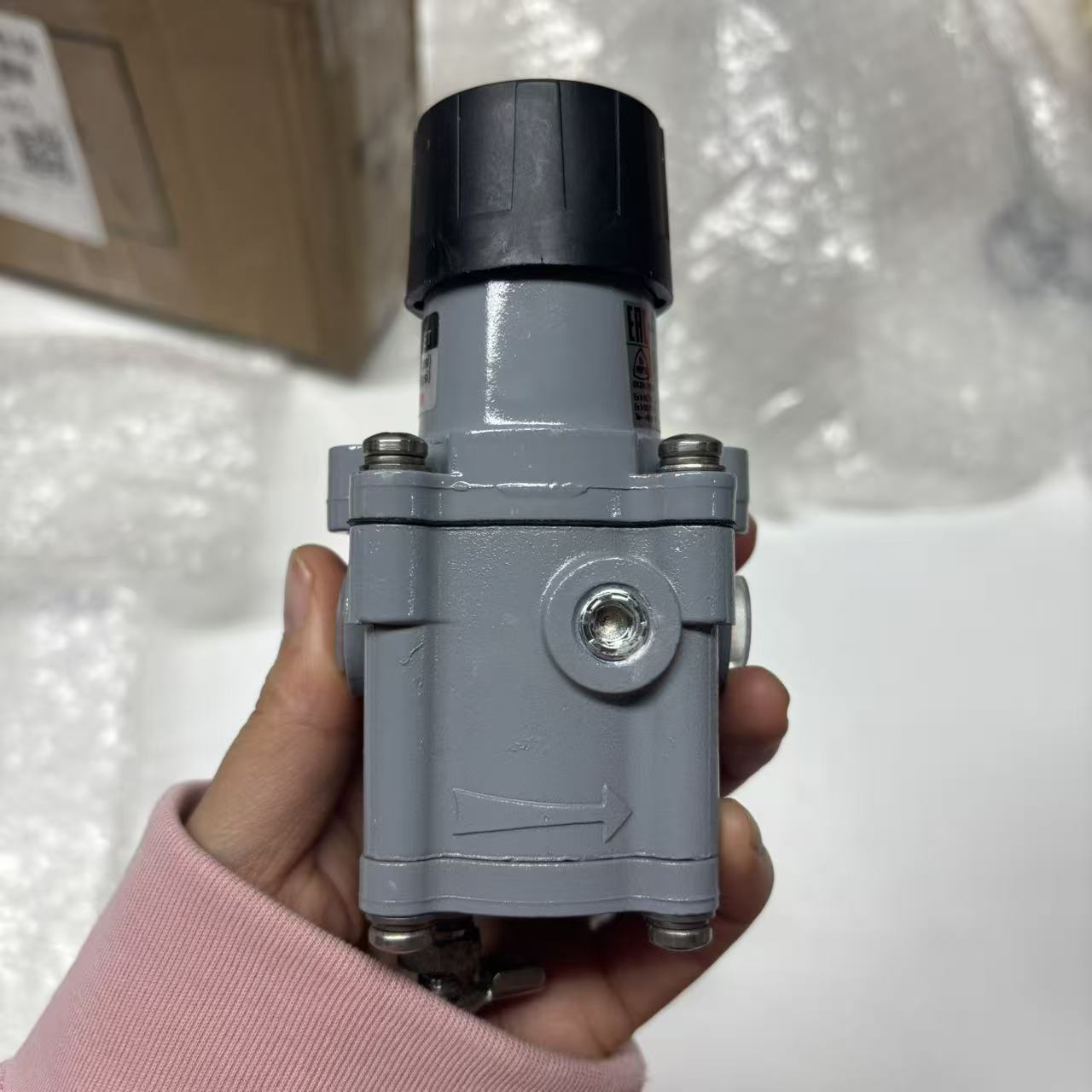

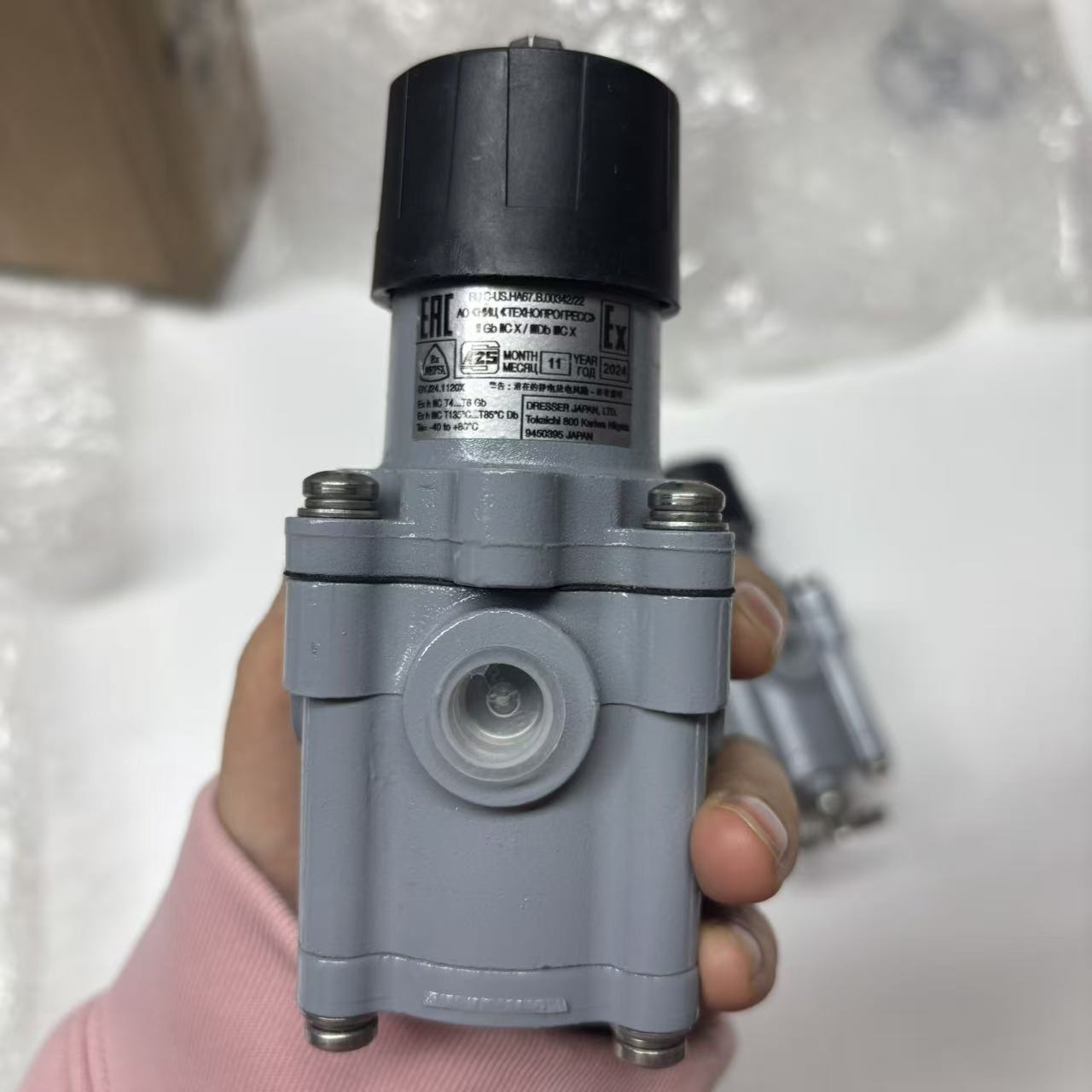

Masoneilan 78-40 Filter relief valve
| Place of Origin | USA |
|---|---|
| Brand Name | Masoneilan |
| Certification | CE |
| Model Number | 78-40 |
| Minimum Order Quantity | 1 |
| Price | US$105/PC |
| Packaging Details | CARTON |
| Delivery Time | 1WEEK |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 500PCS |
Product Details
Product Description
Inlet Pressure Rating 210 psi (1.5 MPa, 15 bar) maximum
Pressure Set Range
5-40 psi (35-280 kPa, 0.35-2.8
bar)5-100 psi (35-700 kPa, 0.35-7
bar)
Connection 1/4 NPT
Rated Cv 0.25
Filter Element Sintered Porous Polyethylene (5μ)
Ambient Temperature
Range-40° to +83°C (-40° to +182°F)
Low Temperature
Range -50°C to +60°C (-58°F to 140°F)
High Temperature
Range 0°C to 100°C (32°F to 212°F)
Air Consumption 0.004 scfm (100 sccm)
Weight 14 oz. (0.4 kg)
Materials of
Construction See Table next page
