NORIS DWA90-Q1-R1 Rotary Postion Sensors
| Place of Origin | Germany |
|---|---|
| Brand Name | NORIS |
| Certification | CCC.CE |
| Model Number | DWA90-Q1-R1 |
| Minimum Order Quantity | 1 |
| Price | USD$2860/PC |
| Packaging Details | Original New |
| Delivery Time | 30 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10pcs |
Product Details
| Product Type | Rotary Postion Sensors | Supply Voltage | 15 ... 30 VDC |
|---|---|---|---|
| Measuring Range | 10° ... 320° In 10° Steps | Rotation Angle | 360° Without Mechanical Limitation |
| Output Signal | 2 Signal Outputs: 0 ... 2 KΩ | Operating Temperature | -40 ... +70°C |
| Degree Of Protection | IP66 | Weight | 5kg |
Product Description

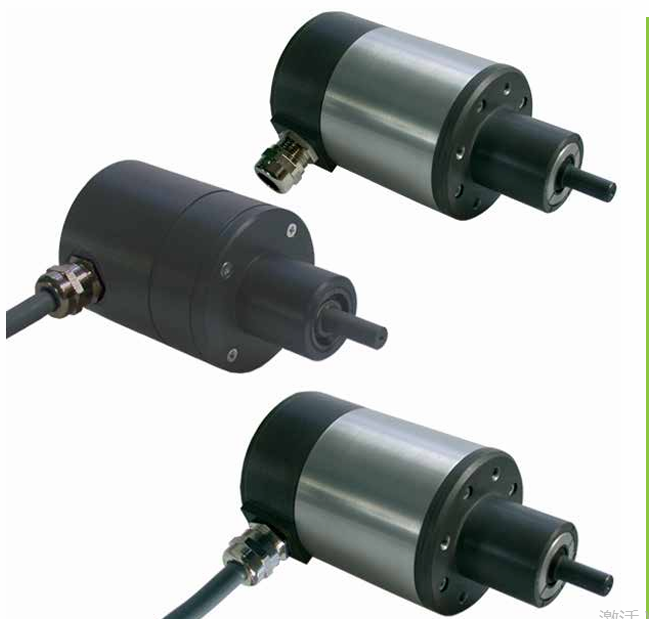

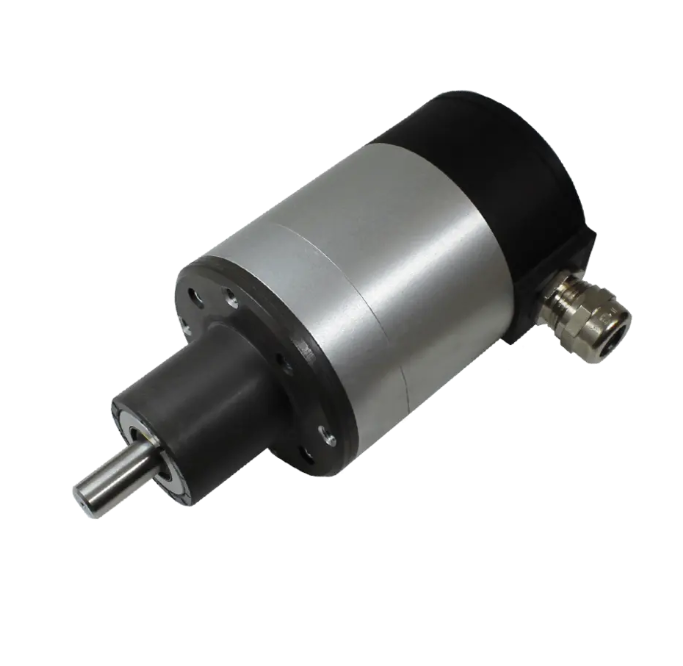

NORIS DWA90-Q1-R1 Rotary Postion Sensors
Rotary position sensors of type DWA are mechanically connected rotary position encoders. They measure the rotary position in accordance with the ohmic principle. These rotary position sensors are suitable for measuring the rudder or pitch position, for example.
Mechanically connected rotary position sensor, ohmic principle.
360° rotation angle without mechanical limitation.
Reference positions easy to adjust mechanically.
Maintenance-free operation.
No reference run necessary.
Potential-separated channels.
Approvals: ABS, BV, DNV-GL, MED
