Asco WSNFET8327B102.24/DC Solenoid Valves
| Place of Origin | USA |
|---|---|
| Brand Name | Asco |
| Certification | CCC.CE |
| Model Number | WSNFET8327B102 |
| Minimum Order Quantity | 1 |
| Price | USD$540/PC |
| Packaging Details | Original New |
| Delivery Time | 30 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10pcs |
Product Details
| Differential Pressure | 0 - 10 Bar | Maximum Viscosity | 65cST (mm2/s) |
|---|---|---|---|
| Response Times | 75 - 100 Ms | Operating Voltage | 24 Vdc |
| Min To Max Ambient Temperature | -20 - 60 °C | Orifice Size | 5.7 Mm |
Product Description

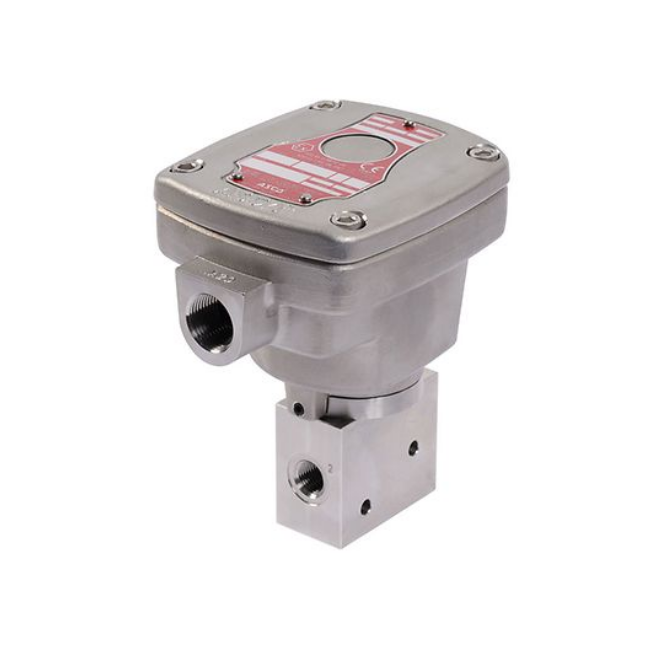

Asco WSNFET8327B102.24/DC Solenoid Valves
FEATURES
• The valves are certified according to IEC 61508 Functional Safety data and have
SIL-3 capability (TÜV & Exida certification)
• The solenoid valves are recommended for pilot applications with basic flow, wide
pressure ranges and no minimum operating pressure
• PTFE rider rings and graphite-filled PTFE seals reduce friction and eliminate
sticking
• Coils used in metal enclosures have class H insulation materials
• Dedicated execution for low power
• Dedicated execution for extreme low ambient temperatures
• Peak voltage suppression diodes are standard in DC solenoids with metal
enclosures
• The solenoid valves satisfy all relevant EU directives
• Manual Operators are optional including an under pressure removable type
• Environmental NACE compliant and certified vibration resistant in combination
with WSCR solenoids
