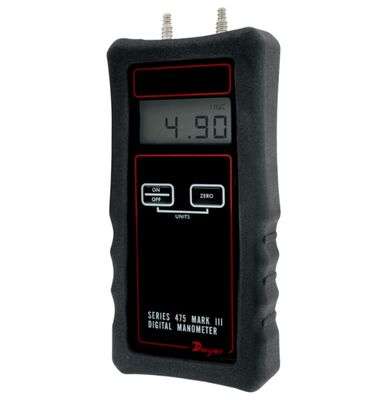

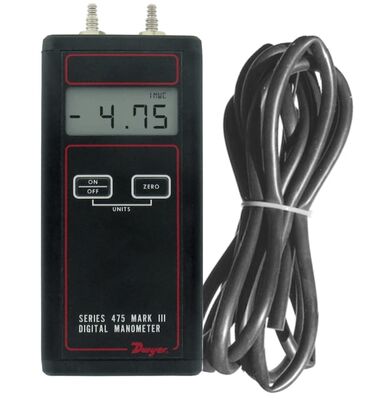

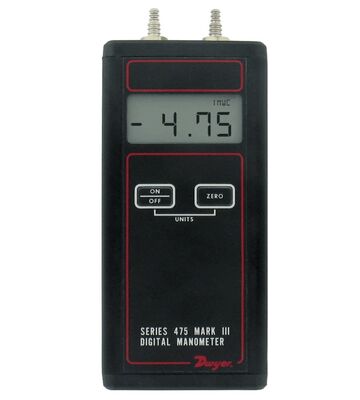

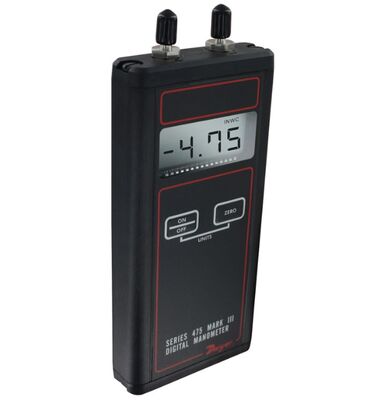

Dwyer 475-000-FM Handheld Digital Manometer with 0-1.000" w.c. Range ±0.5% Accuracy and LCD Display
Product Details
| Accuracy | ± 0.5 % | Battery Size And Type | Alkaline 9V |
|---|---|---|---|
| Compensated Temperature, Max | 104 °F | Compensated Temperature, Min | 32 °F |
| Display Type | LCD | Measurement Pressure, Max | 1 InH₂O |
| Highlight | Dwyer handheld digital manometer,digital pressure gauge 0-1.000 w.c.,handheld manometer with 5 psig |
||
Product Description
Dwyer 475-000-FM Handheld digital manometer, range 0-1.000" w.c. (.2491 kPa), max. pressure 5 psig
![]()
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% FS, 60 to 78°F (15.6 to 25.6°C); 1.5% FS from 32 to 60°F and 78
to 104°F (0 to 15.6°C and 25.6 to 40°C).
Pressure Hysteresis: ±0.1% of FS.
Pressure Limits: See chart.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 4-digit LCD (.425 H x .234 W digits).
Power Requirements: 9 volt alkaline battery. Battery included but not connected
