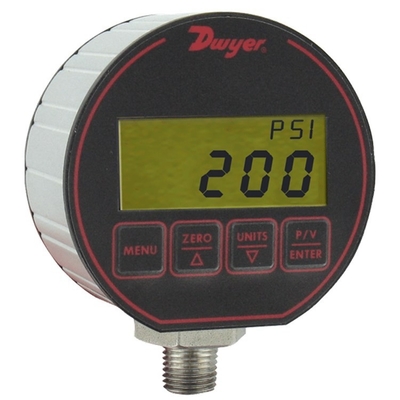

IP66 Digital Pressure Gauge Aluminum Housing DPG-105 NEMA 4X Electronic Pressure Gauge

  • IP66 Digital Pressure Gauge Aluminum Housing DPG-105 NEMA 4X Electronic Pressure Gauge
  • IP66 Digital Pressure Gauge Aluminum Housing DPG-105 NEMA 4X Electronic Pressure Gauge
  • IP66 Digital Pressure Gauge Aluminum Housing DPG-105 NEMA 4X Electronic Pressure Gauge
  • IP66 Digital Pressure Gauge Aluminum Housing DPG-105 NEMA 4X Electronic Pressure Gauge
Place of Origin USA
Brand Name dwyer
Certification CCC CE ISO
Model Number DPG-006
Minimum Order Quantity 1
Price $168-$330/PCS
Packaging Details 100% original package
Delivery Time 14 work days
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 3000Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Wetted Materials Type 316L SS.
Accuracy DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 Least Significant Digit @ 70°F (21°C) Enclosure Rating Designed To Meet NEMA 4/4X (IP66
Pressure Limit 2x Pressure Range For Models ≤1000 Psi; 5000 Psi For 3000 Psi Range; 7500 Psi For 5000 Psi Range Power Requirements (2) AAA Alkaline Batteries, Included, User Replaceable
High Light

IP66 Digital Pressure Gauge

,

Digital Pressure Gauge Aluminum Housing

,

electronic pressure gauge Aluminum Housing
You can tick the products you need and communicate with us in the message board.
Size: 3.00" OD x 1.90" deep (max).
Process Connection: 1/4" male NPT.
Weight: 8.84 oz (275 g)
Display: 4 digit (.425" H x .234" W digits).
Leave a Message
Size: 3.00" OD x 1.90" deep (max).
Product Description

SERIES DPG DIGITAL PRESSURE GAGE

±0.25% or ±0.5% F.S. Accuracy, NEMA 4X (IP66) Aluminum Housing

Replace your outdated analog gages with the new Series DPG Digital Pressure Gage. The Series DPG has a high ±0.25% or ±0.5% full-scale accuracy. The 4 digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages. Series DPG is battery powered and has an auto-shut off to conserve battery life. Battery life, on average, will last 2000 hours. A 4 button key pad allows easy access to features without the need to work through complex menus or difficult key combinations. These features include backlight, peak and valley, tare or auto zero and conversion of the pressure units.

NIST CALIBRATION available in Product Configurator.

Model Description
DPG-000 Digital pressure gage, selectable engineering units: -14.70-0 psi, -1.033 kg/cm², -1.013 bar, -29.93" Hg, -33.94 ft w.c., -101.4 kPa, -235.2 oz/in², -407.3" w.c., -1013 mbar, -1034 cm w.c., -760.7 mm Hg.
DPG-002 Digital pressure gage, selectable engineering units: 15.00 psi, 1.055 kg/cm², 1.034 bar, 30.54" Hg, 34.61 ft w.c., 103.4 kPa, 240 oz/in², 415.2" w.c., 1034 mbar, 1055 cm w.c., 775.7 mm Hg.
DPG-003 Digital pressure gage, selectable engineering units: 30.00 psi, 2.109 kg/cm², 2.069 bar, 61.08" Hg, 69.21 ft w.c., 206.9 kPa, 480 oz/in², 830.4" w.c., 2069 mbar, 2109 cm w.c., 1551 mm Hg.
DPG-004 Digital pressure gage, selectable engineering units: 50.00 psi, 3.515 kg/cm², 3.448 bar, 101.8" Hg, 115.4 ft w.c., 344.8 kPa, 800 oz/in², 1384" w.c., 3448 mbar, 3515 cm w.c., 2586 mm Hg.
DPG-005 Digital pressure gage, selectable engineering units: 100.0 psi, 7.03 kg/cm², 6.895 bar, 203.6" Hg, 230.7 ft w.c., 689.5 kPa, 1600 oz/in², 2768" w.c., 6895 mbar, 7031 cm w.c., 5172 mm Hg.
DPG-006 Digital pressure gage, selectable engineering units: 200.0 psi, 14.06 kg/cm², 13.79 bar, 407.2" Hg, 461.4 ft w.c., 1379 kPa, 3200 oz/in², 5536" w.c.
DPG-007 Digital pressure gage, selectable engineering units: 300.0 psi, 21.09 kg/cm², 20.69 bar, 610.8" Hg, 692.1 ft w.c., 2069 kPa, 4800 oz/in², 8304" w.c.
DPG-008 Digital pressure gage, selectable engineering units: 500.0 psi, 35.15 kg/cm², 34.48 bar, 1018" Hg, 1154 ft w.c., 3448 kPa, 8000 oz/in².
DPG-009 Digital pressure gage, selectable engineering units: 1000 psi, 70.3 kg/cm², 68.98 bar, 2036" Hg, 2307 ft w.c., 6895 kPa.
DPG-010 Digital pressure gage, selectable engineering units: 3000 psi, 210.9 kg/cm², 206.9 bar, 6108" Hg, 6921 ft w.c.
DPG-011 Digital pressure gage, selectable engineering units: 5000 psi, 351.5 kg/cm², 344.8 bar.
DPG-020 Digital pressure gage, range 30" Hg-0-15 psi.
DPG-102 Digital pressure gage, selectable engineering units: 15.00 psi, 1.055 kg/cm², 1.034 bar, 30.54" Hg, 34.61 ft w.c., 103.4 kPa, 240 oz/in², 415.2" w.c., 1034 mbar, 1055 cm w.c., 775.7 mm Hg, CE and FM approved.
DPG-103 Digital pressure gage, selectable engineering units: 30.00 psi, 2.109 kg/cm², 2.069 bar, 61.08" Hg, 69.21 ft w.c., 206.9 kPa, 480 oz/in², 830.4" w.c., 2069 mbar, 2109 cm w.c., 1551 mm Hg, CE and FM approved.
DPG-104 Digital pressure gage, selectable engineering units: 50.00 psi, 3.515 kg/cm², 3.448 bar, 101.8" Hg, 115.4 ft w.c., 344.8 kPa, 800 oz/in², 1384" w.c., 3448 mbar, 3515 cm w.c., 2586 mm Hg, CE and FM approved.
DPG-105 Digital pressure gage, selectable engineering units: 100.0 psi, 7.03 kg/cm², 6.895 bar, 203.6" Hg, 230.7 ft w.c., 689.5 kPa, 1600 oz/in², 2768" w.c., 6895 mbar, 7031 cm w.c., 5172 mm Hg, CE and FM approved.
DPG-106 Digital pressure gage, selectable engineering units: 200.0 psi, 14.06 kg/cm², 13.79 bar, 407.2" Hg, 461.4 ft w.c., 1379 kPa, 3200 oz/in², 5536" w.c., CE and FM approved.
DPG-107 Digital pressure gage, selectable engineering units: 300.0 psi, 21.09 kg/cm², 20.69 bar, 610.8" Hg, 692.1 ft w.c., 2069 kPa, 4800 oz/in², 8304" w.c., not CE and FM approved.
DPG-108 Digital pressure gage, selectable engineering units: 500.0 psi, 35.15 kg/cm², 34.48 bar, 1018" Hg, 1154 ft w.c., 3448 kPa, 8000 oz/in², CE and FM approved.
DPG-109 Digital pressure gage, selectable engineering units: 1000 psi, 70.3 kg/cm², 68.98 bar, 2036" Hg, 2307 ft w.c., 6895 kPa, CE and FM approved.
DPG-110 Digital pressure gage, selectable engineering units: 3000 psi, 210.9 kg/cm², 206.9 bar, 6108" Hg, 6921 ft w.c., CE and FM approved
DPG-111 Digital pressure gage, selectable engineering units: 5000 psi, 351.5 kg/cm², 344.8 bar, not CE and FM approved.







Service: Compatible liquids and combustible gases (for FM listing see Agency Approvals below).
Wetted Materials: Type 316L SS.
Housing Materials: Polycarbonate front and back cover, anodized aluminum extruded housing with recessed grooves, polycarbonate overlay, Buna-N O-rings, 316L SS sensor construction.
Accuracy: DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 least significant digit @ 70°F (21°C) (includes linearity, hysteresis, repeatability).
Pressure Limit: 2x pressure range for models ≤1000 psi; 5000 psi for 3000 psi range; 7500 psi for 5000 psi range.
Enclosure Rating: Designed to meet NEMA 4/4X (IP66).
Temperature Limits: 0 to 130°F (-18 to 55°C).
Thermal Effect: Between 70 to 130°F is 0.016%/F. Between 32 to 70°F is 0.026%/F. Between 10 to 32°F is 0.09%/F. Between 0 to 10°F is 0.50%/F.
Size: 3.00" OD x 1.90" deep (max).
Process Connection: 1/4" male NPT.
Weight: 8.84 oz (275 g).
Display: 4 digit (.425" H x .234" W digits).
Power Requirements: (2) AAA alkaline batteries, included, user replaceable.
Battery Life: 2000 hours typical; Low battery indicator. (60 hours in continuous use).
Auto Shut-Off: Gage: 60 minute auto shut-off. Auto shut-off may be disengaged. Backlight: 2 minute auto shut-off.
Agency Approvals: DPG-000: CE; DPG-100: CE, FM approved to be intrinsically safe for Class I, Division 1, Groups A, B, C and D, for ranges 0-5 to 0-3000 psi.



IP66 Digital Pressure Gauge Aluminum Housing DPG-105 NEMA 4X Electronic Pressure Gauge 0

IP66 Digital Pressure Gauge Aluminum Housing DPG-105 NEMA 4X Electronic Pressure Gauge 1



FEATURES

  • High accuracy provides exceptional measurement minimizing costly out of specification conditions
  • Backlit 4-digit display provides clear parallax-free reading reducing potential for errors
  • Battery-powered gage with auto-shutoff eliminates wiring and prolongs battery life reducing service calls
  • Push-button zero reduce installation and service time
