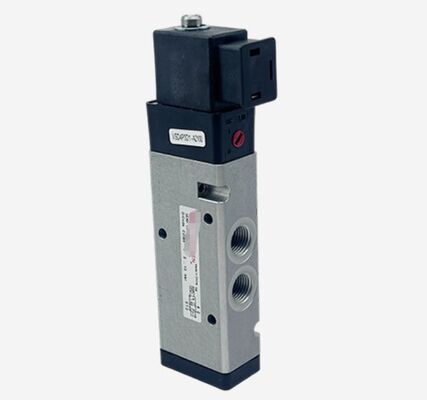

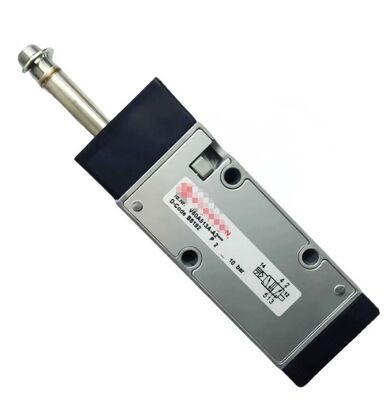

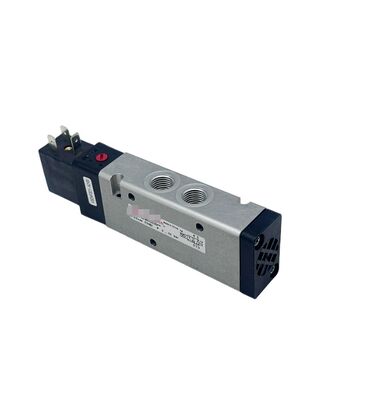

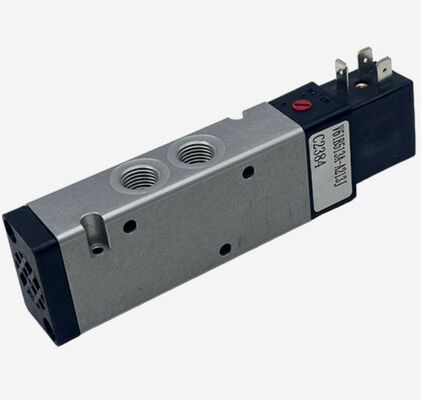

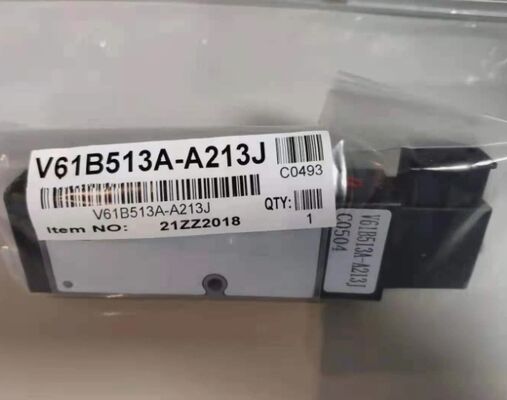

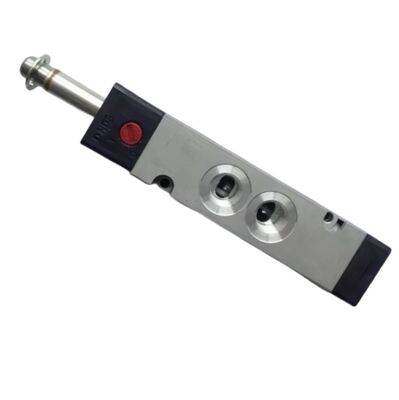

norgren V61B513A-A213J V61 series inline solenoid valve, G1/4, 5/2, solenoid pilot / air spring return
| Place of Origin | Mexico |
|---|---|
| Brand Name | Norgren |
| Certification | / |
| Model Number | V61B513A-A213J |
| Minimum Order Quantity | 1pc |
| Price | USD 40/PC |
| Packaging Details | original packing |
| Delivery Time | 5 working days |
| Payment Terms | T/T |
| Supply Ability | 1000pc/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Medium | Compressed Air | Operating Temperature | -10 ... 50 °C, 14 ... 122 °F |
|---|---|---|---|
| Operating Pressure | 2 ... 10 Bar, 29 ... 145 Psi | Port Size | G1/4 |
| Actuation | Solenoid Pilot / Air Spring Return |
Product Description
| Medium | Compressed air |
|---|---|
| Operating Temperature | -10 ... 50 °C, 14 ... 122 °F |
| Operating Pressure | 2 ... 10 bar, 29 ... 145 psi |
| Port Size | G1/4 |
| Actuation | Solenoid pilot / Air spring return |
| Coil Code | QM/48/13J/21 |
| Valve operation | 5/2 |
| Flow | 1300 l/m, 46 scfm |
| Materials - Body | Aluminium |
| Materials - Seals | Nitrile rubber (NBR), Fluoro-Polymer-Material (FPM) |
| Certification - IP Rating | IP65 (with sealed plug) |
| Dimensions - Height | 40 mm |
| Dimensions - Length | 153 mm |
| Dimensions - Width | 25 mm |
| Weight | 0.33 kg |
| Country of Origin | Czechia |
| Range | V60…63 |
| Series | V61 |
| Brand | IMI Norgren |
