Phoenix contact 2964186 ELR W3/9-500 Reversing load relay

  • Phoenix contact 2964186 ELR W3/9-500 Reversing load relay
  • Phoenix contact 2964186 ELR W3/9-500 Reversing load relay
  • Phoenix contact 2964186 ELR W3/9-500 Reversing load relay
  • Phoenix contact 2964186 ELR W3/9-500 Reversing load relay
Place of Origin Germany
Brand Name Phoenix contact
Certification CCC.CE
Model Number 2964186 ELR W3/9-500
Minimum Order Quantity 1
Price USD$360/PC
Packaging Details carton
Delivery Time 3 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type Solid-state Contactor Number Of Phases 3
Maximum Power Dissipation For Nominal Condition 13.5 W Mains Type 3-phase
Quiescent Current 40 MA Rated Actuating Voltage UC 24 V DC
Status Display LED (yellow) Error Indication Red LED
Operating Voltage Display Green LED Degree Of Protection IP20
Ambient Temperature -20 °C ... 60 °C Weight 2kg
Leave a Message
Product Description

Phoenix contact 2964186 ELR W3/9-500 Reversing load relay



Electronic reversing load relay, for direct driving of equipment in the 3-phase network, with light indicator and protection circuit, output: 110-550 V AC/3 x 9 A

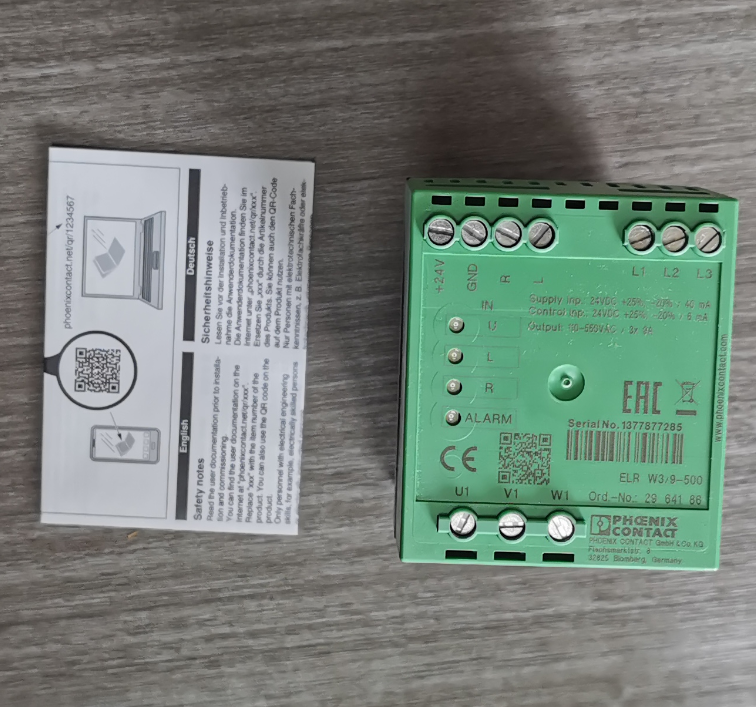

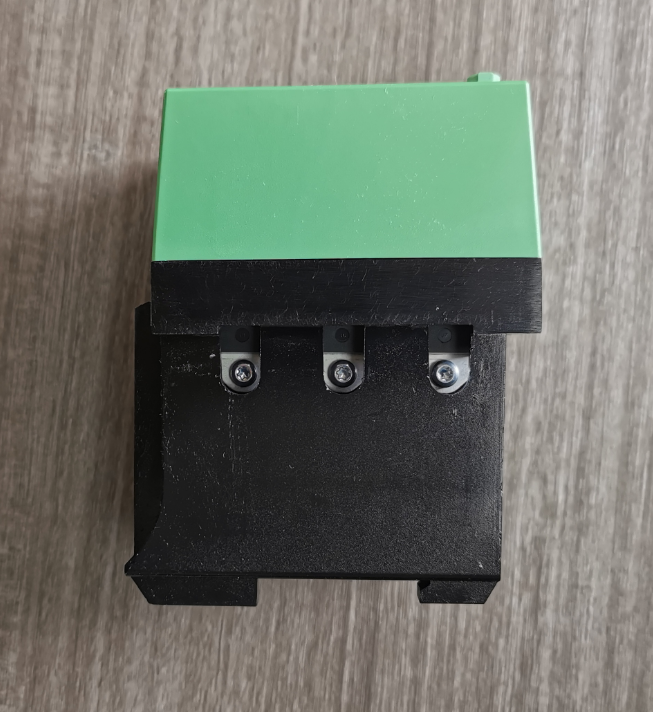

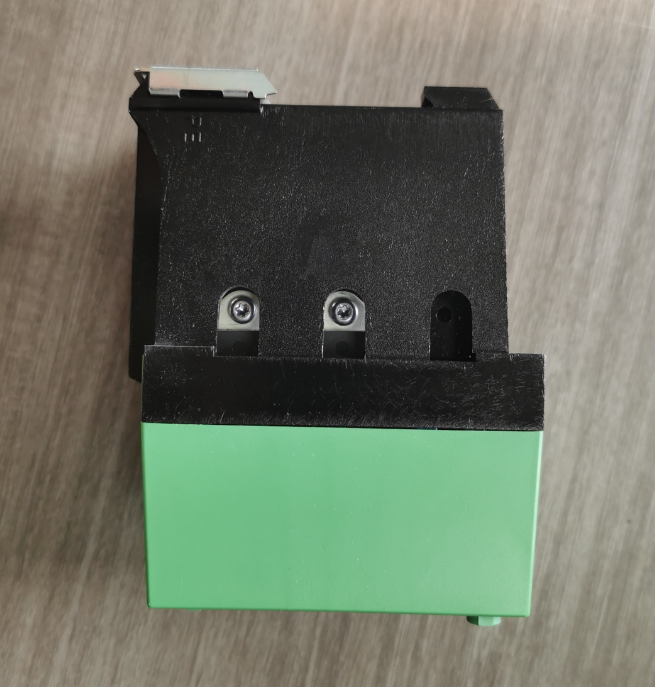

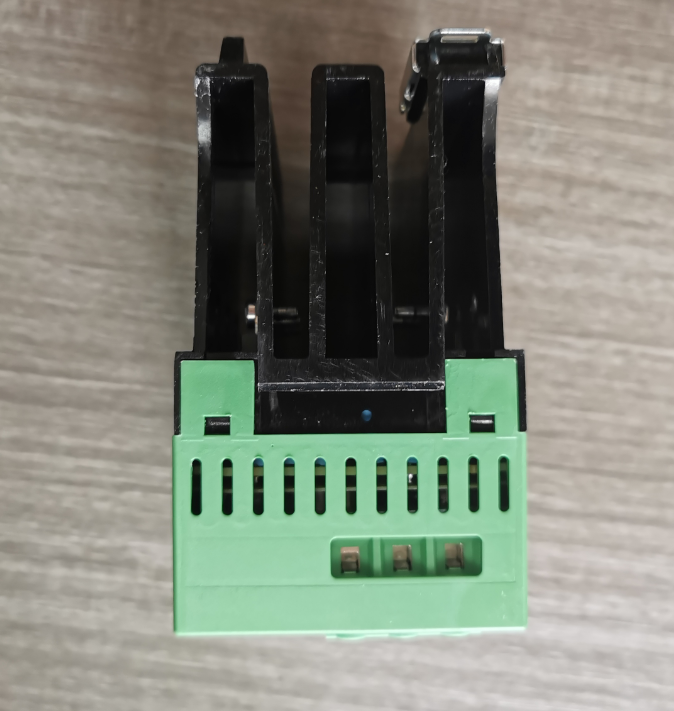

Phoenix contact 2964186 ELR W3/9-500 Reversing load relay 0

Phoenix contact 2964186 ELR W3/9-500 Reversing load relay 1
