Phoenix Contact 2744380 SUBCON-PLUS-PROFIB/AX/SC - D-SUB bus connector

  • Phoenix Contact 2744380 SUBCON-PLUS-PROFIB/AX/SC - D-SUB bus connector
  • Phoenix Contact 2744380 SUBCON-PLUS-PROFIB/AX/SC - D-SUB bus connector
  • Phoenix Contact 2744380 SUBCON-PLUS-PROFIB/AX/SC - D-SUB bus connector
  • Phoenix Contact 2744380 SUBCON-PLUS-PROFIB/AX/SC - D-SUB bus connector
Place of Origin Germany
Brand Name phoenix contact
Certification CCC,CE
Model Number 2744380
Minimum Order Quantity 1
Price $39/PC
Packaging Details carton
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type Data Plug Maximum Power Dissipation For Nominal Condition 0.025 W
Nominal Voltage UN 5 V Nominal Current IN 100 MA
Connection Method D-SUB Connector Stripping Length 5 Mm
Material ABS (metal-plated) Insertion > 200
Degree Of Protection IP40 Ambient Temperature -20 °C ... 75 °C
Leave a Message
Product Description

Phoenix Contact 2744380 In Stock

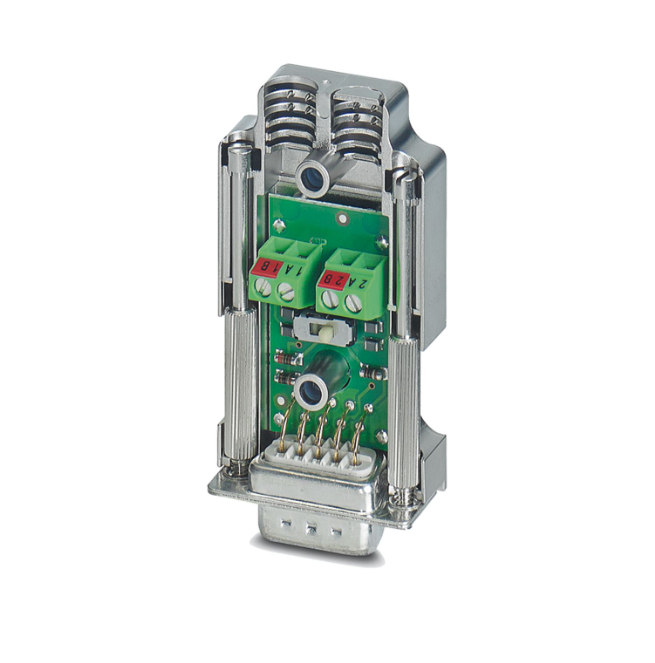

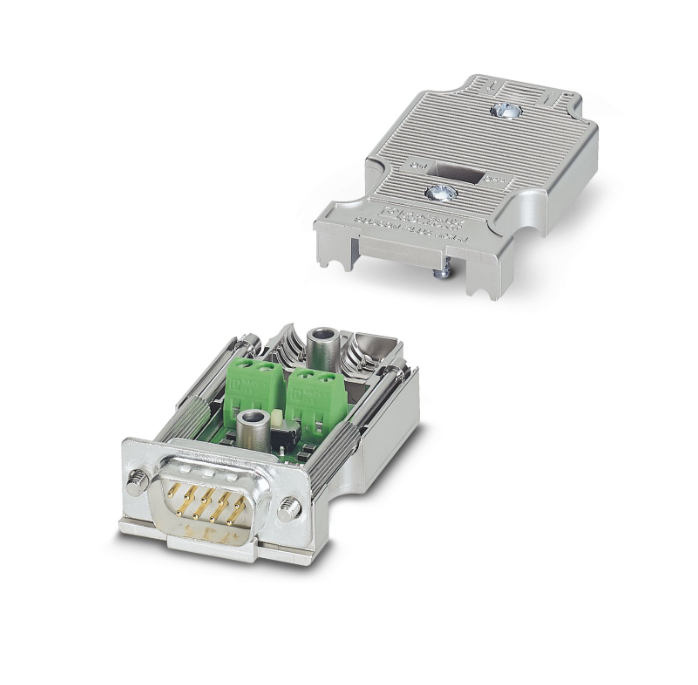

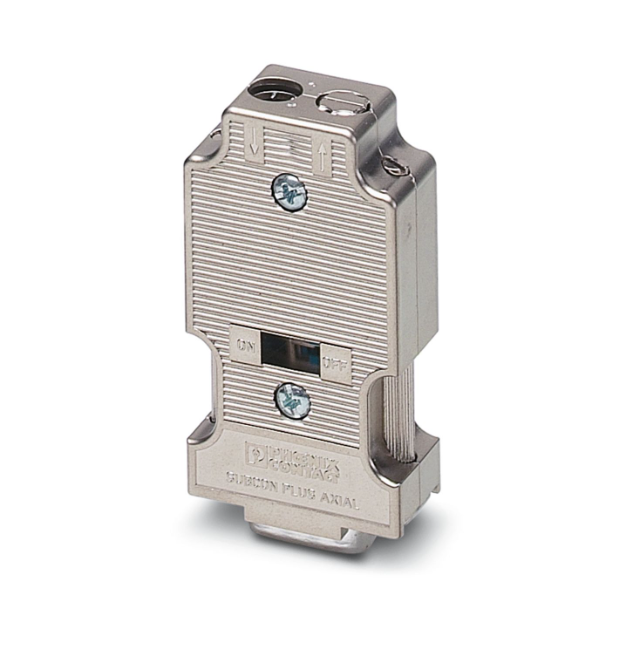

D-SUB connector, 9-pos., male connector, axial version with two cable entries, bus system: PROFIBUS DP up to 12 Mbps, termination resistor can be switched on via slide switch, pin assignment: 3, 5, 6, 8; screw connection terminal blocks

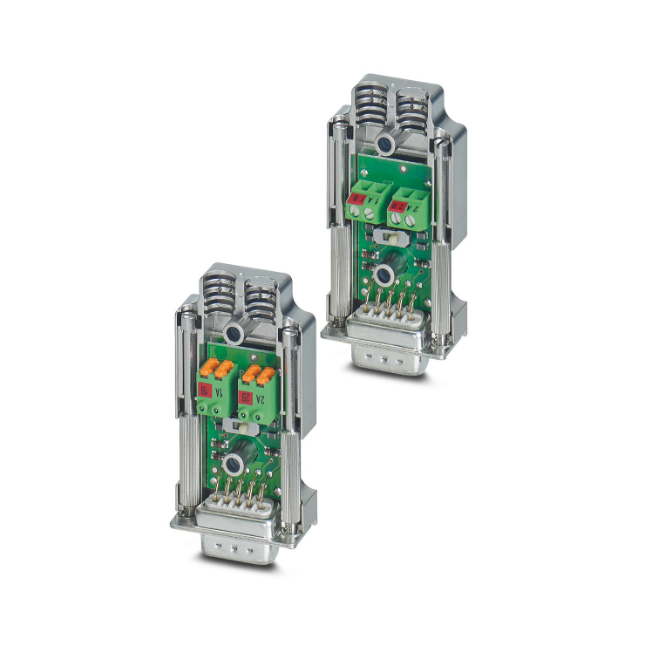

The D-SUB series, SUBCON-PLUS-PROFIB/... was specially designed for use in PROFIBUS systems up to 12 Mbps. Under field conditions, it allows convenient and fast connection of the incoming and outgoing bus cable. The terminating resistor is already integrated in all versions. It can be connected externally by means of a slide switch. At the same time, the outgoing bus segment is switched off. This makes it easy to start up segment by segment while incorrect terminations are avoided.



Phoenix Contact 2744380 SUBCON-PLUS-PROFIB/AX/SC - D-SUB bus connector 0
