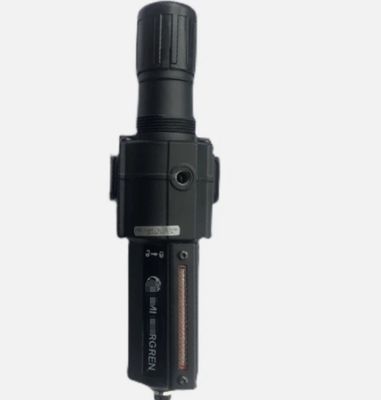

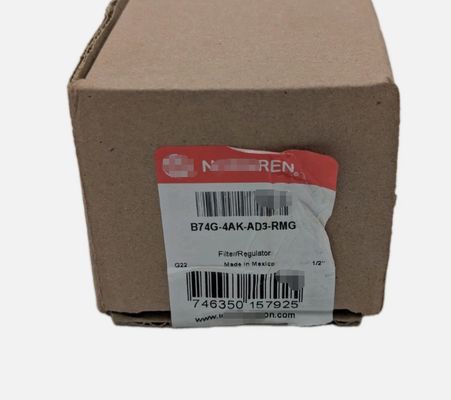

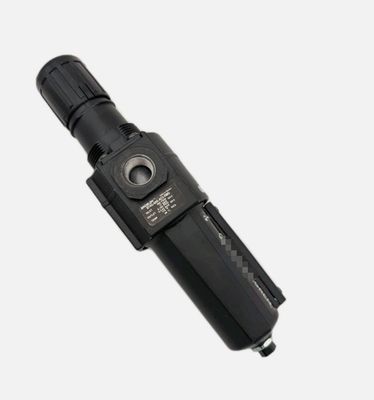

Norgren B74G-4AK-AD3-RMG Filter/Regulator, 1/2" PTF, Metal Bowl, Auto Drain, 5-150 PSI, 40um, B74G
| Place of Origin | Mexico |
|---|---|
| Brand Name | norgren |
| Certification | / |
| Model Number | B74G-4AK-AD3-RMG |
| Minimum Order Quantity | 1pc |
| Price | USD 70 UNIT |
| Packaging Details | original packing |
| Delivery Time | 1-3 working days |
| Payment Terms | T/T |
| Supply Ability | 1000pc/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Media | Compressed Air | Port Size | 1/2" PTF |
|---|---|---|---|
| Drain Type | Auto Drain | Bowl Material | Drain Type |
| Outlet Pressure Adjustment | 0.3 ... 10 Bar, 4 ... 145 Psi | MOQ | 1PC |
| Highlight | Norgren B74G filter regulator,1/2 PTF air filter regulator,metal bowl filter regulator auto drain |
||
Product Description
| Media | Compressed air |
|---|---|
| Operating Temperature | -34 ... 80 °C, -30 ... 176 °F |
| Port Size | 1/2" PTF |
| Drain Type | Auto drain |
| Gauge Port | 1/4" PTF |
| Filter Element | 40 μm |
| Adjustment | Knob |
| Maximum Inlet Pressure | 17 bar, 247 psi |
| Outlet Pressure Adjustment | 0.3 ... 10 bar, 4 ... 145 psi |
| Relieving / Non Relieving | Relieving |
| Flow | 38 dm3/sec, 81 scfm |
| Materials - Adjusting Knob | Acetal |
| Materials - Body | Aluminum alloy |
| Materials - Bonnet | Aluminum alloy |
| Materials - Bowl | Aluminum alloy |
| Materials - Elastomers | Chloroprene rubber (CR), Nitrile rubber (NBR) |
| Materials - Filter Element | Polypropylene (PP) |
| Dimensions - Height | 74 mm |
| Dimensions - Length | 288 mm |
| Dimensions - Width | 80 mm |
| Weight | 1.23 kg |
| Country of Origin | Mexico |

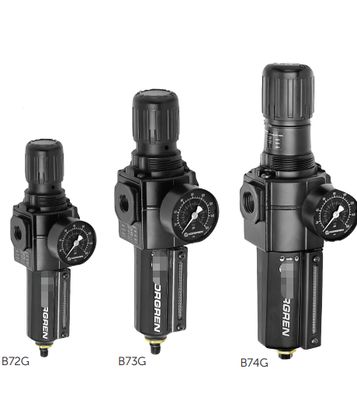

| Range | B74G |
| Series | Excelon |
| Brand |
IMI Norgren
|
