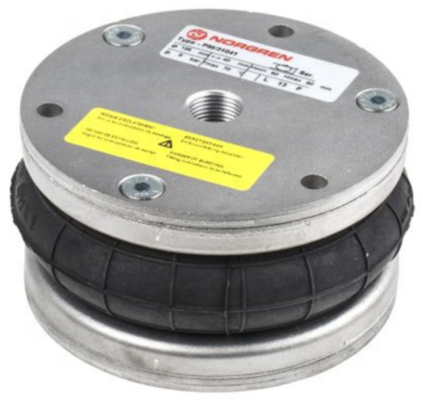

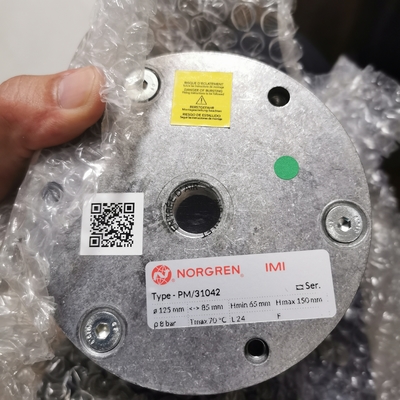

Hot Original NORGREN PM/31042 Air Bellow Single Acting 4-1/2" Diameter , 80mm Stroke Cheap in Stock
| Place of Origin | Germany |
|---|---|
| Brand Name | Norgren |
| Certification | - |
| Model Number | PM/31042 |
| Minimum Order Quantity | 1 |
| Price | USD85/PC |
| Packaging Details | Original |
| Delivery Time | in stock |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Surface | Polished | Power Source | Electric |
|---|---|---|---|
| Engine Type | PM/31042 | Operating Temperature | -30 ... 50 °C, -22 ... 122 °F |
| Highlight | NORGREN PM/31042 Air Bellow,Single Acting Air Bellow,NORGREN 1/2" Air Bellow |
||
Product Description
| body style | bellows | ||
| eu country of origin | germany | ||
| maximum stroke metric length millimetre | 320 mm | ||
| mil spec | available on request | ||
| non magnetic or magnetic | non-magnetic | ||
| operating pressure pressure bar min to max range | 0 ... 8 bar | ||
| operating temperature f temperature fahrenheit min to max range | -22 ... 122 °f | ||
| operation | single acting | ||
| length length millimetre | 65 mm | ||
| Port size | g3/8 | ||
| range | pm/31000 | ||
| theoretical force force newton | 5750 n |
| data performance shelf life | 10 years | ||
| materials | aluminium | ||
| Medium | compressed air | ||
| nominal diameter | 4-1/2" | ||
| number of convolutions | 2 | ||
| operating pressure psi pressure psi min to max range | 0 ... 116 psi | ||
| operating temperature temperature celsius min to max range | -30 ... 50 °c | ||
| diameter length millimetre | 125 mm | ||
| weight weight kilogram | 0.95 kg | ||
| product style | compact | ||
| stroke length metric length millimetre | 80 mm | ||
| Thread Type | bspp |
