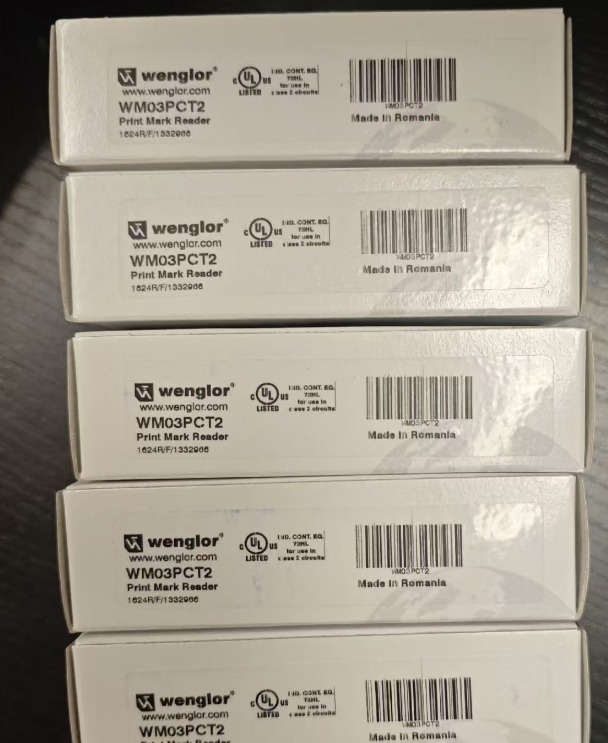

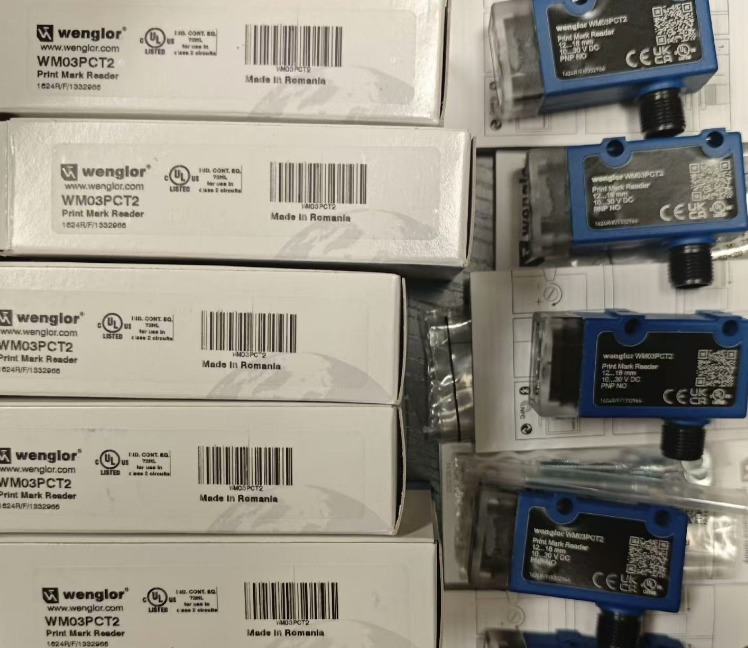

Wenglor WM03PCT2 Photoelectric Sensor
| Place of Origin | Germany |
|---|---|
| Brand Name | Wenglor |
| Certification | - |
| Model Number | WM03PCT2 |
| Minimum Order Quantity | 1 |
| Price | USD140/PC |
| Packaging Details | Original |
| Delivery Time | 2weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warrany | 1 Year | Application | Power Station, Building |
|---|---|---|---|
| Motor Type | Universal | Material | Stainless Steel |
Product Description
Optical Data |
|
|---|---|
| Working Range | 12 ... 18 mm |
| Working Distance | 15 mm |
| Resolution (Gray Scale) | 20 |
| Switching Hysteresis | < 2 % |
| Light Source | White Light |
| Wavelength | 400 ... 700 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | 1.5 × 2.5 mm |
Electrical Data |
|
|---|---|
| Supply Voltage | 10 ... 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Switching Frequency | 5 kHz |
| Response Time | 100 µs |
| Off-Delay | 20 ms |
| Off-Delay (RS-232) | 0 ... 2 s |
| Temperature Drift | < 2 % |
| Temperature Range | -25 ... 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Teach Mode | ZT, FT |
| Protection Class | III |
Mechanical Data |
|
|---|---|
| Setting Method | Teach-In |
| Housing Material | Plastic, PBT |
| Optic Cover | Plastic, PMMA |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 28 g |
Safety-relevant Data |
|
|---|---|
| MTTFd (EN ISO 13849-1) | 2,164.07 a |
Output |
|
|---|---|
| PNP NO/NC switchable | yes |
| RS-232 with Adapterbox | yes |
Adjustable parameters |
|
|---|---|
| Circuit | NC NC/NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates |
|---|
 |
Connection Diagram |
|---|
|
|
Ideal Working Distance |
|---|
|
a = working distance
b = Working Range
|
Ctrl. Panel |
|---|
|
01 = Switching Status Indicator
06 = Teach Button |
