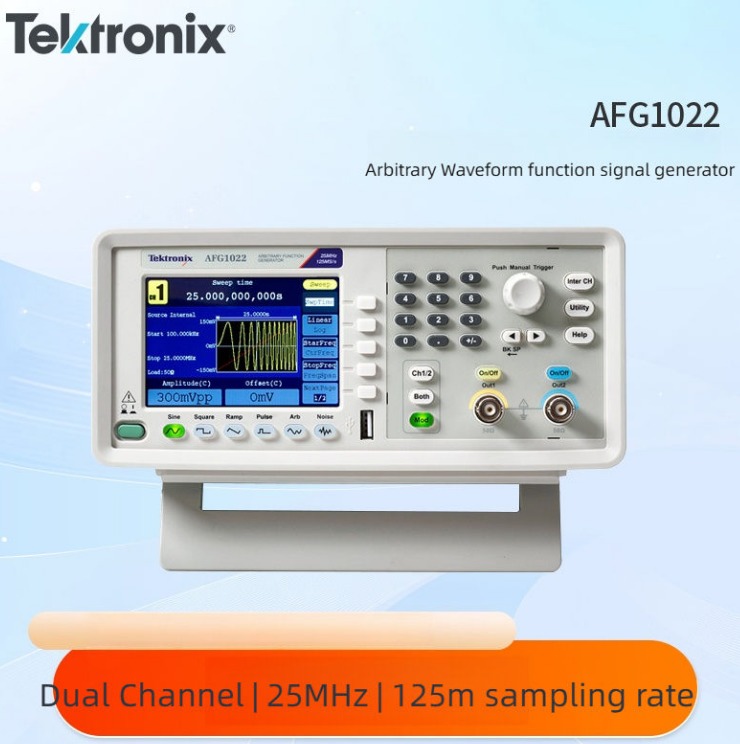

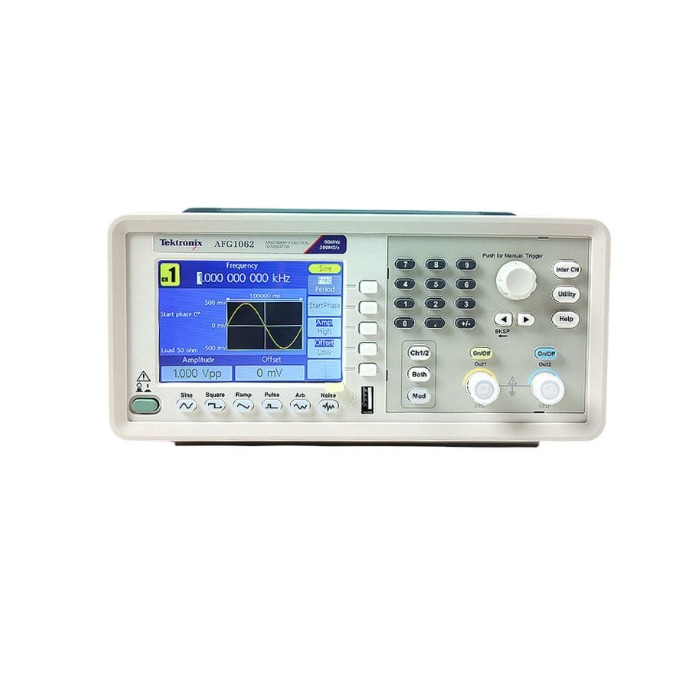

Tektronix Signal Source AFG1022 AFG1062 Arbitrary Waveform Function Signal Generator
| Place of Origin | China |
|---|---|
| Brand Name | TEKTRONIX |
| Certification | - |
| Model Number | AFG1022 AFG1062 |
| Minimum Order Quantity | 1 |
| Price | USD820/PC |
| Packaging Details | Original |
| Delivery Time | in stock |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warrany | 1 Year | Analog Bandwidth | 25 MHz/60 MHz |
|---|---|---|---|
| Sample Rate | 125 MS/s / 300 MS/s | Record Length | 8k Points/1M Points |
| Highlight | AFG1062 Function Signal Generator,Function Signal Generator AFG1022,Arbitrary Waveform Function Signal Generator |
||
Product Description

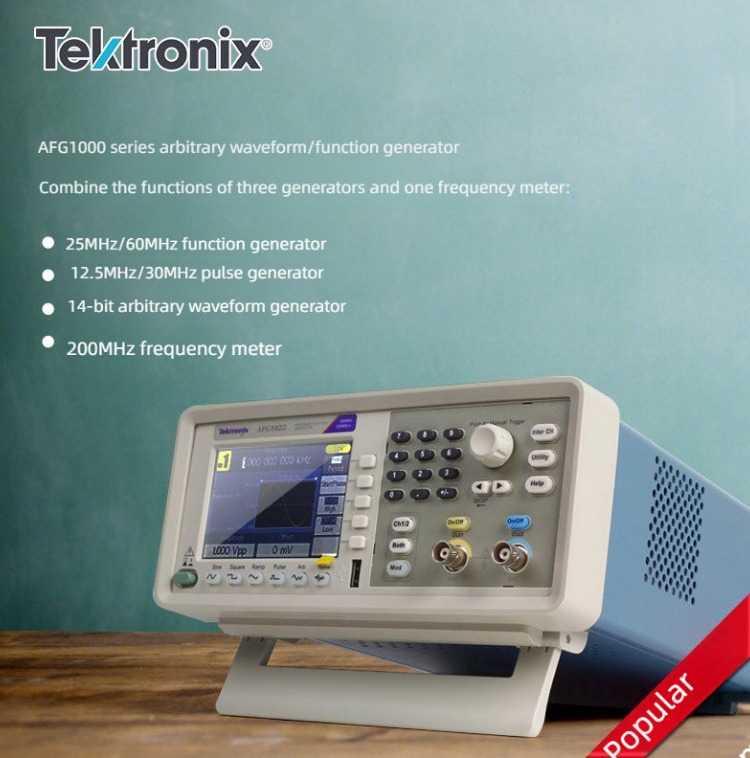

The AFG1000 Series Arbitrary Function Generator provides a waveform generation tool with the best price performance ratio. It includes two models with dual channels, up to 60 MHz bandwidth and up to 10 Vp-p output amplitude. The four run modes, 50 built-in frequently-used waveforms and the built-in 200 MHz frequency counter cover most waveform generation needs in your experiment and test jobs. The 3.95-inch TFT LCD, short-cut buttons, USB interface and PC software provide the most intuitive ways to configure the instrument.
Key performance specifications
- Dual-channel, 25 MHz or 60 MHz sine waveforms, 12.5 MHz or 30 MHz square waveforms
- 14 bits, 125 MS/s or 300 MS/s arbitrary waveforms with 8 k points record length
- Amplitude 1 mVp-p to 10 Vp-p into 50 Ω loads
Key features
- Continuous, sweeping, burst, and modulation modes (AM, FM, PM, ASK, FSK, PSK, PWM) covers most requirements for students and other users to get the experiments/test job done
- 64-MByte internal non-volatile memory for arbitrary waveform storage
- Built-in 200 MHz counter with 6-digit resolution offers an easy and precise way of frequency/period/pulse width/duty cycle measurement
- Standard USB host/device for memory expansion and remote control

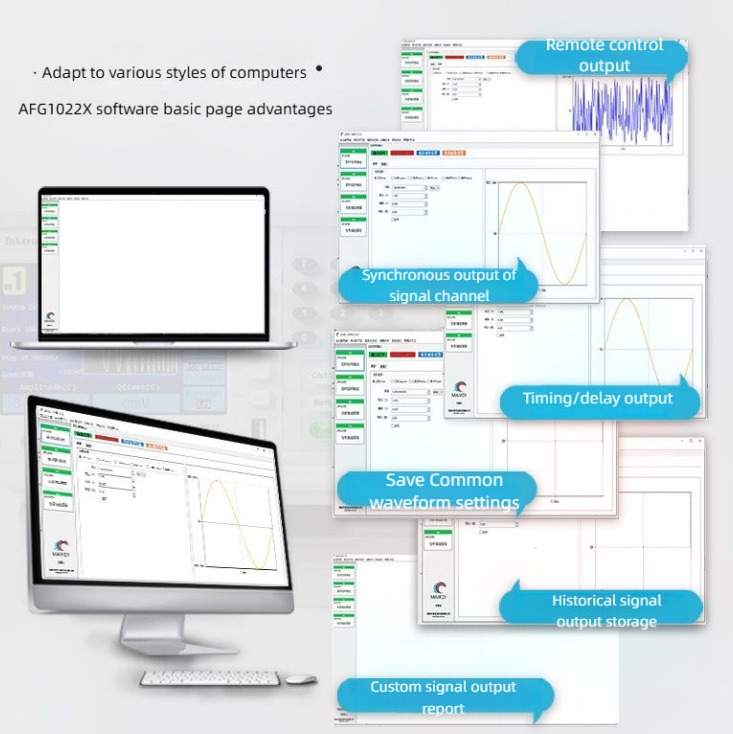

- Free ArbExpress makes user defined waveforms editing extremely easy through an external USB memory stick
- Standard 5-year warranty
Applications
- Electric and electronics experiments
- Communications experiments
- Sensor simulation
- Functional test
