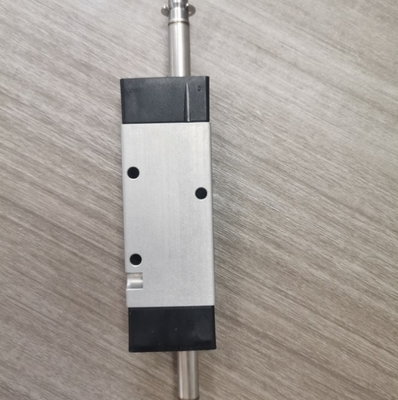

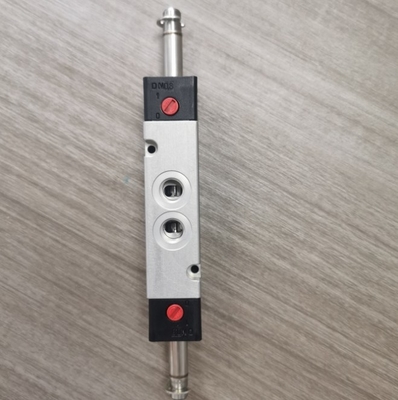

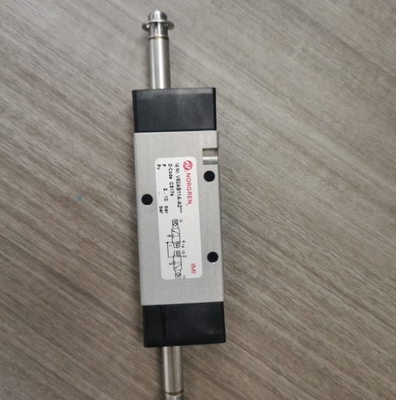

NORGREN V60AB11A-A2 V60 Series Inline Solenoid Valve, G1/8, 5/3, APB, Solenoid Pilot / Solenoid Pilot
| Place of Origin | CHINA |
|---|---|
| Brand Name | NORGREN |
| Certification | ce |
| Model Number | V60AB11A-A2 |
| Minimum Order Quantity | 1 |
| Price | USD$115/PC |
| Packaging Details | ORIGINAL |
| Delivery Time | 10-12WEEKS |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 500PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Medium | Compressed Air | Operating Temperature | -10 ... 50 °C, 14 ... 122 °F |
|---|---|---|---|
| Operating Pressure | 3 ... 10 Bar, 44 ... 145 Psi | Port Size | G1/8 |
| Actuation | Solenoid Pilot / Solenoid Pilot | ||
| Highlight | G1/8 inline solenoid valve,V60 series inline solenoid valve,5/3 inline solenoid valve |
||
You can tick the products you need and communicate with us in the message board.
Product Description
| Medium | Compressed air |
|---|---|
| Operating Temperature | -10 ... 50 °C, 14 ... 122 °F |
| Operating Pressure | 3 ... 10 bar, 44 ... 145 psi |
| Port Size | G1/8 |
| Actuation | Solenoid pilot / Solenoid pilot |
| Coil Code | QM/48/13J/21 |
| Function | APB |
| Valve operation | 5/3 |
| Flow | 500 l/m, 18 scfm |
| Materials - Body | Aluminium |
| Materials - Seals | NBR, FPM |
| Certification - IP Rating | IP65 (with sealed plug) |
| Dimensions - Height | 35 mm |
| Dimensions - Length | 188.5 mm |
| Dimensions - Width | 22 mm |
| Weight | 0.35 kg |
| Country of Origin | Czechia |
| Range | V60…63 |
| Series | V60 |
| Brand | IMI Norgren |
