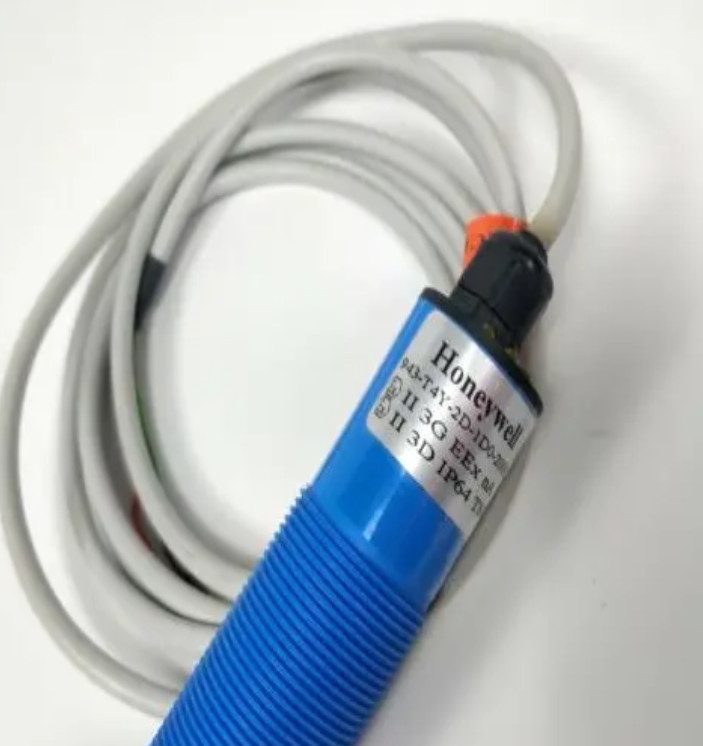

Honeywell 943-T4Y-2D-1D0-200EEX Ultrasonic Proximity Sensor Micro Switch

2 switching outputs PNP NO and NPN NO Beam angle: 8° Supply voltage: 12 to 30 V Sealing: IP67 M30 Housing: M30 x 1,5 mm plastic (PBTB) Max. sensing distance: 3500 mm Min. sensing distance: 300 mm Switching frequency: 1.0 Hz Repeatability: 0,2 % or 2 mm OUTPUT TERMINATION REFERENCE PNP, 2 NO/NC Connector 943-T4V-2D-001-130E PNP, 2 NO/NC Cable 943-T4Y-2D-001-130E NPN, 2 NO/NC Connector 943-T4V-2D-002-130E NPN, 2 NO/NC Cable 943-T4Y-2D-002-130E M18 Housing: M18 x 1,0 mm plastic (PBTB) Max. sensing distance: 2000 mm Min. sensing distance: 200 mm Switching frequency: 1.2 Hz Repeatability: 0,2 % or 2 mm OUTPUT TERMINATION REFERENCE PNP, 2 NO/NC Connector 943-F4V-2D-001-180E PNP, 2 NO/NC Cable 943-F4Y-2D-001-180E NPN, 2 NO/NC Connector 943-F4V-2D-002-180E NPN, 2 NO/NC Cable 943-F4Y-2D-002-180E Max. sensing distance: 800 mm Min. sensing distance: 100 mm Switching frequency: 4.7 Hz Repeatability: 0,2 % or 1 mm OUTPUT TERMINATION REFERENCE PNP, 2 NO/NC Connector 943-F4V-2D-001-300E PNP, 2 NO/NC Cable 943-F4Y-2D-001-300E NPN, 2 NO/NC Connector 943-F4V-2D-002-300E NPN, 2 NO/NC Cable 943-F4Y-2D-002-300E Max. sensing distance: 500 mm Min. sensing distance: 60 mm Switching frequency: 4.7 Hz Repeatability: 0,2 % or 1 mm OUTPUT TERMINATION REFERENCE PNP, 2 NO/NC Connector 943-F4V-2D-001-330E PNP, 2 NO/NC Cable 943-F4Y-2D-001-330E NPN, 2 NO/NC Connector 943-F4V-2D-002-330E NPN, 2 NO/NC Cable 943-F4Y-2D-002-330E
