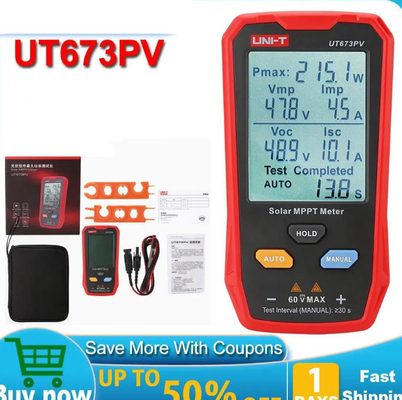

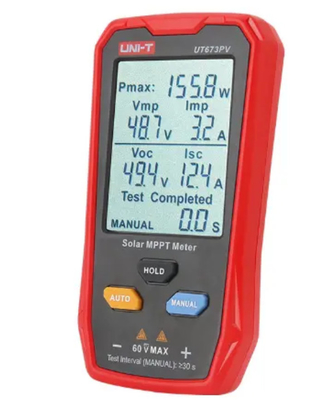

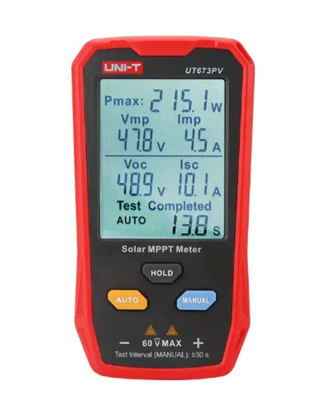

UNI-T UT673PV Solar MPPT Meter Large LCD Display 52 * 66mm and ODM Support for Customization

UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current.

Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users.

Specification
Max power measurement	5～800W	±(1.0%＋10)
Max power current(DC)	0～35A	±(1.5%＋5)
Max power voltage(DC)	12～60V	±(1.5%＋5)
Open circuit current(DC)	12～60V	±(1.5%＋5)
Short circuit current(DC)	0～35A	±(1.5%＋5)
General Features
Display	Large LCD (52 * 66mm)
Reverse polarity connect Protection	√
Over voltage protection	√
Over current protection	√
Over temperature protection	√
Over power protection	√
Manual/Auto MPPT test	√
Data hold	√
Power supply	No battery needed, powered by solar panel
Ovecategory	CAT 0 60V
Certificate	CE, cETLus, RoHS
