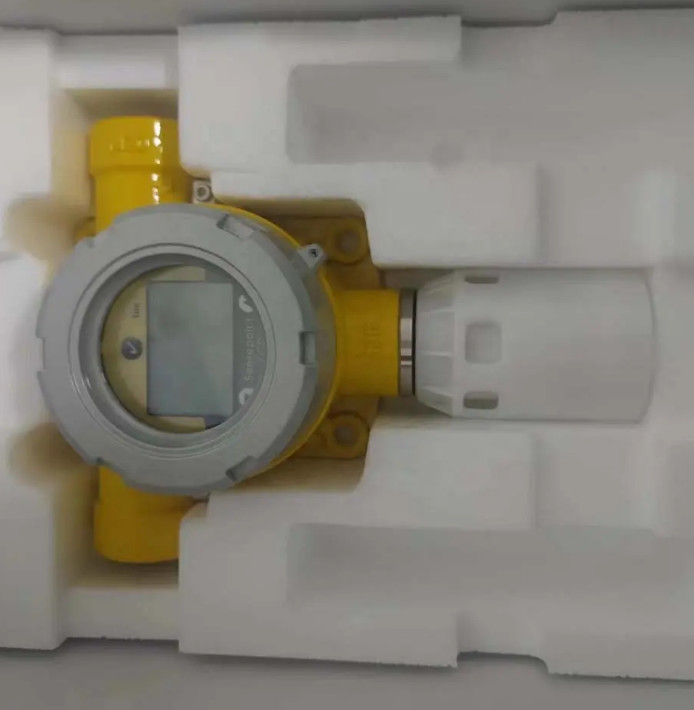

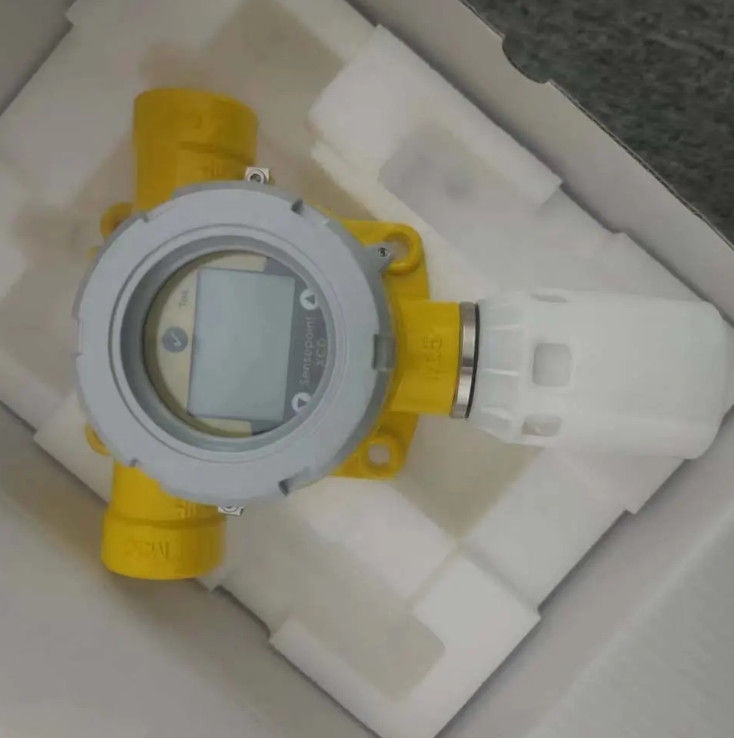

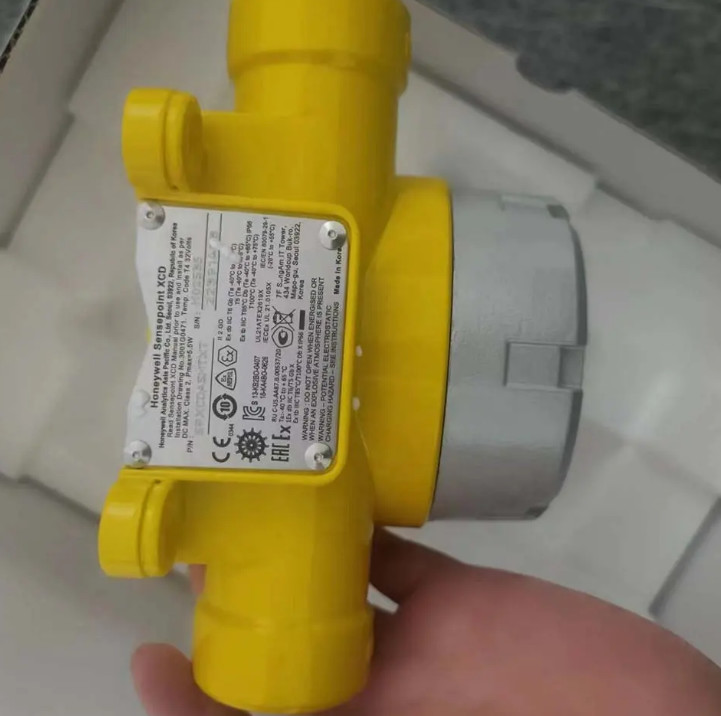

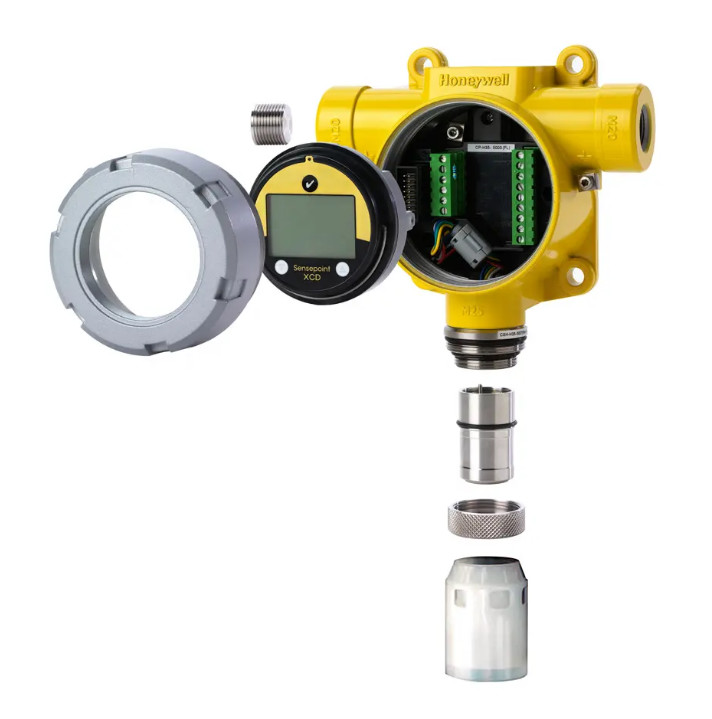

NEW ORIGINAL STOCK Sensepoint XCD SPXCDXSHXSS SPXCDXSRXSS Gas Detector

Estimated Lead Time : 1 - 10 Working Days

Manufacturer : Honeywell

Product No. : SPXCDXSHXSS

Product type : Spare XCD Sensors

Hydrogen Sulphide 0-50.0ppm (10.0 to 100.0ppm, 1.0ppm)

IP Rating : IP66 in accordance with EN60529:1992

Certified Temperature Range : -40ºC to +75ºC (-40ºF to +167ºF) Note: The detector display may become illegible at temperatures below -20°C, but the detector continues its gas monitoring function. The display is not damaged and recovers when the
temperature rises back above -20°C.

Operating Humidity Continuous : 20-90%RH (non-condensing), Intermittent 10-99%RH (non-condensing)

Operating Pressure : 90-110kPa (EC Toxic Sensors), 80-12kPa (EC Oxygen, Catalytic Bead and Infrared Sensors)

Storage Conditions : -25°C to +65°C (-13°F to 131°F)

Standard Supply : Sensepoint XCD is supplied complete with integral wall mounting plate, 2 x M20 cable entry (ATEX/IECEx) or 2 x ¾”NPT conduit entries (UL/cUL),
1 x M20 or 1 x ¾”NPT plug, Allen key for locking screw, weatherproof cap, operating magnet, sensor cartridge with retainer, quick start guide and instruction
manual CD. Default settings, ranges and calibrations are 100% tested at the factory. Each unit is supplied with a calibration and test certificate.

Shipping carton dimensions: L312mm (12.3”) x W223mm (8.8”) x D110mm (4.3”)

Approximate weight: Stainless Steel 5.5kg (12.1lbs)

Shipping Weight : 9 Kg
