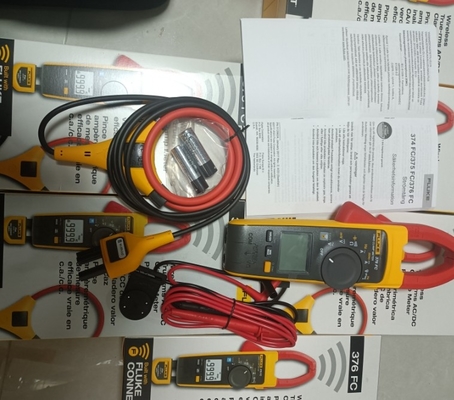

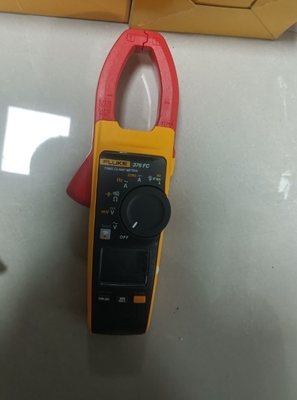

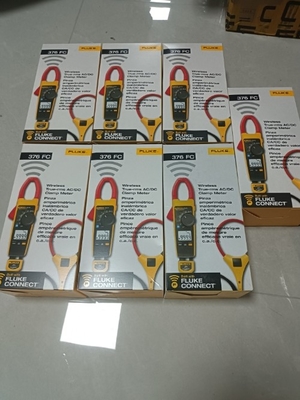

Fluke 376 FC True-RMS Clamp Meter with iFlex 2500 A Range 0.1 A Resolution

  • Fluke 376 FC True-RMS Clamp Meter with iFlex 2500 A Range 0.1 A Resolution
  • Fluke 376 FC True-RMS Clamp Meter with iFlex 2500 A Range 0.1 A Resolution
  • Fluke 376 FC True-RMS Clamp Meter with iFlex 2500 A Range 0.1 A Resolution
  • Fluke 376 FC True-RMS Clamp Meter with iFlex 2500 A Range 0.1 A Resolution
  • Fluke 376 FC True-RMS Clamp Meter with iFlex 2500 A Range 0.1 A Resolution
Place of Origin china
Brand Name Fluke
Certification CE
Model Number 376 FC
Minimum Order Quantity 1
Price USD$350
Packaging Details carton
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Range 2500 A Resolution 0.1 A
Accuracy 3% ±5 Digits (5 – 500 Hz)
Highlight

2500 A Range Clamp Meter

,

0.1 A Resolution Clamp Meter
Leave a Message
Product Description
General Specifications
AC Current via Jaw
Range 999.9 A
Resolution 0.1 A
Accuracy 2% ±5 digits (10 Hz to 100 Hz)
2.5% ±5 digits (100-500 Hz)
Crest Factor (50 Hz/60 Hz) 3 @ 500 A
2.5 @ 600 A
Add 2% for C.F. >2

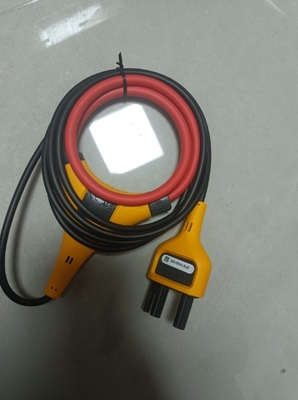

AC Current via Flexible Current Probe
Range 2500 A
Resolution 0.1 A (≤ 600 A)
1 A (≤ 2500 A)
Accuracy 3% ±5 digits (5 – 500 Hz)
Crest Factor (50/60Hz) 3.0 at 1100 A
2.5 at 1400 A
1.42 at 2500 A
Add 2% for C.F. > 2
  i2500-10 Flex i2500-18 Flex i2500-36 Flex
A
Distance from Optimum 0.5 in (12.7 mm) 1.4 in (35.6 mm) 4.8 in (122.2 mm)
Error ±0.5 % ±0.5 % ±0.5 %
B
Distance from Optimum 0.8 in (20.3 mm) 2.0 in (50.8 mm) 5.3 in (133.6 mm)
Error ±1.0 % ±1.0 % ±1.0 %
C
Distance from Optimum 1.4 in (35.6 mm) 2.5 in (63.5 mm) 5.8 in (147.6 mm)
Error ±2.0 % ±2.0 % ±2.0 %
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range 999.9 A
Resolution 0.1 A
Accuracy 2% ±5 digits
AC Voltage
Range 1000 V
Resolution 0.1 V (≤600.0 V)
1 V (≤1000 V)
Accuracy 1% ±5 digits (20 Hz to 500 Hz)
DC Voltage
Range 1000 V
Resolution 0.1 V (≤600.0 V)
1 V (≤1000 V)
Accuracy 1% ±5 digits
mV dc
Range 500.0 mV
Resolution 0.1 mV
Accuracy 1% ±5 digits
Frequency via Jaw
Range 5.0 Hz to 500.0 Hz
Resolution 0.1 Hz
Accuracy 0.5% ±5 digits
Trigger level 5 Hz to 10 Hz, ≥10 A
10 Hz to 100 Hz, ≥5 A
100 Hz to 500 Hz, ≥10 A
Frequency via Flexible Current Probe
Range 5.0 Hz to 500.0 Hz
Resolution 0.1 Hz
Accuracy 0.5% ±5 digits
Trigger level 5 Hz to 20 Hz, ≥25 A
20 Hz to 100 Hz, ≥20 A
100 Hz to 500 Hz, ≥25 A
