Foxboro SRI986-BIDS7ZZZNA Electro-Pneumatic Positioner IP65 Protection Class For Industrial
| Place of Origin | USA |
|---|---|
| Brand Name | Foxboro |
| Certification | CCC,CE |
| Model Number | SRI986-BIDS7ZZZNA |
| Minimum Order Quantity | 1 |
| Price | USD$1120/PC |
| Packaging Details | Original case |
| Delivery Time | 3 days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Electro-Pneumatic Positioner | Version | Single Acting |
|---|---|---|---|
| Input | 4 - 20 MA | Weight | 4kg |
| Ambient Temperature | –40 ... 80°C | Protection Class | IP65 |
| Highlight | IP65 Protection Class Electro-Pneumatic Positioner,SRI986-BIDS7ZZZNA Electro-Pneumatic Positioner,Industrial Electro-Pneumatic Positioner |
||
Product Description

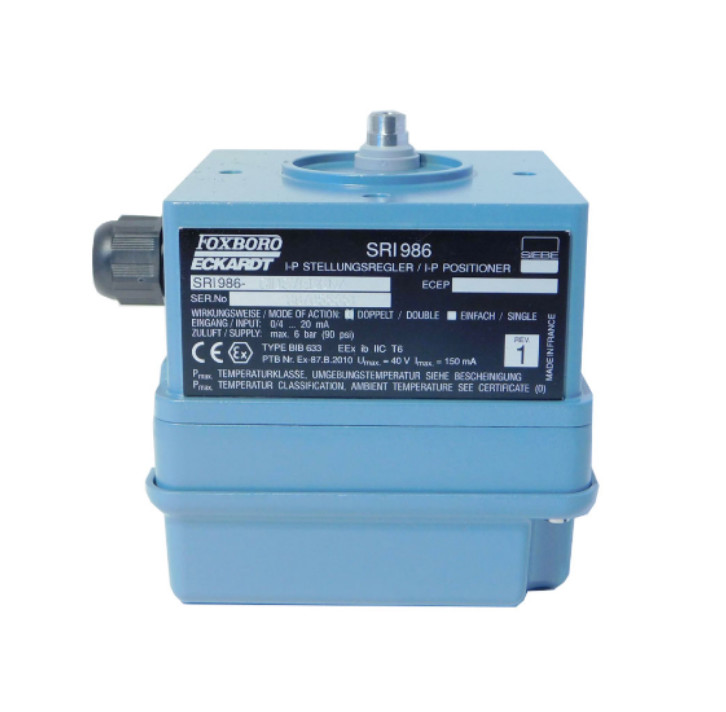

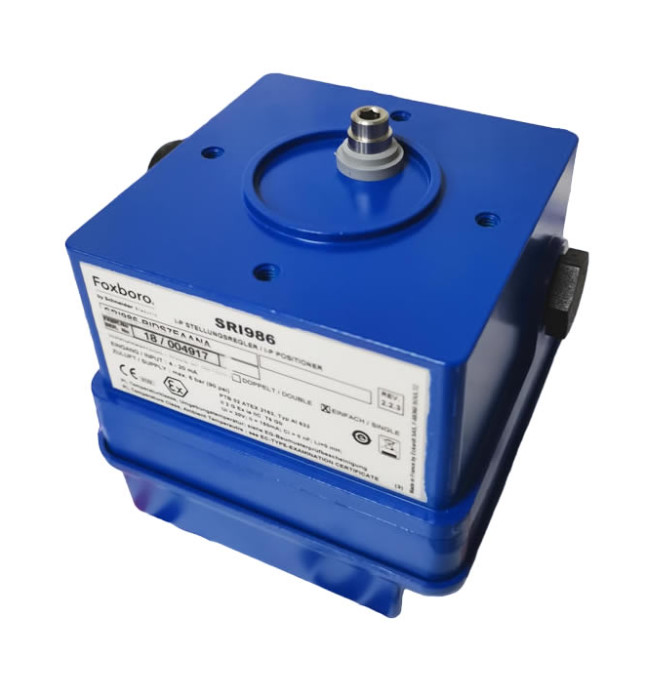

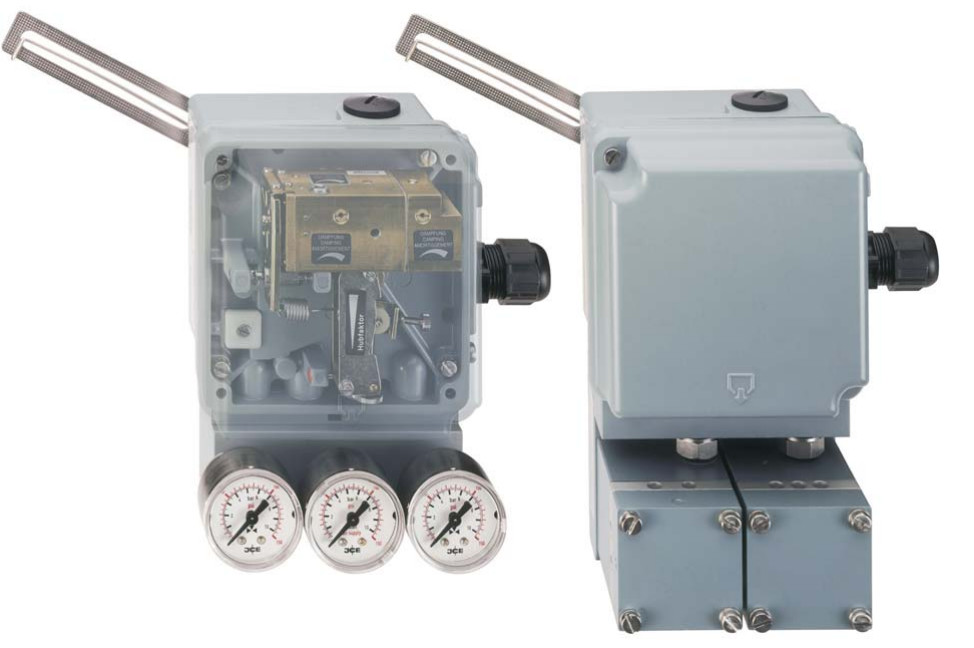

Foxboro Pneumatic Valve Positioner SRI986-BIDS7ZZZNA

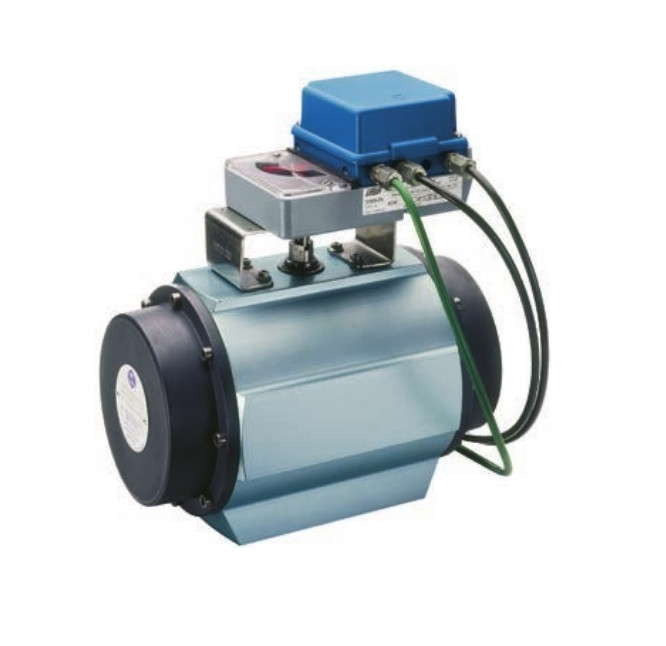

The SRI986 Positioner is for operation of pneumatic valve actuators from control systems and electrical controllers with electric control signals. It is used to reduce the adverse effects of valve friction, for higher thrust and shorter positioning time
FEATURES
• Independent adjustment of stroke range and zero
• Adjustable amplification and damping
• Split range up to 3-fold possible
• Input signal 0/4 to 20 mA, 0/2 to 10 V
• Supply pressure up to 6 bar (90 psig)
• Low vibration effect in all directions
• Mounting according to IEC 534, part 6 (NAMUR)
• Rotation adapter for angles up to 120
• Explosion protection: II 2 G EEx ia IIC T6 according to ATEX or intrinsic safe according to FM and CSA
• EMC in accordance with the international standards and laws
• Modular system of additional equipment - Limit switches - Position transmitter - Booster - Connection manifold
