Dwyer Series CDWP Carbon Dioxide Transmitter CDWP-05W-C1,CDWP-10W-C1
| Place of Origin | USA |
|---|---|
| Brand Name | Dwyer |
| Certification | CCC,CE |
| Model Number | CDWP-05W-C1,CDWP-10W-C1 |
| Minimum Order Quantity | 1 |
| Price | USD$570/PC |
| Packaging Details | Original case |
| Delivery Time | 6 Weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Sensor | NDIR | Rang | CO2: 0 To 2000, 0 To 5000, Or 0 To 10000 PPM |
|---|---|---|---|
| Accuracy | CO2: ±40 PPM + 3% Of Reading | Temperature Dependence | ±8 PPM/°C At 1100 PPM |
| Non-Linearity | 16 PPM | Pressure Dependence | 0.13% Of Reading Per Mm Of Hg |
| Response Time | 300 S (t63) (2000 And 5000 PPM); 2 Min For 90% Step Change (10000 PPM) | Temperature Limits | 32 To 122°F |
| Humidity Limits | 10 To 95% RH | Power Requirements | 16-35 VDC Or 19-28 VAC |
| Power Consumption | Average: 2 W; Peak: 3.75 W | Output | 4-20 MA |
| Enclosure Rating | IP54 | Mounting Orientation | Vertically, With Electrical Connections Pointing Downward |
| Highlight | CDWP-10W-C1 Carbon Dioxide Transmitter,CDWP-05W-C1 Carbon Dioxide Transmitter,Dwyer Series CDWP Carbon Dioxide Transmitter |
||
Product Description

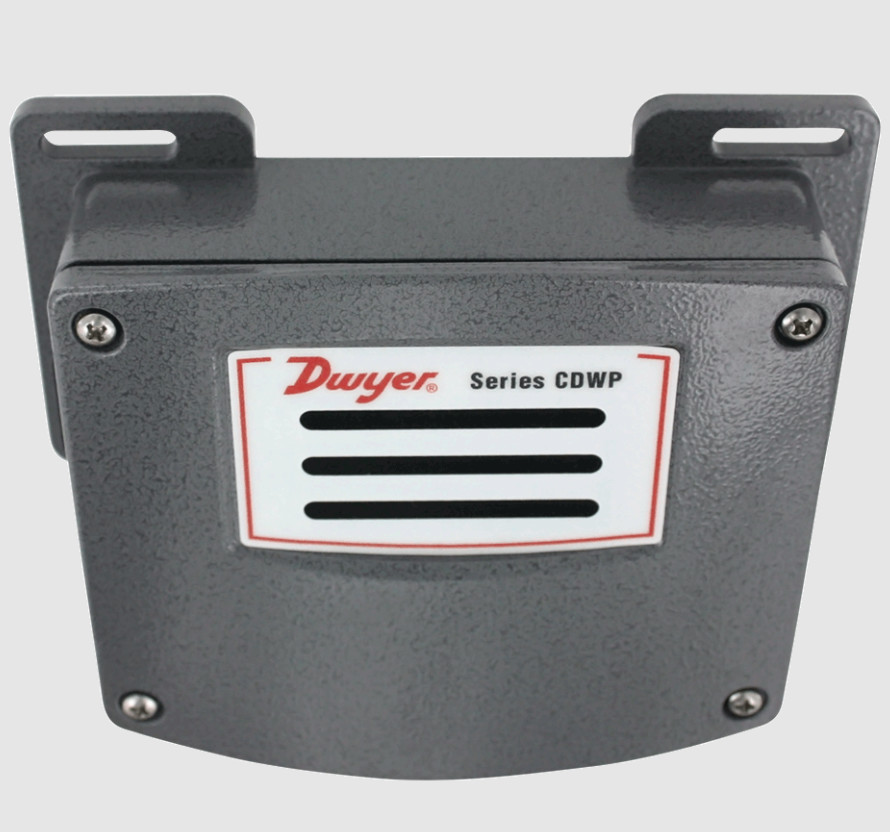

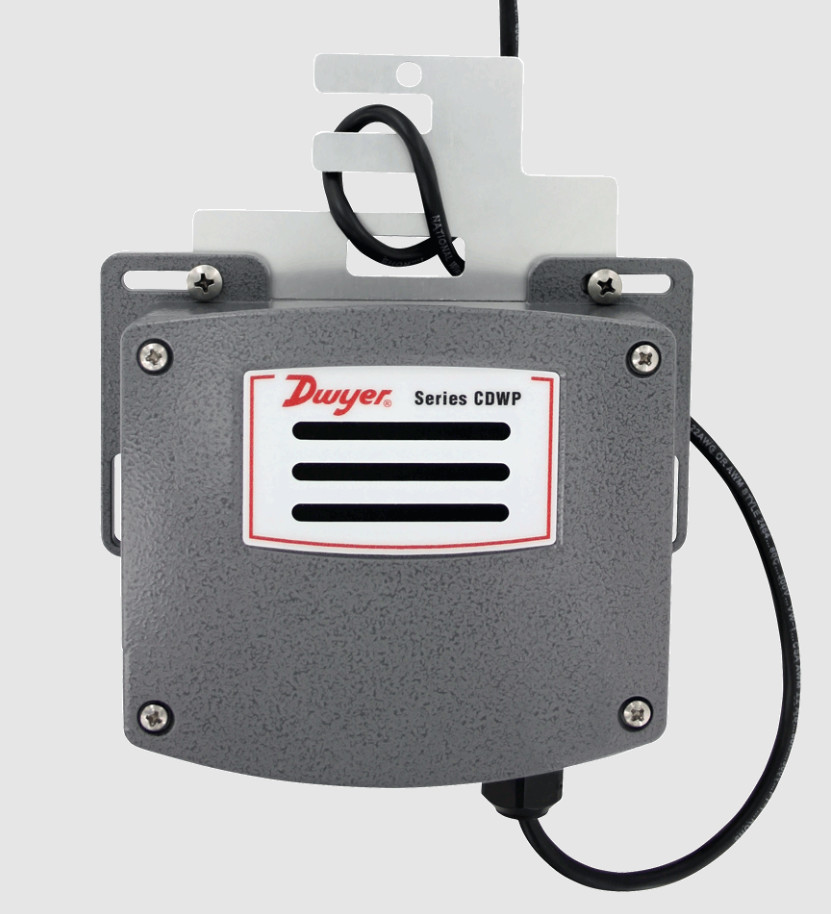

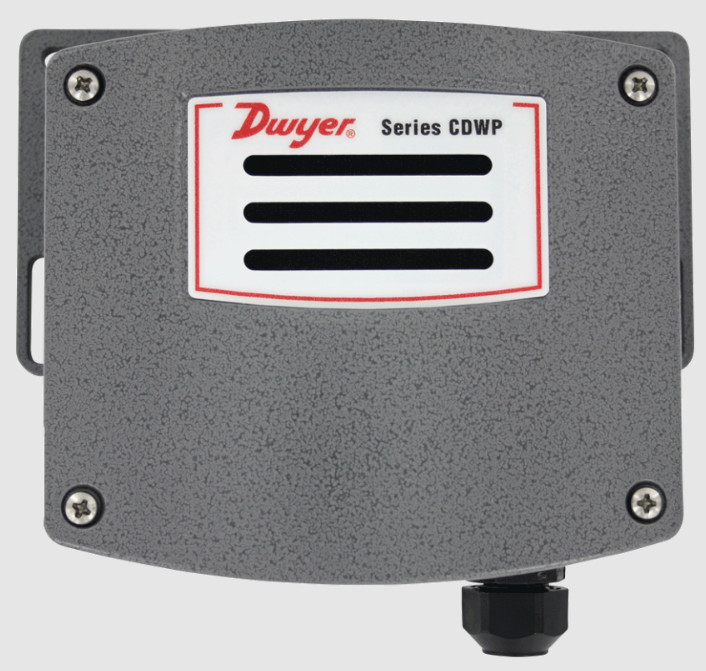

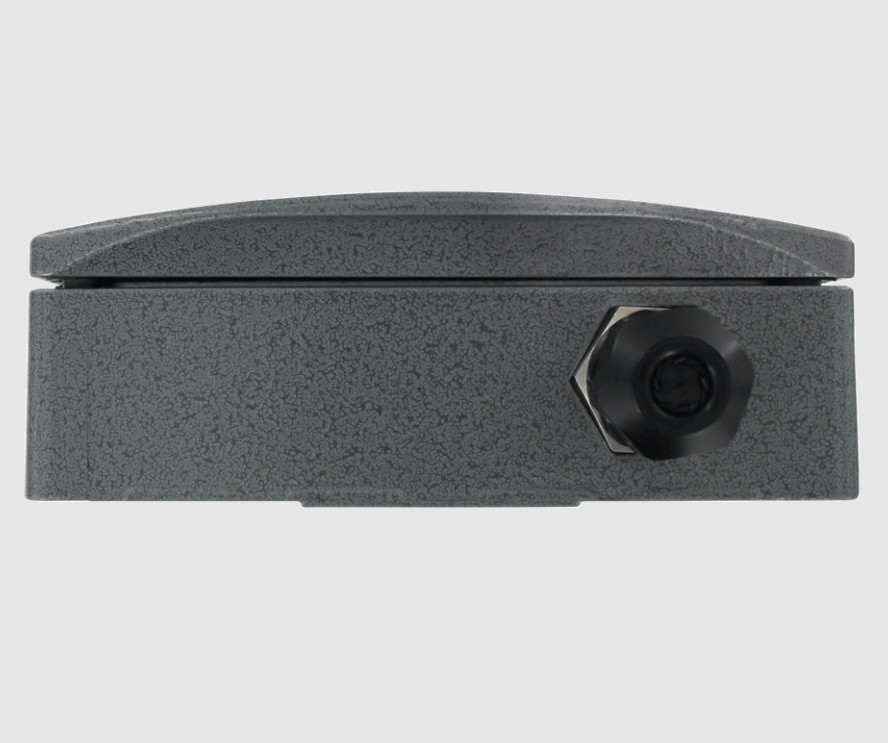

Dwyer Series CDWP Carbon Dioxide Transmitter CDWP-05W-C1,CDWP-10W-C1
The Series CDWP Carbon Dioxide Transmitter accurately monitors the CO2 concentration in industrial and indoor environments to help achieve energy savings. The CDWP utilizes a rugged IP54 aluminum housing with an exterior gray finish coat that was tested to withstand a 168 hour salt spray corrosion test. This ruggedized housing helps to protect the sensor from splashing liquid and airborne dust or debris making the Series CDWP a great fit for animal husbandry applications and confined feeding operations
Features
No durability concerns with the rugged aluminum housing
No water ingress or corrosion concerns with the IP54 housing that withstands 168 hour salt spray testing
Reduce operation costs using a low energy, reliable, and repeatable CO2 sensor
