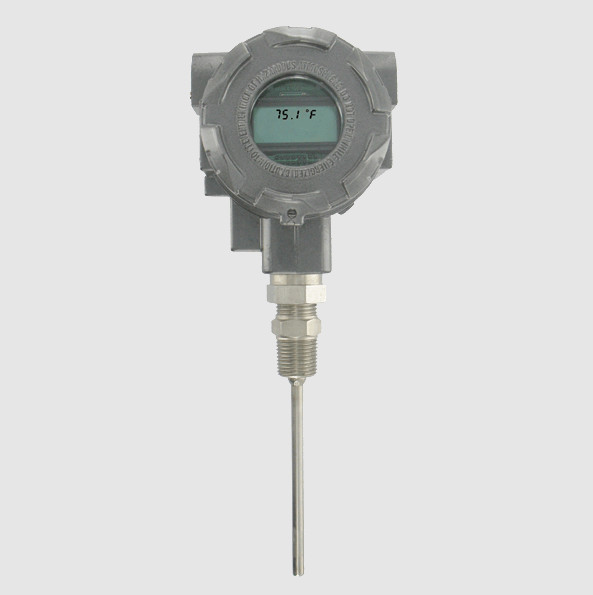

Dwyer Explosion-Proof RTD Temperature Transmitter TTE-104-W-LCD
| Place of Origin | USA |
|---|---|
| Brand Name | Dwyer |
| Certification | CCC,CE |
| Model Number | TTE-104-W-LCD |
| Minimum Order Quantity | 1 |
| Price | USD$810/PC |
| Packaging Details | Original case |
| Delivery Time | 6 Weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temperature Sensor | Pt1000, 0.00385 DIN | Temperature Limits | Transmitter: ±0.1% FS; Probe: ±0.3% FS |
|---|---|---|---|
| Thermal Drift Effects | ±0.02%/°C Max | Response Time | 250 Ms |
| Wetted Materials | 316 SS | Process Connection | 1/2" Male NPT Or 1/2 Male BSPT |
| Conduit Connection | 1/2" Female NPT Or M20 | Probe Length | 2" To 18" |
| Pressure Limits | 2000 Psi | Power Requirements | 10 To 35 VDC |
| Output Signal | 4 To 20 MA | ||
| Highlight | Explosion-Proof Temperature Transmitter,LCD RTD Temperature Transmitter,Explosion-Proof RTD Temperature Transmitter |
||
Product Description
Dwyer Explosion-Proof RTD Temperature Transmitter TTE-104-W-LCD
Features
- FM approved for Class I, Groups B, C, D; Class II, Groups E, F, G classified explosive environments
- Optional LCD
- Output span selected from seven common ranges or user determined
