Dwyer Temperature/Process Loop Controllers 16G-23-11 16G-23-31
| Place of Origin | USA |
|---|---|
| Brand Name | Dwyer |
| Certification | CCC,CE |
| Model Number | 16G-23-11 16G-23-31 |
| Minimum Order Quantity | 1 |
| Price | USD$180/PC |
| Packaging Details | Original case |
| Delivery Time | 6 Weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Inputs | Thermocouple, RTD, DC Voltages Or DC Current | Display | Process Value: 4 Digit, 0.47" H (12mm), Orange LCD; Set Point Value: 4 Digit, 0.47" H (12mm), Green LCD |
|---|---|---|---|
| Accuracy | ± 1.8°F Plus ±0.3% Of Span (±1°C Plus ±0.3% Of Span) At 77°F (25°C) After 20 Minutes Warm Up | Power Requirements | 100 To 240 VAC -20/+8%, 50/60 Hz; Optional 24 VDC, ±10% |
| Power Consumption | 5 VA Max | Operating Temperature | 32 To 122°F |
| Storage Temperature | -42 To 150°F | Front Panel Rating | IP66 |
| Highlight | Dwyer Temperature/Process Loop Controllers,16G-23-11 Temperature/Process Loop Controllers,16G-23-31 Temperature/Process Loop Controllers |
||
Product Description

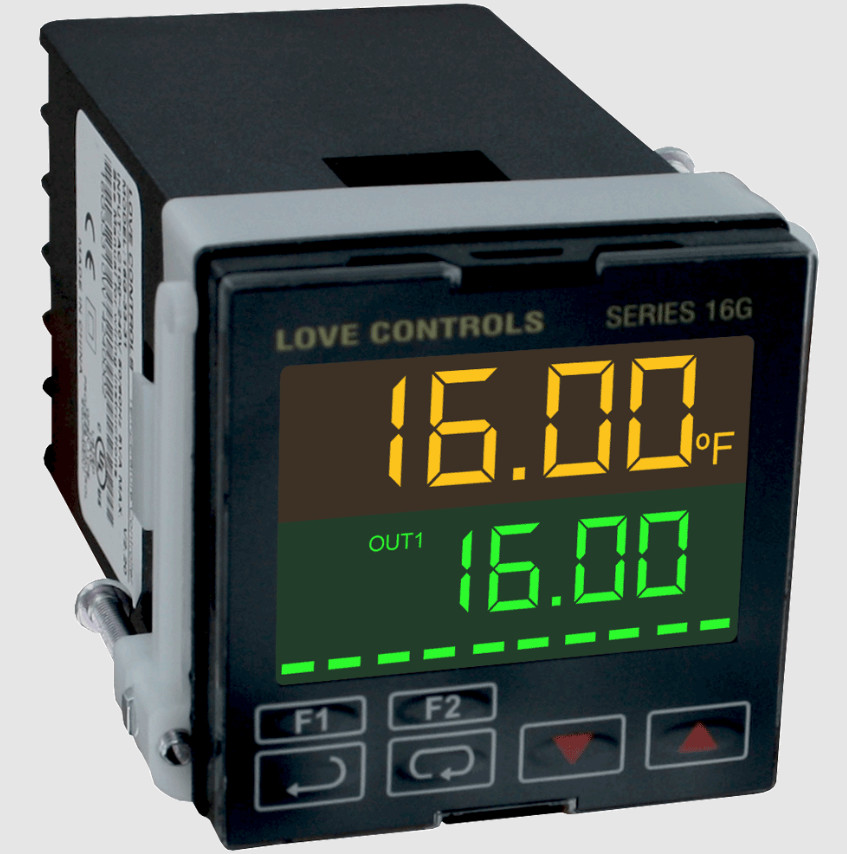

Dwyer Temperature/Process Loop Controllers 16G-23-11 16G-23-31

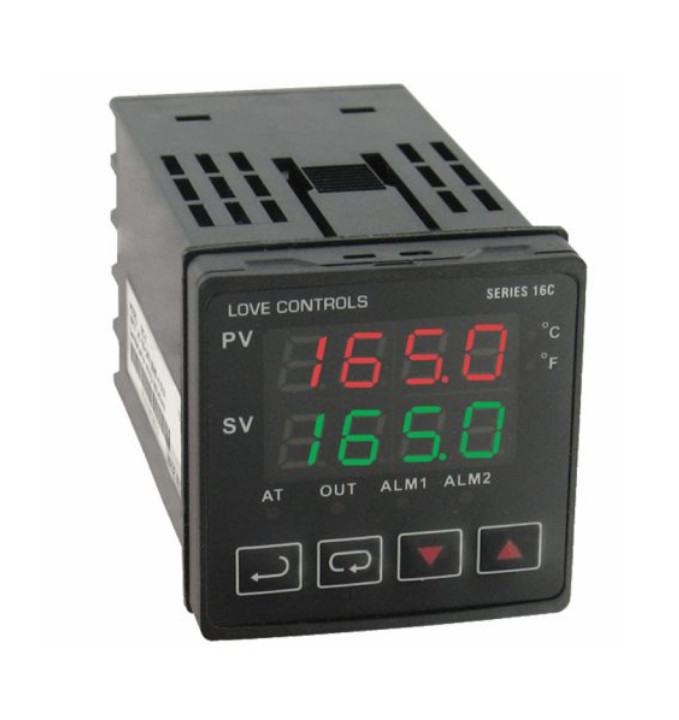

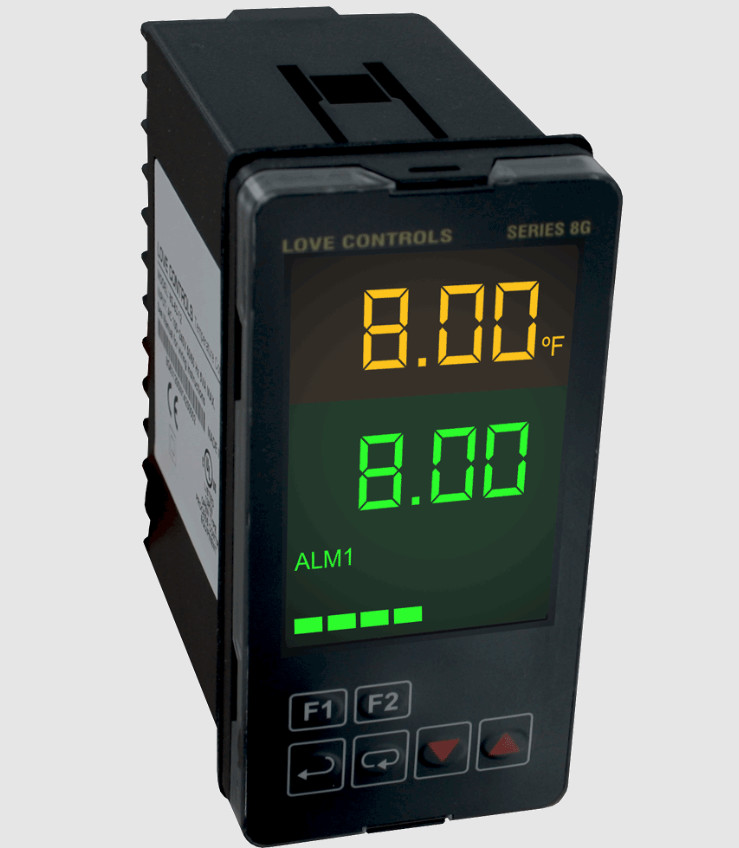

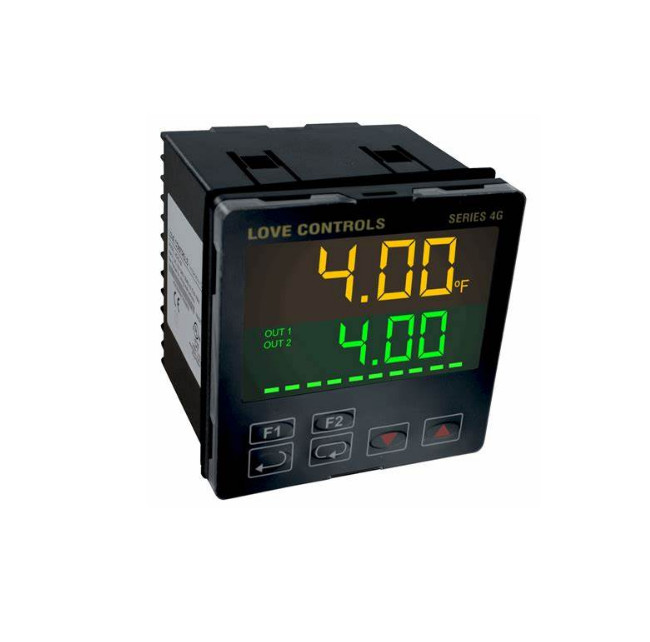

The Series 16G, 8G, AND 4G Temperature/Process Loop Controllers allow for monitoring and control of temperature or process conditions. The controller features two independent control outputs for dual loop control using on/off, auto-tune or self-tune PID, fuzzy logic, or manual control methods. RS-485 interface is included with Modbus® communication protocol, for easy bench-top configuration or integration with a PLC or data control system.
Features
On/off, PID, fuzzy logic, or manual output control
Constant, sloped, program (ramp/soak), or remote set-point control
2 primary control outputs, 2 secondary/alarm relay outputs, and RS-485 standard on all models
Remote set-point, input retransmission, or event input functions available with optional hardware
