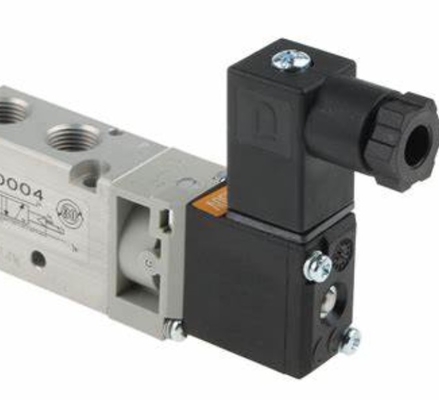

175 L/min Nominal Flow Qn EMERSON VALVE 5/2 M5 SOL-DIFF/AIR 24/DC W/O DIN CONNECTOR VALVE / S 51900108
| Place of Origin | china |
|---|---|
| Brand Name | Emerson |
| Certification | CE |
| Model Number | 51900108 |
| Minimum Order Quantity | 1 |
| Price | USD$70 |
| Packaging Details | carton |
| Delivery Time | 8-10weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500pc |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Activations | Electrically | Nominal Flow Qn | 175 L/min |
|---|---|---|---|
| Switching Principle | 5/2 | Working Pressure Min | 1.5 Bar |
| Highlight | 5/2 EMERSON VALVE,175 l/min EMERSON VALVE,24/DC EMERSON VALVE |
||
Product Description
Specifications
- Activation
- Electrically
- Nominal flow Qn
- 175 l/min
- Switching principle
- 5/2
- Compressed air connection output
- M5
- Working pressure min.
- 1.5 bar
- Working pressure max
- 8 bar
- DC operating voltage
- 24 V
- Manual override
- without detent
- Electrical connection type
- Plug
- Electrical connection size
- EN 175301-803, form C
- Actuating control
- Single Solenoid
- Sealing principle
- Soft Seal
- Pilot
- Internal
- Pilot valve width
- 15 mm
- Valve type
- Spool valve
- Connection type
- Pipe connection
- Return
- Air return with differential piston
- Control pressure min.
- 1.5 bar
- Control pressure max.
- 8 bar
- Min. ambient temperature
- 5 °C
- Max. ambient temperature
- 50 °C
- Medium
- Compressed air
- Max. particle size
- 5 µm
- Oil content of compressed air min.
- 0 mg/m³
- Oil content of compressed air max.
- 5 mg/m³
