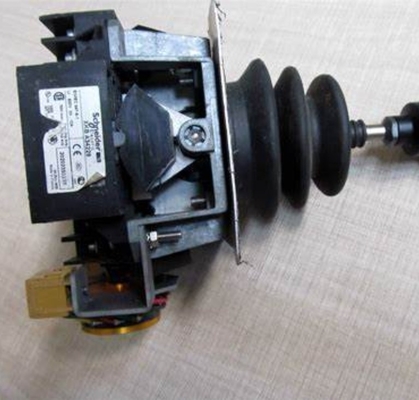

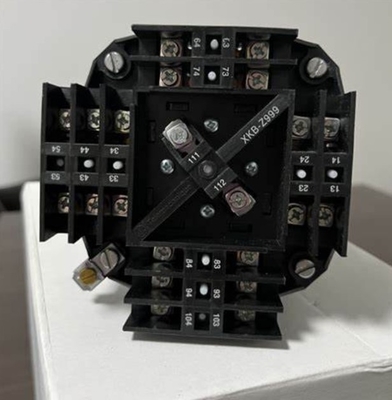

Metal Fixing Collar XKB Joystick Controller The Optimal Control Device For Light Hosting

  • Metal Fixing Collar XKB Joystick Controller The Optimal Control Device For Light Hosting
  • Metal Fixing Collar XKB Joystick Controller The Optimal Control Device For Light Hosting
  • Metal Fixing Collar XKB Joystick Controller The Optimal Control Device For Light Hosting
  • Metal Fixing Collar XKB Joystick Controller The Optimal Control Device For Light Hosting
Place of Origin china
Brand Name schneider
Certification CE
Model Number XKBA34229
Minimum Order Quantity 1
Price USD$1290
Packaging Details carton
Delivery Time 3-4weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Range Of Product Harmony XK Device Short Name XKB
Bezel Material Metal Fixing Collar Material Metal
Sale Per Indivisible Quantity 1
Highlight

Metal Fixing Collar Joystick Controller

,

XKB Joystick Controller

,

Light Hosting Joystick Controller
Leave a Message
Product Description



Main
Range of Product Harmony XK
Product or Component Type Complete joystick controller
Product Specific Application Light hoisting applications
Complementary
Device short name XKB
Bezel material Metal
Fixing collar material Metal
Sale per indivisible quantity 1
protective treatment TC
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -4…158 °F (-20…70 °C)
Overvoltage category Class I IEC 61140
IP degree of protection IP54 IEC 60529
Standards CSA C22.2 No 14
EN/IEC 60947-5-1
UL 508
Product Certifications RRS
UL
CCC
CSA
Contact code designation A300
Q300
Operator position information All positions
Operator profile Standard handle
Notch per direction 1…3 12°-20°-28° for each direction
Mechanical durability 1000000 cycles
Vibration resistance 6 gn 1…70 Hz)IEC 60068-2-6
Shock resistance 20 gn 11 ms) IEC 60068-2-6
Connections - terminals Captive screw clamp terminals, <= 2 x 1.5 mm² with cable end
Captive screw clamp terminals, <= 1 x 2.5 mm² without cable end
Captive screw clamp terminals, >= 1 x 0.5 mm²
Short-circuit protection 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current 10 A EN/IEC 60947-5-1
10 A CSA C22.2 No 14
10 A UL 508
[Ui] rated insulation voltage 500 V 3)IEC 60947-1
Compatibility code XKB
Ordering and shipping details
Category US1000I22474
Discount Schedule 000I
GTIN 3606481796585
Returnability No
Country of origin FR
