High Quality Infrared Imaging Thermal Imager Frequency Converter TI480PRO For Fluke In Stock

Increased sensitivity

Capturing and displaying temperature variances makes all the difference when diagnosing problems. The Fluke Ti480 PRO Infrared Camera has increased thermal sensitivity to capture minute differences and the latest Fluke technology for on-screen clarity to make it easy to visual issues in the field. With the enhanced measurement accuracy and the wider dynamic temperature range—up to 1000 °C with NETD as low as 50 mK—technicians can collect precise information for making informed decisions that boost the company’s return on investment.

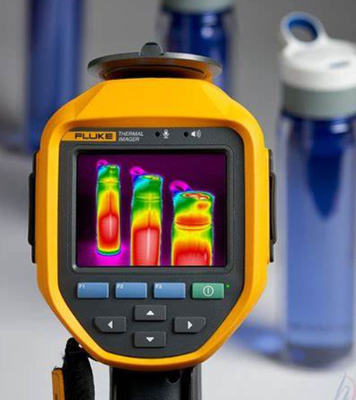

Sharper onscreen images, multiple rectangle markers, and 9 color palettes

The Ti480 PRO features sharp on-screen images with clear visual color differentiation to speed troubleshooting. It displays deviations from standard temperatures using multiple Delta-T markers, allowing users to choose one as a reference point and the others to display a value as a difference. Multiple rectangle markers in-camera identify min/max temperatures for an area of the equipment or an equipment array. The camera distinguishes heat differences more easily with a new palette and a wider array of yellows and greens in the display.

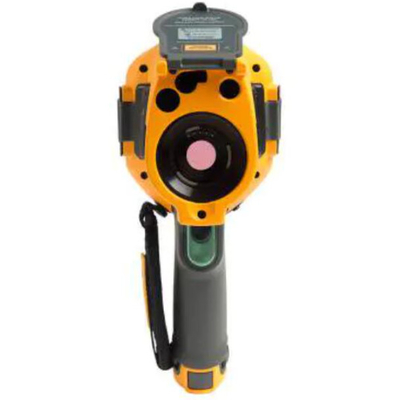

Interchangeable smart lenses

The 640 x 480 resolution Ti480 PRO features improved, more intuitive touchscreen user interface to speed detection and diagnoses of issues. It is also compatible with all Fluke infrared smart lenses, which include macro, telephoto, and wide-angle options to capture virtually any target. And Fluke smart lenses are interchangeable between compatible cameras without calibration, making it easy to change and share lenses.

The PRO Series takes focus to a new level of clarity with MultiSharp™ Focus that rapidly takes multiple images and combines them to produce one in-focus image. The advanced focusing system enables users to capture an automated, focused image of multiple targets at once, delivering the image clarity needed by professional thermographers and maintenance managers to produce top-quality results and avoid costly rework.

Connected reporting

As part of the Fluke Connect® reliability platform, the wireless Ti480 PRO allows users to upload infrared images from anywhere and combine them with measurement data from multiple Fluke Connect test tools to create and share comprehensive reports from the job site via email and collaborate in real time with other colleagues, increasing productivity in the field.

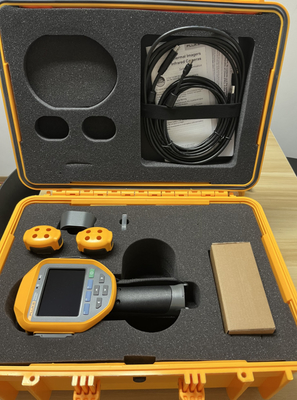

What's in the box:

• Thermal camera with standard infrared lens
• AC power supply and battery pack charger (including universal AC adapters)
• Two, rugged lithium ion smart battery packs
• USB cable
• HDMI video cable
• 4 GB micro SD card
• Rugged, hard carrying case
• Adjustable hand strap

• Models: Fluke Ti480 PRO Infrared Camera

  FLK-Ti480 PRO 60 Hz

  Fluke Ti480 PRO Infrared Camera 60 Hz

  Part#: 4947326
  UPC#: 0 95969 86269 1



  Includes:

  • Thermal imager with standard infrared lens
  • AC power supply and battery pack charger (including universal AC adapters)
  • Two, rugged lithium ion smart battery packs
  • USB cable
  • HDMI video cable
  • 4 GB micro SD card
  • Rugged, hard carrying case
  • Adjustable hand strap
  • Available by free download Fluke Connect® SmartView® desktop software and users manual

  • Specifications: Fluke Ti480 PRO Infrared Camera

    Key features
    IFOV with standard lens (spatial resolution)	0.93 mRad, D:S 1065:1
    Detector resolution	640 x 480
    SuperResolution	Captures and combines 4x the data to create a 1280 x 960 (614,400 pixels) image
    Infrared Resolution	307,200 pixels
    MultiSharp™ Focus	Yes, focused near and far, throughout the field of view
    LaserSharp® Auto Focus	Yes, for consistently in-focus images
    Laser distance meter	Yes, calculates distance to the target for precisely focused images and displays distance on screen
    Advanced manual focus	Yes
    Ruggedized touchscreen display	3.5 inch (landscape) 640 x 480 LCD
    Rugged, ergonomic design for one-handed use	Yes
    Digital zoom	2x and 4x

    Temperature measurement
    Temperature measurement range (not calibrated below -10 °C)	≤-20 °C to 1000 °C (-4 °F to 1832 °F)
    Accuracy	±2 °C or 2% (at 25 °C nominal, whichever is greater)
    Thermal sensitivity (NETD)*	≤0.05 °C at 30 °C target temp (50 mK)
    On-screen emissivity correction	Yes (both value and table)
    On-screen reflected background temperature compensation	Yes
    On-screen transmission correction	Yes
    *Best possible

    Wireless connectivity
    To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
    Fluke Connect® app compatible	Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
    Fluke Connect® Assets optional software	Yes*, assign images to assets and create work orders. Easily compare measurement types in one location
    Fluke Connect® Instant Upload	Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
    Fluke Connect® tool compatible	Yes*, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen
