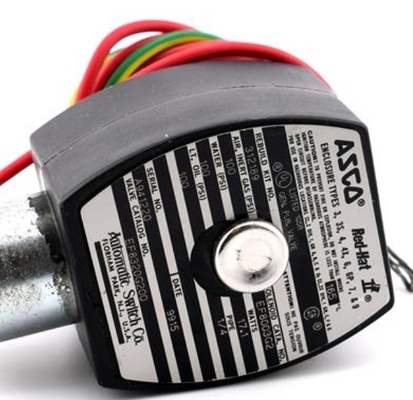

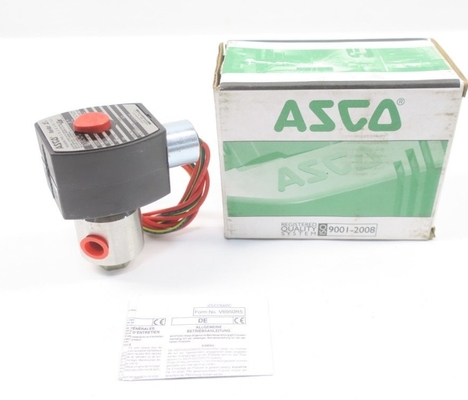

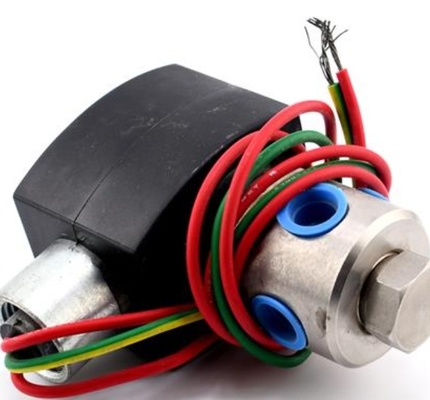

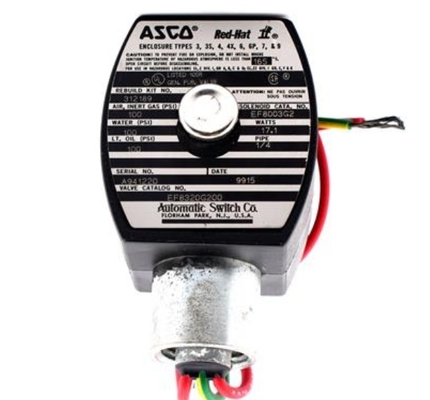

ASCO EF8320G200 RED-HAT 3-Way 120V-AC 1/4IN NPT Solenoid Valve D592540

  • ASCO EF8320G200 RED-HAT 3-Way 120V-AC 1/4IN NPT Solenoid Valve D592540
  • ASCO EF8320G200 RED-HAT 3-Way 120V-AC 1/4IN NPT Solenoid Valve D592540
  • ASCO EF8320G200 RED-HAT 3-Way 120V-AC 1/4IN NPT Solenoid Valve D592540
  • ASCO EF8320G200 RED-HAT 3-Way 120V-AC 1/4IN NPT Solenoid Valve D592540
Place of Origin china
Brand Name ASCO
Certification CE
Model Number EF8320G200
Minimum Order Quantity 1
Price USD$150
Packaging Details carton
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Valve Type Direct Mount Operation Type Direct Acting
Valve Ways 3-Way Valve Positions 2-Position
Highlight

RED-HAT Solenoid Valve

,

1/4IN NPT Solenoid Valve

,

120V-AC Solenoid Valve
Leave a Message
Product Description
For Media
Air; Inert Gases; Light Oil; Water
Application
Analytical and Diagnostic Equipment; Dust Collector Systems; Life Sciences; Metal Stamping; Press Room
Valve Type
Direct Mount
Mounting Orientation
Horizontal or Vertical
Operation Type
Direct Acting
Valve Ways
3-Way
Valve Positions
2-Position
Body Material
Stainless Steel
Seal Material
NBR
Nominal Pipe Size
1/4 in
Inlet Connection Type
BSPP
Outlet Connection Type
BSPP
Voltage
110V AC; 120V AC
Wattage
17.1 W
Frequency
50 Hz; 60 Hz
Electrical Connections
1/2" Conduit w/18" Leads
Coefficient of Volume (Cv)
0.12
Orifice Diameter
3/32 in
Min. Operating Pressure Differential
0 psi
Max. Operating Pressure Differential - Water
100 psi
Max. Operating Pressure Differential - Steam
Not Rated
Max. Operating Pressure Differential - Light Oil
100 psi
Max. Operating Pressure Differential - Air/Inert Gas
100 psi
Max. Fluid Temperature
200 °F
Includes Seal
Yes
Includes Coil
Yes
Coil Enclosure
Explosion Proof; Watertight
Coil Insulation Class
F
Overall Height
3-3/4 in
Overall Length
3 in
Overall Width
2 in
Operating Environment
Indoor; Outdoor
NEMA Rating
3; 3S; 4; 4X; 6; 6P; 7; 9
Standards
ATEX; CSA; IIECEx; UL Listed
Manufacturer Part Number
EF8320G200
Valve Configuration
Configurable
UNSPSC
40141605
Country of Origin
Mexico (subject to change)
Product Description

3-way/2-position general purpose configurable solenoid valves have three connection ports: an inlet port, an outlet port, and an exhaust port to control the flow of media in two directions. They can be configured to operate as either normally open or normally closed, based upon application.
