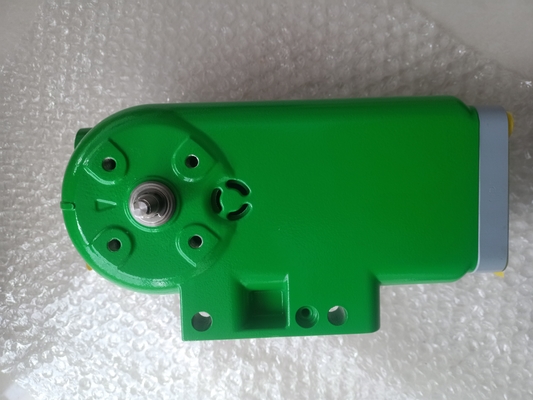

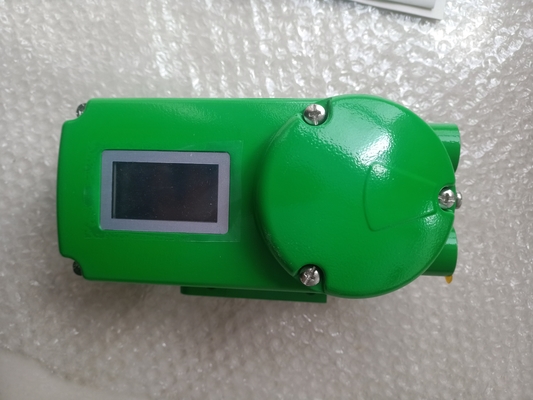

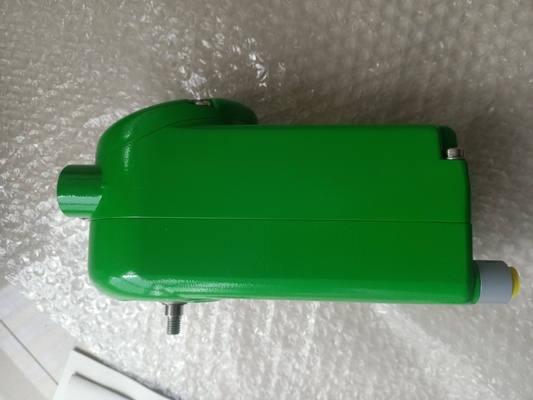

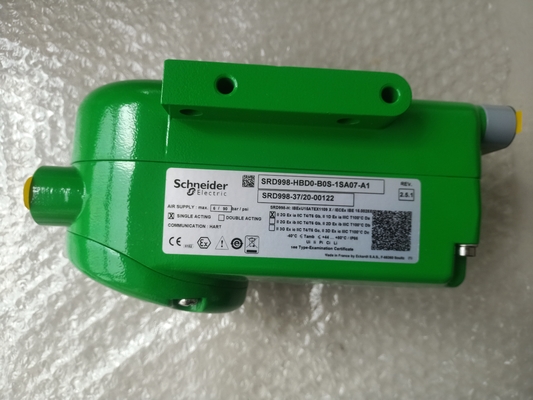

Foxboro Smart Valve Positioner With HART Advanced Diagnostic SRD998-HBD0-B0S-1SA07-A1
| Place of Origin | France |
|---|---|
| Brand Name | Foxboro |
| Certification | - |
| Model Number | SRD998-HBD0-B0S-1SA07-A1 |
| Minimum Order Quantity | 1 |
| Price | USD520/PC |
| Packaging Details | Original |
| Delivery Time | 1WEEK |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year | Customized Support | OEM, ODM |
|---|---|---|---|
| Brand Name | Foxboro | Communication Port Protocol | HART, 4...20 MA |
| Pneumatic Connection Type | 0.25 Inch 18 NPT G 1/4 | Thread Type | M20 X 1.5 1/2" NPT |
| Input Pressure | 1.4...10 Bar | Maximum Pressure | 10 Bar 150 Psi |
| Stroke Range | 2...260 Mm | Maximum Hysteresis | 0.3 % |
| Operating Angle | 0...95 ° | Ambient Air Temperature For Operation | -40...176 °F (-40...80 °C) |
| Highlight | HART Advanced diagnostic valve positioner,SRD998-HBD0-B0S-1SA07-A1 valve positioner,Foxboro Smart valve positioner |
||
Product Description
Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.
Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations.
| ange of Product | Valve Positioners |
|---|---|
| Product or Component Type | Valve positioner |
| Communication port protocol | HART, 4...20 mA |
| Market Segment | Process industry |
| Housing material | Aluminium alloy Powder coated |
|---|---|
| Pneumatic connection type | 0.25 inch 18 NPT G 1/4 |
| Thread type | M20 x 1.5 1/2" NPT |
| Network and machine diagnosis type | Auto diagnostic Step response analysis Position and response histogramms |
| Input pressure | 1.4...10 bar |
| Maximum pressure | 10 bar 150 psi |
| Stroke range | 2...260 mm |
| Maximum hysteresis | 0.3 % |
| linearity | < 0.6 % of the travel span |
