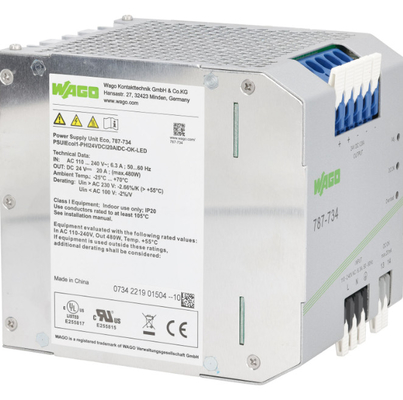

WAGO 787-734 787-885 Switched-mode Power Supply 24 VDC Output Voltage In Stock

Signaling and communication Signaling 1 x LED DC OK (green) 1 x Overload LED (red) 1 x DC OK signal output (optocoupler as make contact; max. 31.2 V; 20 mA) Operation status indicator Green LED (24 VDC OK) Red LED (overload) Efficiency/power losses Power loss Pl ≤ 65 W (230 VAC; nominal load) Power loss (max.) Pl (max.) 107 W (110 VAC / 24 VDC; 23 A) Efficiency (typ.) 90 % Circuit protection Internal fuse T 10 A / 250 VAC Required backup fusing An external DC fuse is required for the DC input voltage. Recommended backup fusing Circuit breaker: 10 A, 16 A; Tripping characteristic: B or C Safety and protection Isolation voltage (Pri.-Sec.) DC 4.242 kV Isolation voltage (Pri.-GND) DC 2.2 kV Isolation voltage (Sec.-GND) DC 0.7 kV Isolation voltage (Sec.-Signal) DC 0.7 kV Protection class I Protection type IP20 (per EN 60529) Resistance to reverse feed ≤ DC 29 V Overvoltage category II Pollution degree 2 Transient suppression (primary) Varistor Short-circuit-protected Yes Open-circuit-proof Yes Parallel operation Yes Series operation Yes MTBF > 250,000 h (per IEC 61709) Connection data Data sheet | Item number: 787-734 www.wago.com/787-734 Subject to changes. Please also observe the further product documentation! WAGO Private Limited C-27, Sector-58, Phase-III Noida-201 301 | Gautam Budh Nagar (U.P) Tel.: +91-120-4369831 | Fax: +91-120-4388799 Email: info.india@wago.com Do you have any questions about our products? We are always happy to take your call at +91-120-4388700. 23.03.2021 Page 4/8 Connection data Connection type (1) Input/Signaling Connection technology Push-in CAGE CLAMP® WAGO Connector WAGO 2706 Series Solid conductor 0.5 … 6 mm² / 20 … 10 AWG Fine-stranded conductor 0.5 … 6 mm² / 20 … 10 AWG Strip length 11 … 12 mm / 0.43 … 0.47 inch Connection type 2 Output Connection technology 2 Push-in CAGE CLAMP® WAGO Connector 2 WAGO 2716 Series Solid conductor 2 1.5 … 16 mm² / 16 … 6 AWG Fine-stranded conductor 2 1.5 … 16 mm² / 16 … 6 AWG Strip length 2 12 … 13 mm / 0.47 … 0.51 inch Physical data Width 115 mm / 4.528 inch Height 136 mm / 5.354 inch Depth from upper edge of DIN-rail 144 mm / 5.669 inch Mechanical data Mounting type DIN-35 rail Material data Weight 2120 g Environmental requirements Surrounding air temperature (operation) -25 … 70 °C Surrounding air temperature (storage) -25 … 85 °C Relative humidity 95% (no condensation permissible) Derating See instruction manual Pollution degree 2 Climatic category 3K3 (per EN 60721) Standards and specifications Conformity marking CE Standards/Specifications EN 62368-1; EN 61204-3; EN 61000-6-2; EN 61000-6-3; UL 60950- Data sheet | Item number: 787-734 www.wago.com/787-734 Subject to changes. Please also observe the further product documentation! WAGO Private Limited C-27, Sector-58, Phase-III Noida-201 301 | Gautam Budh Nagar (U.P) Tel.: +91-120-4369831 | Fax: +91-120-4388799 Email: info.india@wago.com Do you have any questions about our products? We are always happy to take your call at +91-120-4388700. 23.03.2021 Page 5/8 Standards/Specifications EN 62368-1; EN 61204-3; EN 61000-6-2; EN 61000-6-3; UL 60950- 1; UL 508 Commercial data Product Group 6 (Interface Electronics) Packaging type BOX Country of origin CN GTIN 4050821495291 Customs tariff number 85044082900 Approvals / Certificates UL-Approvals Logo Approval Additional Approval Text Certificate name UL Underwriters Laboratories Inc. UL 508 E255817 UL Underwriters Laboratories Inc. UL 60950-1 E255815 Compatible products tools Item no.: 210-769 SCREWDRIVER; green www.wago.co
