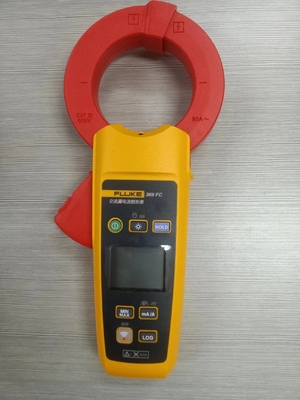

Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369

  • Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
  • Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
  • Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
  • Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
  • Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
  • Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369
Place of Origin -
Brand Name Fluke
Certification -
Model Number 368FC 369FC
Minimum Order Quantity 1
Price USD350/PC
Packaging Details Original
Delivery Time 3DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Fluke Type 368FC 369FC
AC Ampere Range 3, 30, 300 MA Frequency 40 Hz To 1 KHz
Crest Factor 3 Display (LCD) Digital Readout: 3300 Count
Display Refresh Rate 4 Times/sec
Highlight

40 mm Digital Clamp Meter

,

Fluke 369 Digital Clamp Meter

,

True RMS Digital Clamp Meter
Leave a Message
Product Description
Features
* True RMS measurements for accuracy when measuring complex, non-sinusoidal waveforms
* 1.6" (40 mm) jaw opening
* Highest resolution of 1 µA, measure up to 60 A
* Selectable filter function removes unwanted noise
* Max/Min/Average readings and hold function
* Forward-facing LED work light for use in dark wiring cabinets
* Backlit display; auto backlight off and auto power off for extended battery life
* Internal Memory Logging: up to 65,000 measurement points
* CAT III 600 V safety rating
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369 0

Fluke 368 FC - Wireless Leakage Current Clamp Meter (40mm Jaw)
* Highest resolution of 1μA, measure up to 60A
* Selectable filter function eliminates unwanted noise
* Max/Min/Average readings and hold function
* Forward-facing LED worklight for use in dark wiring cabinets
The Fluke 360 Series of true-rms leakage current clamp meters help users detect, document, record and compare leakage current readings over time as a means of preventing unplanned downtime, and identifying intermittent GFCI and RCD trips, without taking equipment off line.
The Fluke 368 FC and 369 FC have large diameter jaws (40 mm for the 368 FC, 61 mm for the 369 FC) for work with larger conduc- tors. The clamp’s jaw is fully shielded to accurately capture very small leakage signals, and to minimize external electromagnetic interference.
The 368 FC and 369 FC also offer wireless data connectivity via Fluke Connect. As part of Fluke Connect—the industry’s largest system of software and more than 40 wireless test tools—the 368 FC and 369 FC allow you to track changes in leakage current over time, helping to identify potential problems before they turn into major failures.
Specification
Electrical Specifications
Measurement Function
Alternating current
AC Ampere Range
3, 30, 300 mA
3, 30, 60 A
Range Selection
mA/A: Manual selection
3/30/300 mA: Automatic selection
3/30/60 A: Automatic selection
Range/Resolution
3/0.001 mA
30/0.01 mA
300/0.1 mA
3/0.001 A
30/0.01 A
60/0.1 A
Accuracy - Filter Activated (40 to 70 Hz), Filter Off (40 to 1 kHz)
3 mA to 30 A: 1% + 5 digits
60 A: 2% + 5 digits
Frequency
40 Hz to 1 kHz
Crest Factor
3
General Specifications
Display (LCD)
Digital readout: 3300 count
Display Refresh Rate
4 times/sec
Maximum Conductor Diameter
1.6" (40 mm)
Battery
2 x AA, IEC LR6, NEDA 15A, alkaline
Battery Life
Expected battery life, without using backlight and spotlight, is more than 150 hours
Automatic Shut-Down
Meter automatically shuts down after 15 minutes of inactivity
Operating Temperature
14 to 122°F (-10 to 50°C)
Storage Temperature
-40 to 140°F (-40 to 60°C)
Operating Humidity
Non-condensing at <50°F (<10°C)
90% relative humidity at 50 to 86°F (10 to 30°C)
75% relative humidity at 86 to 104°F (30 to 40°C)
45% relative humidity at 104 to 122°F (40 to 50°C)
Operating Altitude
6561.7' (2000 m)
Storage Altitude
39,370.1' (12,000 m)
Dimensions
9.2 x 4 x 1.8" (234 x 101 x 46 mm)
Weight
1.1 lbs (500 g)
Safety Specifications
General Safety
IEC 61010-1: Pollution Degree 2
Measurement Safety
IEC 61010-2-032: CAT III 600 V/CAT IV 300 V
Current Sensor Action Category
IEC 61557-13: Class 2, ≤30 A/m

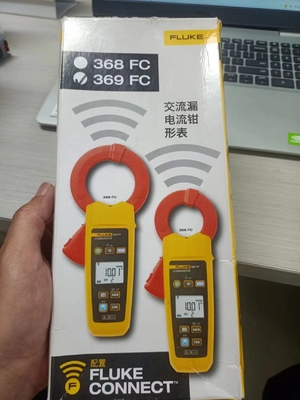

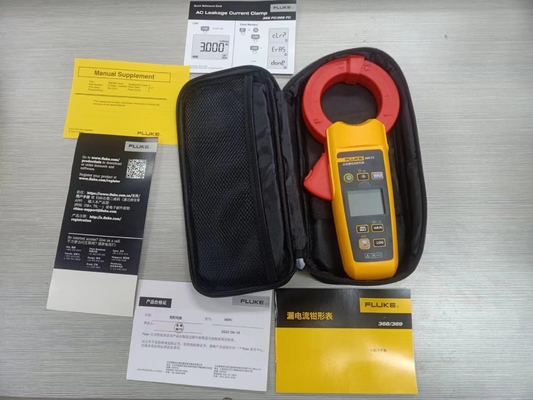

Packing & Delivery
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369 1
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369 2
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369 3
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369 4
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369 5
Fluke 368FC 369FC True RMS Leakage Current Digital Clamp Meter 40 mm Fluke 369 6
