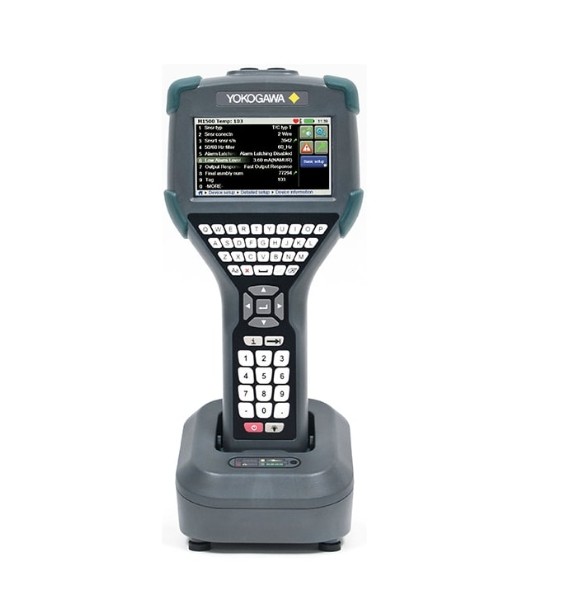

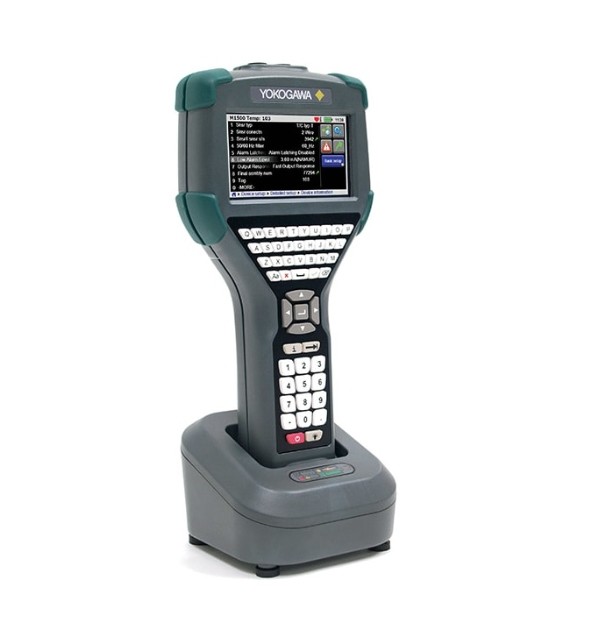

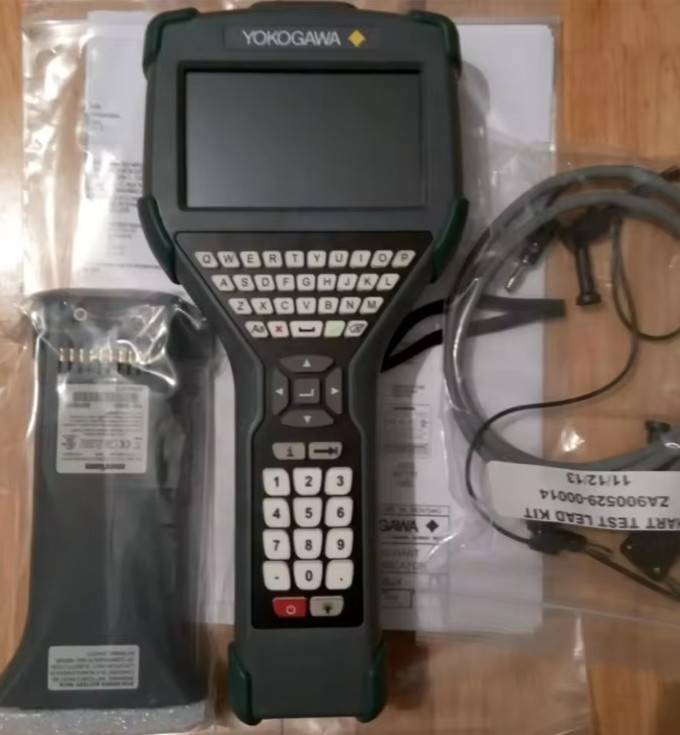

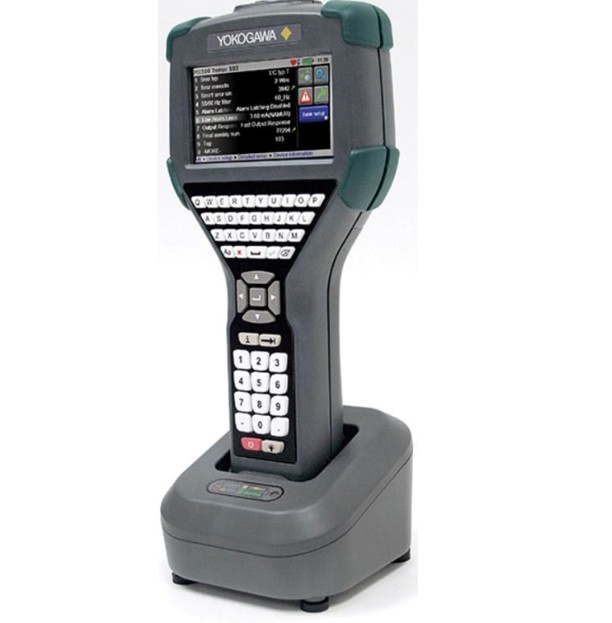

Yokogawa YHC5150X-01 FieldMate Handheld Communicator with 1 GHz CPU
| Place of Origin | china |
|---|---|
| Brand Name | Yokogawa |
| Certification | CE |
| Model Number | YHC5150X-01 |
| Minimum Order Quantity | 1 |
| Price | USD$7300 |
| Packaging Details | carton |
| Delivery Time | 4-6weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500pc |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Microprocessor | 1 GHz | Memory Internal Flash | 512 MB |
|---|---|---|---|
| RAM | 256 MB | Weight | Approx. 2 Lbs (With Battery) |
| Highlight | Yokogawa FieldMate Handheld Communicator,Yokogawa Handheld Communicator,YHC5150X-01 FieldMate Handheld Communicator |
||
Product Description
| Processor & Memory | |
|---|---|
| Microprocessor | 1 GHz |
| Memory Internal Flash | 512 MB |
| RAM | 256 MB |
| Physical | |
| Weight | Approx. 2 lbs (With battery) |
| Size | 11.9" x 5.6" x 1.9" |
| Keypad | 52 keys including QWERTY |
| Certification: | |
| Class I, Division 1:Groups A,B,C,D; T4 (cULus) | |
 II 1G Ex ia IIC T4 Ga (ATEX) |
|
| Ex ia IIC T4 Ga (IECEx) | |
The YHC5150X has the ability to be upgraded from a remote location. This feature eliminates any down time and having to return the unit to the factory.
FC Manager
The software allows the user to update the software/firmware, update all newly released DD Files, and update single DD files. Updating your software and DD files quarterly will enhance your product features and also allow you to communicate with newly produced products produced by Yokogawa or other manufactures.
FieldMate Handheld Communicator Data Converter for FieldMate
The FieldMate Handheld Communicator Data Converter for FieldMate ("Data Converter") is a data-interfacing software which allows device configuration files saved by the FieldMate Handheld Communicator to be used in FieldMate.
- Converts device configuration files created by the Handheld Communicator into DTM data that can be used in type-B HART Built-in DTM.
- Saves converted DTM data in the device maintenance information (DTM data) of FieldMate Advance.
- Saves converted DTM data to a DTM data file in a PC.
FieldMate Handheld Communicator Data Converter for FieldMate
Ver.1.01.00
Update : 2014/01/20
Manufacture-Yokogawa Electric Corporation
-Files-
setup.exe
Readme.txt
-Architecture Requirements-
FieldMate + FieldMate Handheld Communicator
-System Requirements-
Supported Operating System
Windows 7 Professional 32bit/64bit
Windows 7 Home Premium 32bit/64bit
Windows Vista Business 32bit SP2 or later
FieldMate R2.05.00 or later.
The environment FCManager Ver 1.0 works.
(.NET Framework 4.0 and USB Drivers for FieldMate Handheld Communicator are installed.)
--- Install Instruction ----
Launch setup.exe and install application.
----- Note -----
a. The FieldMate program must be closed to use the Data Converter.
b. The handheld must be powered on for the data converter to communicate with the software.
c. You must insure that the RDCS update has been completed for the driver to be loaded that allows the Data Converter to communicate with the Handheld communicator.
Please click here to download the zipped file for installing this program:
After downloading the program, unzip the file and run the set.exe file. Follow the onscreen instructions to complete the installation.
Please refer to the Instruction Manual or help file for using the data converter.
