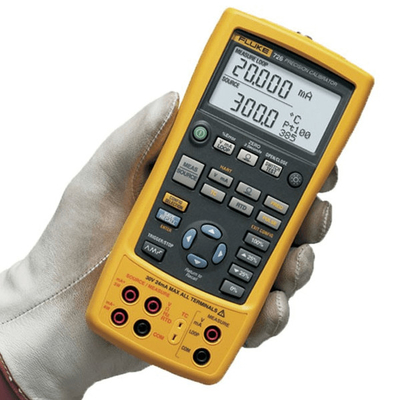

Fluke 725 High Precision Multifunctional Process Calibrator Intrinsically


product description

With Fluke 725 multifunctional process instrument calibrator, you can test and calibrate almost all process parameters. It can measure and output milliamperes, voltages, temperatures (RTD and thermocouples), frequencies, ohms, and pressure signals (optional external pressure module is required). Do you need to calibrate the transmitter? 725's split display allows simultaneous viewing of input and output. For valve and VP testing, mA can be output while measuring pressure. The 725 has automatic step and automatic ramp capabilities for remote testing, and 25% step capability for quick linearity detection. When you get Fluke 725, you can immediately put into work. The meter is very simple to control, no menu, easy to operate. Its storage makes setup faster and very robust.

features
Fluke 725 Multifunctional Process instrument calibrator is a powerful and easy to use field calibrator that can be used to test and calibrate almost any process parameter with its measurement or output function.

• Compact, streamlined design, easy to carry and hold.
• Rugged, reliable and suitable for field use.
• Measurement and output display simultaneously, you can read the input and output values of the meter at the same time.
• Measurement of volt, milliampere, platinum resistance (RTD), thermocouple, frequency and ohm functions for testing sensors/transmitters.
• Output/analog voltage, current, thermocouple, platinum resistance (RTD), frequency, resistance and pressure to calibrate the transmitter.
• Use any one of Fluke 700PXX 29 pressure modules to measure/output pressure.
• MA output while measuring pressure for I/P test and valve test.
• The frequency and count per minute (CPM) function supports flow meter testing.
• Automatic stepping and ramp output for fast linear detection.
• MA is measured while providing loop power to the transmitter.
• Fast pulse RTD transmitter and PLC can be tested with pulses up to 10 ms fast.
• Backlit display, suitable for use under any lighting conditions.
• Four AA batteries, full of power.
• Battery compartment door for easy battery replacement.

specification


From the moment you pick it up, the Fluke 725 is ready to perform as a powerful, yet easy-to-use field calibrator. Its simple controls, without menus, make operation easy and the backlit display provides better visibility in poor light. It features a small, streamline shape and a rugged, reliable design that make it ideal for standing up to harsh field conditions.
Versatile troubleshooting tool
Power transmitters during test using the loop supply with simultaneous mA measurement so you can test a transmitter out of circuit and better isolate problems. The 725 can also test a variety of fast pulsed RTD transmitters and PLCs (Programmable logic controllers), with pulses as short as 10 ms.
Source mA with simultaneous pressure measurement to conduct valve and I/P (Input current/Output pressure) tests in a single device. You can also test flow meters with frequency and CPM (counts per minute) functions and perform fast linearity tests with auto-step and auto-ramp features so you can quickly verify the mA signal at different output levels.
