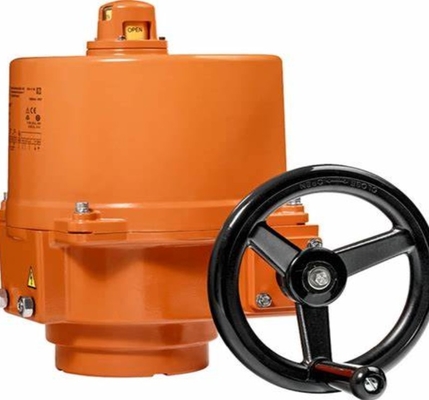

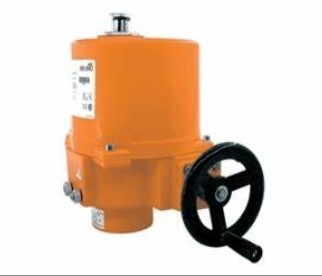

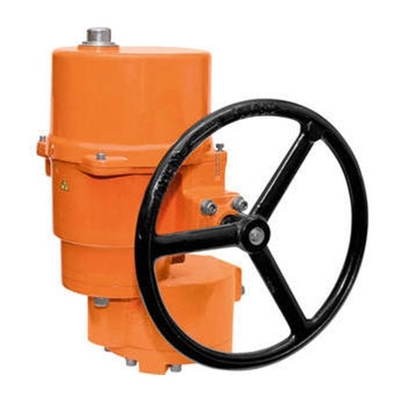

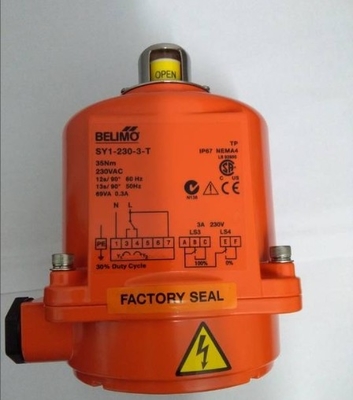

BELIMO SY6-230-3-T Rotary Actuator, 650 Nm, AC 230 V, Open/close, 3-point, 38 S, 2 X SPDT, IP67, F10/F12, Terminals

  • BELIMO SY6-230-3-T Rotary Actuator, 650 Nm, AC 230 V, Open/close, 3-point, 38 S, 2 X SPDT, IP67, F10/F12, Terminals
  • BELIMO SY6-230-3-T Rotary Actuator, 650 Nm, AC 230 V, Open/close, 3-point, 38 S, 2 X SPDT, IP67, F10/F12, Terminals
  • BELIMO SY6-230-3-T Rotary Actuator, 650 Nm, AC 230 V, Open/close, 3-point, 38 S, 2 X SPDT, IP67, F10/F12, Terminals
  • BELIMO SY6-230-3-T Rotary Actuator, 650 Nm, AC 230 V, Open/close, 3-point, 38 S, 2 X SPDT, IP67, F10/F12, Terminals
Place of Origin china
Brand Name BELIMO
Certification CE
Model Number SY6-230-3-T
Minimum Order Quantity 1
Price USD$1631
Packaging Details carton
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage AC/DC AC 230 V Auxiliary Switches 2x SPDT
Torque 650 Nm Angle Of Rotation 90
Highlight

BELIMO SY6-230-3-T Rotary actuator

,

IP67 Rotary actuator

,

AC 230 V Rotary actuator
Leave a Message
Product Description

Specifications

Voltage AC/DC
AC 230 V
Power consumption (running)
193 W
Power Consumption For Wire Sizing
230 VA
Auxiliary switches
2x SPDT
Connection Supply Control
Terminals 2.5 mm² (Wire 2x 1.5 mm² or 1x 2.5 mm²)
Torque
650 Nm
Control type
  • Open/close
  • 3-point
Manual override
Temporary with handwheel (non-rotating)
Angle of rotation
90
Running time (motor)
38 s / 90°
Protection category
IP67
Ambient Temperature
-30...65°C [-22...149°F]
