Emerson Pneumatic drive KEYSTONE F89E-004 DA Pneumatic Actuator Double Acting In Stock
| Place of Origin | usa |
|---|---|
| Brand Name | Emerson |
| Certification | CCC,CE |
| Model Number | F89E-004 DA |
| Minimum Order Quantity | 1 |
| Price | USD$530/PC |
| Packaging Details | Original |
| Delivery Time | 1-2 Weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Pneumatic Actuator | Material | Extruded Aluminium (ESPC Coated) |
|---|---|---|---|
| Temperature Range | -20°C To +80°C | Air Supply Pressure | 8.3 Bar (120 Psi) Max. Dynamic 10 Bar (145 Psi) Max. Static |
| Weight | 2kg |
Product Description

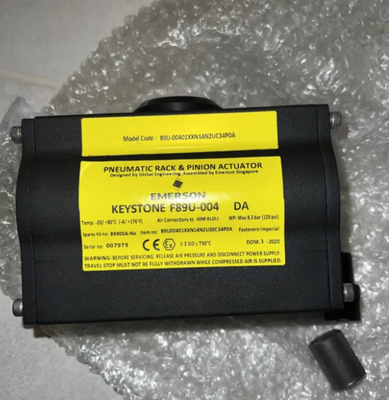

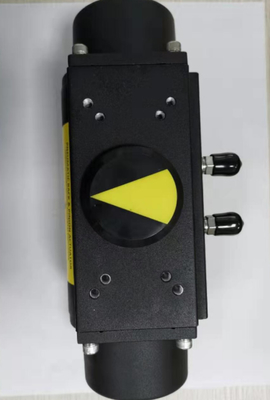

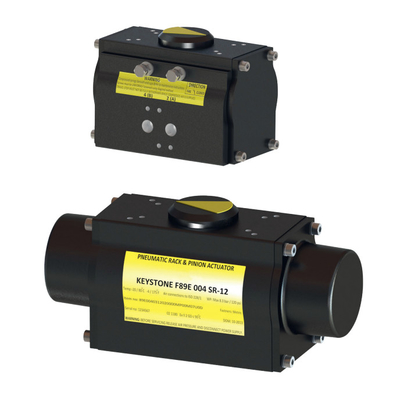

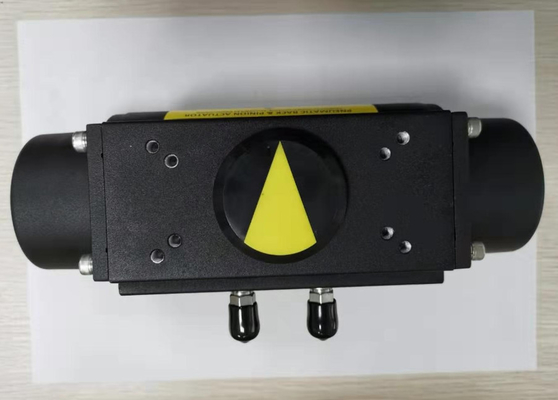

Emerson Pneumatic drive KEYSTONE F89E-004 DA Pneumatic Actuator Double Acting
Features
• Direct mounting to all Keystone butterfly valves and ball valves.
• Valve connection compatible with Keystone (imperial and metric) and ISO 5211.
• Double Rack and Pinion design nullifies side loads on the pinion shaft, minimizing bearing wear and extending life.
• Optimized product flow with standard mounted travel stops for valve position adjustment in open and close position (+/- 5° at each end).
• Optional "Linear Travel Stops" to further reduce the angles of rotation are available on request.
• Anodized aluminium body with electrostatic powder coating (ESPC) finish provides durable protection against corrosive environments.
• Double acting and spring return versions available for cost effective and safe operation.
• Up to 12 individual springs offer flexible torque range for both ball as butterfly valves.
• Pre-compressed spring design and anti-blowout drive pinion means safe maintenance and operation.
