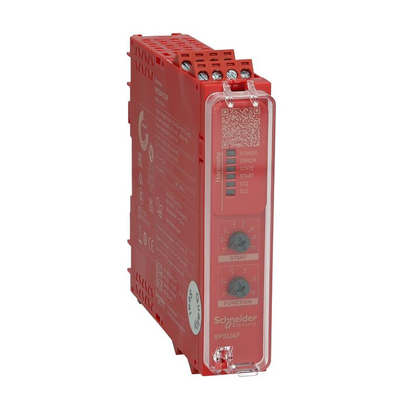

Schneider Electric Harmony XPS Basic And Universal Safety Module XPSUAK XPSUAF

  • Schneider Electric Harmony XPS Basic And Universal Safety Module XPSUAK XPSUAF
  • Schneider Electric Harmony XPS Basic And Universal Safety Module XPSUAK XPSUAF
  • Schneider Electric Harmony XPS Basic And Universal Safety Module XPSUAK XPSUAF
  • Schneider Electric Harmony XPS Basic And Universal Safety Module XPSUAK XPSUAF
Place of Origin Germany
Brand Name Schneider Electric
Certification CE
Model Number Harmony XPS
Minimum Order Quantity 1
Price USD$200/PC
Packaging Details Carton
Delivery Time 5-8 work days
Payment Terms D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Safety Module Input Protection Type Internal, Electronic
Supply Voltage 24 V Current 8 A
Ambient Temperature -25...85 °C Humidity 5...95 % Non-condensing
Safety Outputs 3 NO Net Weight 0.200 Kg
High Light

Electric Harmony XPS Module

,

XPS Basic Universal Safety Module

,

Programmable Logic Controller Universal Safety Module
Leave a Message
Product Description

Schneiders Electric Harmony XPS Basic and Universal Safety Modules XPSUAK XPSUAF XPSUAF13AP PLC Safety Module









Harmony XPS Basic offers the most optimized solution for applications with hardwired safety modules.

Whereas Harmony XPS Universal combines the simplicity of application of hardwired safety modules with a diversity of messages where previously more complex and expensive fieldbus technology was required.

Moreover, each product has a uniquely numbered sealing strip used to seal the transparent front cover flap.



This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch or Safety light curtain. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 2 safety inputs, 3 ON/OFF configurable pulsed outputs, 3 NO safety outputs, and 1 solid state diagnostic output with complete status information. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILC L 3 conforming to IEC 62061, and SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.



  • More than 40 different diagnostic messages, without additional fieldbus interface
  • Reduced down time of the machine due to messages
  • Status information about upcoming test intervals and amount of remaining cycles before reaching end of life time
  • ECODESIGN: Optimized Energy Efficiency: Reduction of 24 per cent of CO2 on the whole product life cycle
  • Reduce risk to an acceptable level
  • Environmental performance of the product





Specification

item
value
Place of Origin
Germany
Brand Name
Schneiders Electric
Model Number
XPSUAF
Product name
Safety Module
Range of product
Harmony Safety Automation
Supply voltage
24 V
Input protection type
Internal, electronic
Safety outputs
3 NO
Current
8 A
Net weight
0.200 kg
Ambient temperature
-25...85 °C
Humidity
5...95 % non-condensing
Package
PCE









Schneider Electric Harmony XPS Basic And Universal Safety Module XPSUAK XPSUAF 0

Schneider Electric Harmony XPS Basic And Universal Safety Module XPSUAK XPSUAF 1
