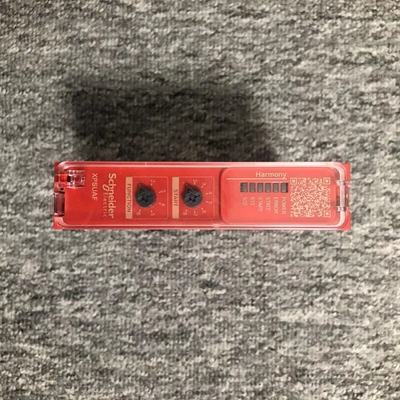

Harmony XPSUAF13AP Programmable Logic Controller Safety Automation Module 24v Ac / Dc

Product series

Harmony Safety Automation

Product type

Safety module

Security module name

XPSUAF

Security module application

Monitoring antivalent contacts

For emergency stop, guard and light curtain monitoring

Module function

Emergency stop button with 2 NC contacts

The protection monitor uses 1 or 2 limit switches

Monitoring 2 PNP sensors

Magnetic switch monitoring

Light screen monitoring

RFID switch

Monitoring electrosensitive protection Equipment (ESPE)

Proximity sensor monitoring

Safety level

Can achieve PL e/ 4 class in compliance with ISO 13849-1

Can achieve SILCL 3 in accordance with IEC 62061

SIL 3 can be achieved in compliance with IEC 61508

Safe and reliable data

MTTFd > 30 years comply with ISO 13849-1

Dcavg >= 99% in accordance with ISO 13849-1

PFHd = 1.13E-09 in accordance with ISO 13849-1

HFT = 1 complies with IEC 62061

PFHd = 1.13E-09 in accordance with IEC 62061

SFF > 99% comply with IEC 62061

HFT = 1 complies with IEC 61508-1

PFHd = 1.13E-09 in accordance with IEC 61508-1

SFF > 99% in accordance with IEC 61508-1

Type = B conforms to IEC 61508-1

Type of electrical circuit

NC pair

PNP pair

Antivalent pair

OSSD pair

Wiring capacity

Detachable screw terminal, 0.2... 2.5mm ² Hard or soft

Detachable screw terminal, 0.25... 2.5mm ² flexible single conductor with wire hoop

Detachable screw terminal, 0.2... 1.5mm ² Hard or soft double wire

Detachable screw Terminal, 2 x 0.25... 1 mm² Flexible wire with wire hoop without cable end, with bezel

Detachable screw terminal, 2 x 0.5... 1.5mm ² Flexible wire with wire hoop with cable end, with frame

Rated supply voltage [Us]

24 V AC - 15... 10%

24 V DC-20... 20%

Supplementary information

Synchronize time between two inputs

0.5s

2 s

4 s

Startup type

Automatic/manual/monitored

Power consumption [W]

2.0 W 24 V DC

Power consumption VA

5.0 VA 24 V AC 50/60 Hz

Input protection type

Internal, electron

safety outputs

3 NO

safety inputs

2

Maximum line resistance

500 Ω

Input compatibility

Normally closed circuit complies with ISO 14119

The XC limit switch complies with ISO 14119

Mechanical contacts comply with ISO 14119

Normally closed circuit complies with ISO 13850

The Antivalent pair conforms to ISO 14119

OSSD pair complies with IEC 61496-1-2

3-wire proximity sensor PNP

Rated working current

5 A AC-1

3 A AC-15

5 A DC-1

3 A DC-13

control outputs

3 pulsed output

Input/output type

Semiconductor pulsed diagnostic output Z1, 20 mA

Conventional heating current

8 A

A fuse for use with a relay

10 A gG NO relay output circuit in accordance with IEC 60947-1

Minimum output current

10 mA for relay output

Minimum output voltage

15 V for relay output

Maximum response time on input open

20 ms

Rated insulation voltage

250 V (pollution level 2) in accordance with EN/IEC 60947-1

Rated impulse withstand voltage [Uimp]

4 kV overvoltage Class II conforms to EN/IEC 60947-1

Local signal indication

LED indicator (green) Power on:

LED indicator (red) error:

LED indicator (yellow) Starting:

LED indicator light (yellow)safety status:

LED indicator light (yellow)safety input S12:

LED indicator light (yellow)safety input S22:

Installation mode

35 mm DIN guide rail

depth

120 mm

height

100 mm

width

22.5mm

Net product weight

0.200kg
