Schneider Electric RXG22P7 Harmony Electromechanical Relays 230 VAC

Place of Origin China
Brand Name Schneider
Certification CE
Model Number RXG22P7
Minimum Order Quantity 5
Price USD$4.5/PC
Packaging Details Carton
Delivery Time 5-8 work days
Payment Terms D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Plug-in Relay Ambient Air Temperature -40...185 °F (-40...85 °C)
IP Degree Of Protection IP40 Series Name Interface Relay
Contacts Type And Composition 2 C/O Net Weight 0.04 Lb(US) (0.02 Kg)
Contacts Material Silver Alloy (AgSnO2In2O3) Load Current 5 A 250 V AC
Coil Resistance 23500 Ohm +/- 15 % Control Circuit Voltage 230 V AC 50/60 Hz
High Light

RXG22P7 Harmony Electromechanical Relays

,

230 VAC Harmony Electromechanical Relays

,

RXG22P7 Plug in Relay

Leave a Message
Product Description

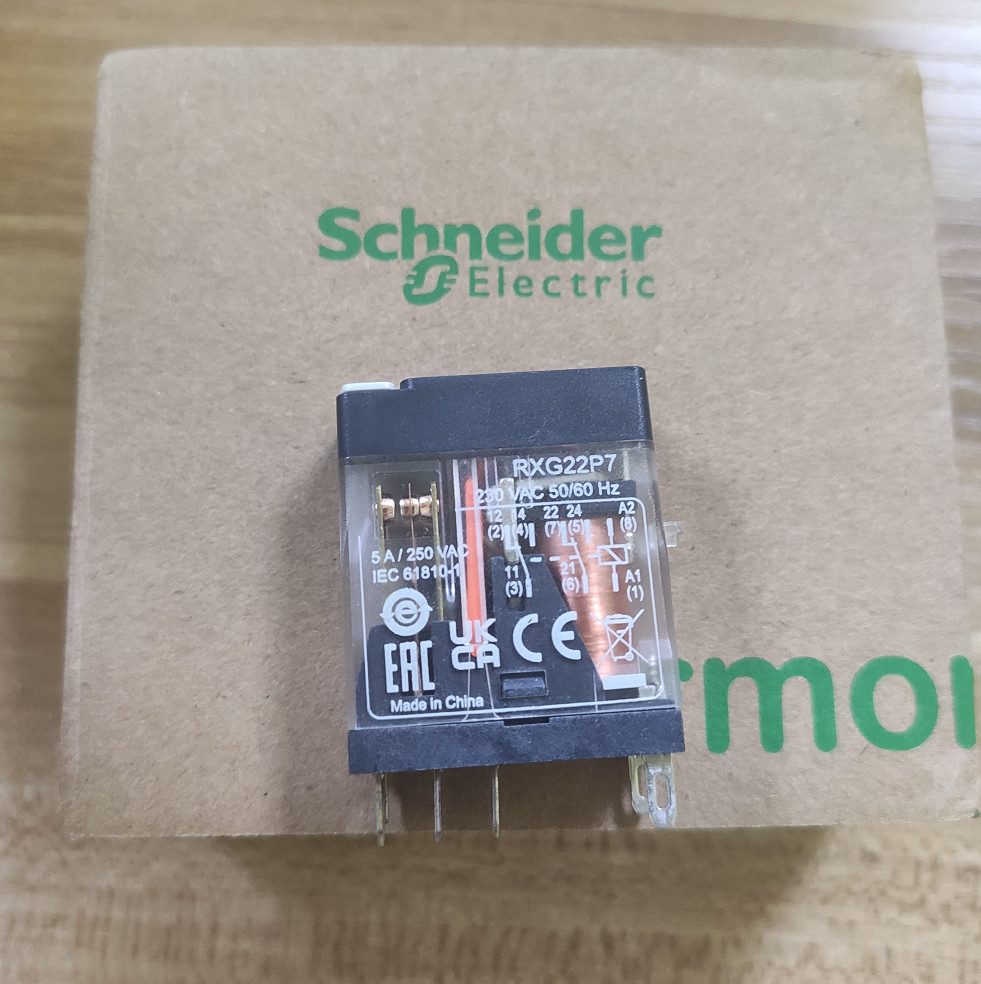

RXG22P7 Plug-in Interface Relay 230 VAC Schneider Electric




range of productHarmony Electromechanical Relays
series nameInterface relay
product or component typePlug-in relay
device short nameRXG
contacts type and composition2 C/O
Complementary
status LEDWith
contacts materialSilver alloy (AgSnO2In2O3)
Maximum contact resistance100 mOhm
[Ithe] conventional enclosed thermal current5 A at -40…55 °C
[Ie] rated operational current5 A at 30 V (DC) conforming to UL
5 A at 30 V (DC) conforming to IEC
5 A at 250 V (AC) conforming to IEC
5 A at 250 V (AC) conforming to UL
maximum switching voltage250 V AC
30 V DC
load current5 A at 250 V AC
maximum switching capacity1250 VA
minimum switching capacity50 mW at 10 mA, 5 V DC
operating rate<= 1800 cycles/hour under load
<= 18000 cycles/hour no-load
utilisation coefficient20 %
mechanical durability10000000 cycles
electrical durability100000 cycles for NO resistive load at 55 °C
100000 cycles for NC resistive load at 55 °C
[Ui] rated insulation voltage250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL
[Uimp] rated impulse withstand voltage6 kV 1.2/50 µs
dielectric strength1000 V AC between contacts with micro disconnection
5000 V AC between coil and contact with reinforced insulation
3000 V AC between poles with basic insulation
Coil resistance23500 Ohm +/- 15 %
insulation resistance1000 MOhm at 500 V DC
test levelsLevel A group mounting
mounting positionAny position
Average consumption in VA0.82 VA 60 Hz
drop-out voltage threshold>= 0.3 Uc AC
control circuit voltage limits0.8...1.1 Uc AC
Coil insulation classClass F
Operate time20 ms
Release time20 ms
[Uc] control circuit voltage230 V AC 50/60 Hz
safety reliability dataB10d = 100000
colour of coverStandard
control typeLockable test button
local signallingFlag
torque value0.8 N.m
net weight0.02 kg
device presentationComplete product
Environment
vibration resistance3 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)in operation
5 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)not in operation
IP degree of protectionIP40
shock resistance20 gn in operation
100 gn not in operation
protection categoryRT I
standardsCSA C22.2 No 14
UL 508
IEC 61810-1
product certificationsUL
EAC
CE
CSA
DNV-GL
pollution degree2
overvoltage categoryIII
ambient air temperature for storage-40…85 °C
ambient air temperature for operation-40…70 °C
relative humidity10…85 %
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Weight20.0 g
Package 1 Height12.67 mm
Package 1 width30.6 mm
Package 1 Length40.88 mm
Unit Type of Package 2BB1
Number of Units in Package 210
Package 2 Weight229.0 g
Package 2 Height3.5 cm
Package 2 width8.2 cm
Package 2 Length9.0 cm
Unit Type of Package 3S01
Number of Units in Package 3200
Package 3 Weight4.76 kg
Package 3 Height15.0 cm
Package 3 width15.0 cm
Package 3 Length40.0 cm


RXG22P7 Plug-in Interface Relay 230 VAC Schneider Electric


Schneider Electric RXG22P7 Harmony Electromechanical Relays 230 VAC 0

Schneider Electric, a global specialist in energy management and automation, has introduced its Zelio RXG interface relays, which are so easy to test and operate that users can do it with just one finger, to the southern African market.
Zelio RXG holds the distinction as the first relay in the market with a single-step lockable test button. With a fast-on pin terminal, it mounts quickly, while the slim 16mm socket for 2C/O saves PLC interface space.
The Zelio RXG is also the only range in the market to offer a complete range of coil voltage, from 6VDC to 110VDC, 24VAC to 230VAC. Furthermore, protection modules can be added (diode, diode and LED, RC circuit, varistor and LED).
According to Marc Ramsay, Industry vice president for southern Africa at Schneider Electric, Zelio RXG relays help manufacturing plants optimise their operations and reduce the risk of downtime.
“Thanks to its distinctive features and excellent performance, the Zelio RXG makes production easier, safer, and more reliable. In addition, it is a Green Premium product,” he adds.


Schneider Electric RXG22P7 Harmony Electromechanical Relays 230 VAC 1

  • Help to reduce the size of enclosures enabling it to be mount nearly everywhere

  • Provides economical solution for the implementation of many switching functions with large number of contacts
  • It is flexibility design for space-saving with 16mm width
  • Latest interface relay with single-step loackable testing function for user securey confident
  • Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs
  • Environmental performance of the product








Schneider Electric RXG22P7 Harmony Electromechanical Relays 230 VAC 2
