163189 Pneumatic Components Air Solenoid Valve CPV18-M1H-2X3-GLS-1/4

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Valve Function | 2x3/2, Closed, Monostable | Actuation Type | Electrical |
---|---|---|---|
Valve Size | 18 Mm | Standard Nominal Flow Rate | 1,600 L/min |
Pneumatic Working Port | G1/4 | Operating Voltage | 24V DC |
Operating Pressure | -0.9 Bar ... 10 Bar | ||
Highlight | Pneumatic Components Air Solenoid Valve,163189 Air Solenoid Valve,Electrical Air Control Solenoid G1/4 |
Product Description

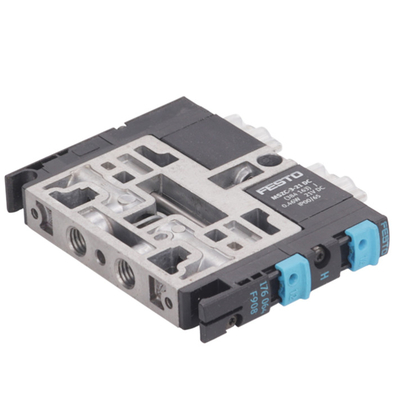

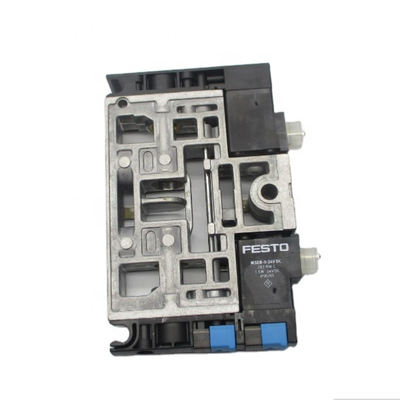

Germany Festo Pneumatic Components 163189 CPV18-M1H-2X3-GLS-1/4 Air Solenoid Valve
Description of Air solenoid valve CPV18-M1H-2X3-GLS-1/4 (163189)
Valve function | 3/2, closed, monostable |
Lap | Overlap |
Actuation type | Electrical |
Valve size | 18 mm |
Standard nominal flow rate | 1600 l/min |
Pneumatic working port | G1/4 |
Operating voltage | 24V DC |
Operating pressure | -0.9 bar ... 10 bar |
Design | Piston gate valve |
Reset method | Pneumatic spring |
Degree of protection | IP65 |
Certification | C-Tick |
Nominal width | 8 mm |
Type code | CPV18 |
Exhaust air function | Without flow control option |
Sealing principle | Soft |
Mounting position | Any |
Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled |
Pilot air supply port | External Internal |
Flow direction | Non-reversible |
Symbol | 00991808 |
Pilot pressure | 3 bar ... 8 bar |
b-value | 0.38 |
C value | 6.3 l/sbar |
Switching time off | 24 ms |
On switching time | 18 ms |
Duty cycle | 100% in combination with holding current reduction |
Electrical power consumption | 1.5 W |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Storage temperature | -20 °C ... 40 °C |
Temperature of medium | -5 °C ... 50 °C |
Ambient temperature | -5 °C ... 50 °C |
Product weight | 260 g |
Type of mounting | With through-hole |
Pilot air port 12/14 | Common port |
Pilot exhaust air port 82/84 | Common port |
Pneumatic connection 1 | Common port |
Pneumatic connection 11 | Common port |
Pneumatic connection 2 | G¼ |
Pneumatic port 3/5 combined | Common port |
Pneumatic connection 4 | G1/4 |
Note on materials | RoHS-compliant |
Seals material | HNBR NBR |
Housing material | Die-cast aluminum Brass POM PPS Steel |
Details of Air solenoid valve CPV18-M1H-2X3-GLS-1/4 (163189)
- Type code
- CPV18-M1H-2X3-GLS-1/4
- gtin
- 4052568012892
- presion
- -0.9 bar ... 10 bar
163189
New product
Specification
item
|
value
|
Warranty
|
1 year
|
Type
|
SOLENOID VALVES
|
Customized support
|
OEM, ODM
|
Place of Origin
|
Germany
|
Brand Name
|
Festo
|
Model Number
|
163189
|
Power
|
Solenoid
|
Media
|
Gas
|
Port Size
|
1/4" Quick connect fitting
|
Structure
|
Pilot
|
Valve function
|
2x3/2, closed, monostable
|
Actuation type
|
Electrical
|
Valve size
|
18 mm
|
Operating voltage
|
24V DC
|
Operating pressure
|
-0.09 MPa ... 1 MPa
|
Degree of protection
|
IP65
|
Pilot pressure
|
3 bar ... 8 bar
|
Electrical power consumption
|
1.5 W
|
Storage temperature
|
-20 °C ... 40 °C
|
Product weight
|
260 g
|
