2306b1000 2306b2000 MV Zareba Unipoint Controller 3 Wire With Din Rail Mounted

Place of Origin USA
Brand Name Honeywell
Certification CE
Model Number 2306B2000
Minimum Order Quantity 1
Price USD$360/PC
Packaging Details Carton
Delivery Time 5-10 Work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Customized Support OEM, ODM Type Gas Detector
Product Name Unipoint DIN Controller Operating Temp Range -10°C To +40°C / 14°F To 104°F
Operating Humidity Range 10 To 90%RH (non Condensing) Detector Type 2 Wire / 3 Wire
Highlight

DIN Rail Mounted mV Controller

,

Zareba Unipoint Controller

,

3 Wire Controller 2306b2000

You can tick the products you need and communicate with us in the message board.
Storage -25°C to +60°C / -13°F to +140°F, 20 to 80%RH (non condensing)
Supply 24Vdc
Output signal 4-20mA
Weight 225g (7.94 oz) - Controller only
Electrical Safety EN61010, UL61010b
Operating Pressure Range 90-110kPa
Leave a Message
Storage -25°C to +60°C / -13°F to +140°F, 20 to 80%RH (non condensing)
Product Description

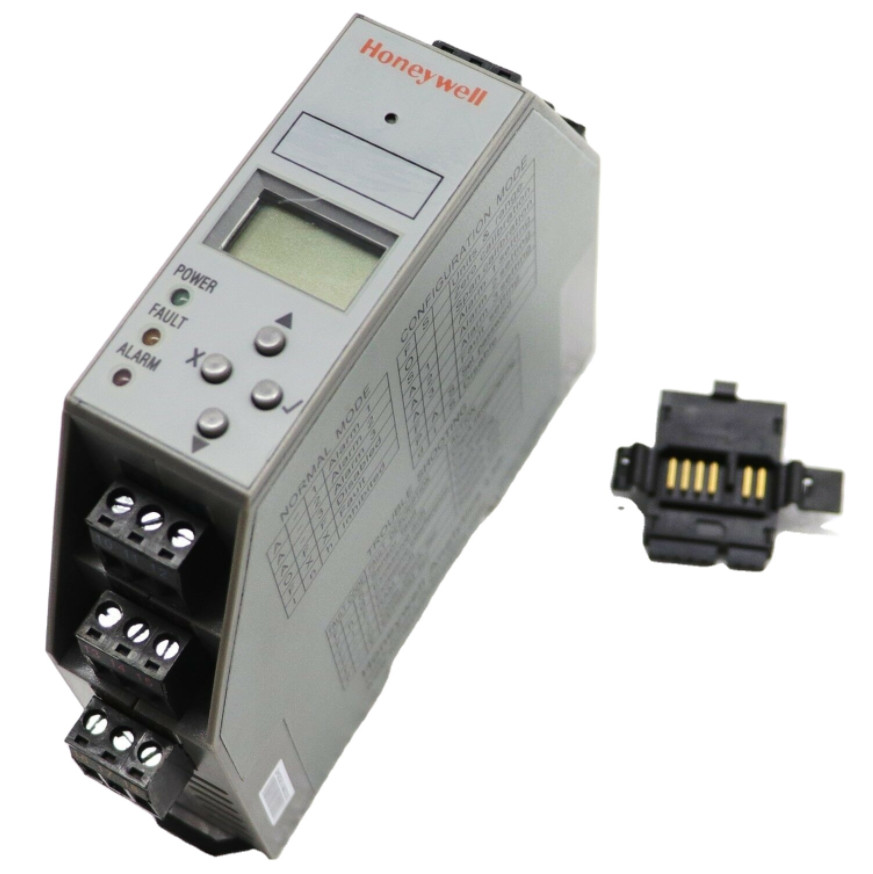

Honeywell Zareba Unipoint Controller 2306B1000 2306B2000 3 Wire Mv Bridge Controller With Simple DIN Rail Mounted











DIN rail mounted controller allows you to incorporate flammable, toxic or oxygen gas detection into control systems.

Product Overview:

Unipoint can be easily installed into any plastic or metal enclosure for use indoor or outdoors and even in potentially explosive atmospheres. With the addition of one of Honeywell Analytics' range of flammable, toxic or Oxygen detectors, systems may be configured to monitor gases in a wide range of applications from car parks and boiler houses to analyser shelters or crane cabs in offshore facilities.

Two versions of Unipoint are available: one for mV bridge, catalytic bead type, flammable gas detector and the other for any 2 or 3 wire 4-20mA type gas detector. Each Unipoint is easily installed onto the DIN rail via a special socket (provided) that also interconnects power to adjacent units. With removable terminal connectors, individual Unipoint controllers can be easily changed without disturbing other devices.

By clipping together multiple Unipoints small to medium sized monitoring solutions can be realised. Each unit includes built-in audio/visual alarms, three programmable alarm relays and a fault relay. Gas concentration and system status is displayed on the backlit LCD and each controller is fully user programmable via an intuitive, push button operated menu system. Configuration menus can be password protected to prevent unauthorised access. In addition remote inputs allow accept, reset and inhibit of alarms without the need to open the enclosure that the Unipoint is mounted in.

Additional Features and Benefits:

Typical Applications:

  • Small and medium integrated systems
  • Custom control cabinets and panels
  • Unmanned equipment rooms
  • Boiler houses
  • HVAC systems
  • Analyzer houses
  • Car parks
  • Crane cabs
  • Laboratories

User Friendly:

  • Ultra-clear backlit display
  • System status codes
  • Built-in audiovisual alarms
  • Intuitive menu system
  • Simple pushbutton operation
  • Remote accept, reset and inhibit inputs

Easy to Install:

  • TS35 (‘top hat’) DIN rail mounting
  • Removable terminal connectors
  • Easy access to all terminals
  • Additional units clip together

Comprehensive Operation:

  • 3 wire mV bridge, 2 and 3 wire 4-20mA inputs
  • DC operation
  • 3 x alarm relays
  • 1 x system fault relay
  • Field inhibit input (mA versions)

Flexible Operation:

  • Fully user programmable scale, units and calibration
  • Relays configurable as energized, de-energized, latching or non-latching, alarm relay on/off delay
  • Compatible with a wide range of gas detectors

Features & Benefits:

  • User friendly with ultra-clear backlit display
  • TS35 (‘top hat’) DIN rail mounting
  • Compatible with a wide range of gas detectors



Specification:

item
value
Warranty
1 Year
Type
gas detector
Customized support
OEM, ODM
Place of Origin
USA
Brand Name
Honeywell
Model Number
2306B2000
Product name
Unipoint DIN controller
Weight
225g (7.94 oz) - Controller only
Operating Temp Range
-10°C to +40°C / 14°F to 104°F
Operating Humidity Range
10 to 90%RH (non condensing)
Operating Pressure Range
90-110kPa
Storage
-25°C to +60°C / -13°F to +140°F, 20 to 80%RH (non condensing)
Supply
24Vdc
Detector Type
2 wire / 3 wire
Output signal
4-20mA
Electrical Safety
EN61010, UL61010b
